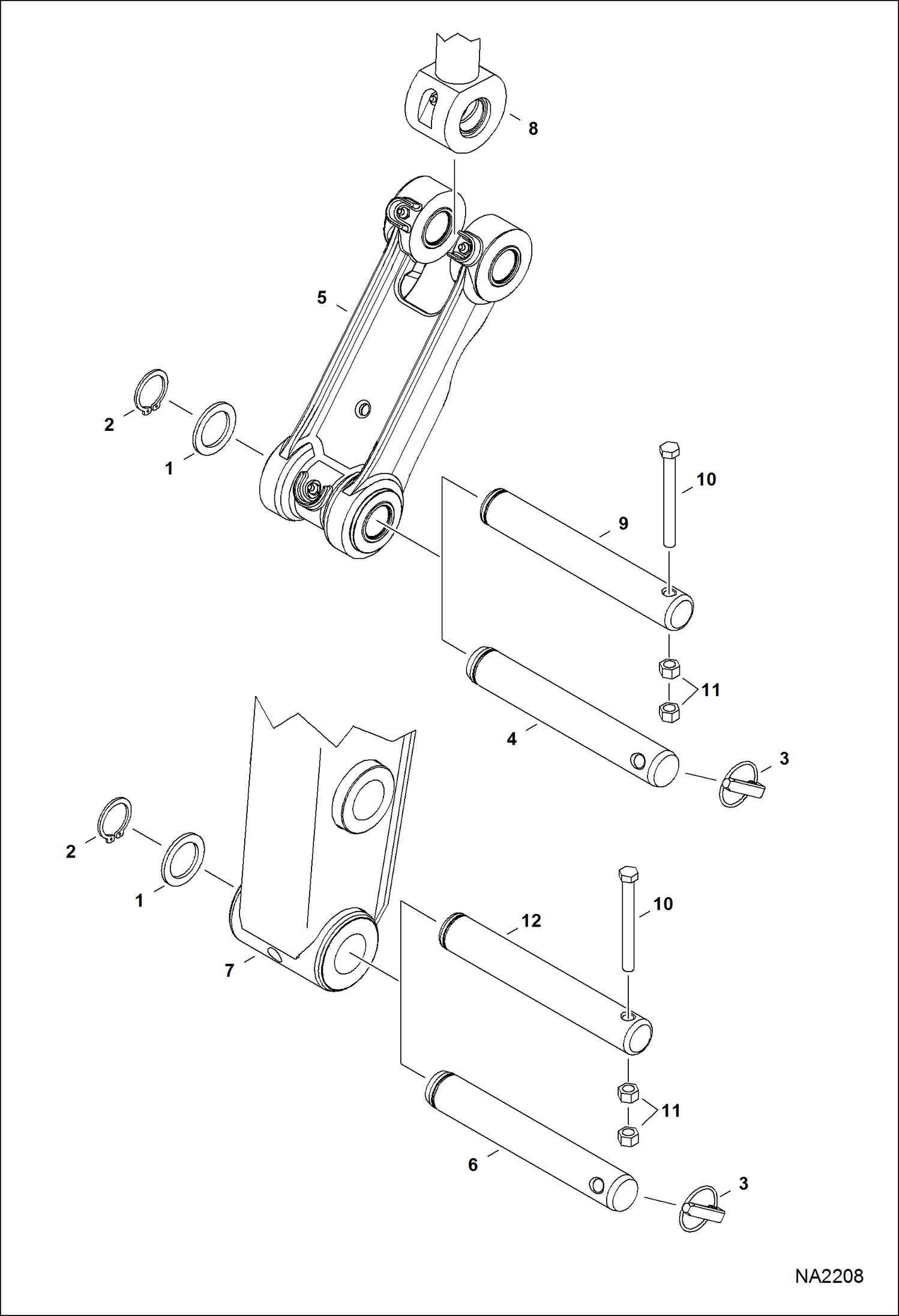

1
6534111
WASHER
2
6534154
RING
3
6560382
PIN, LOCK
4
7128920
PIN 9.35'' (237,5 mm) long
5
7154147
LINK, PIN-ON See Illustration BUCKET LINK/ NA2207 - not for extendable arm
6
7128920
PIN 9.35'' (237,5 mm) long
6
7157744
PIN, PIVOT CLAMP 14.82'' (376.5 mm) long - see clamp attachment
7
ARM See Illustration ARM/ NA2034
8
CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ PE3928
9
7181216
PIN, PIVOT X-CHANGE 9.82'' (249,5 mm) long
9
7157744
PIN, PIVOT CLAMP 14.82'' (376.5 mm) long - see clamp attachment
10
7CM1080
BOLT
11
4DM10
NUT
12
7181216
PIN, PIVOT X-CHANGE 9.82'' (249,5 mm) long
