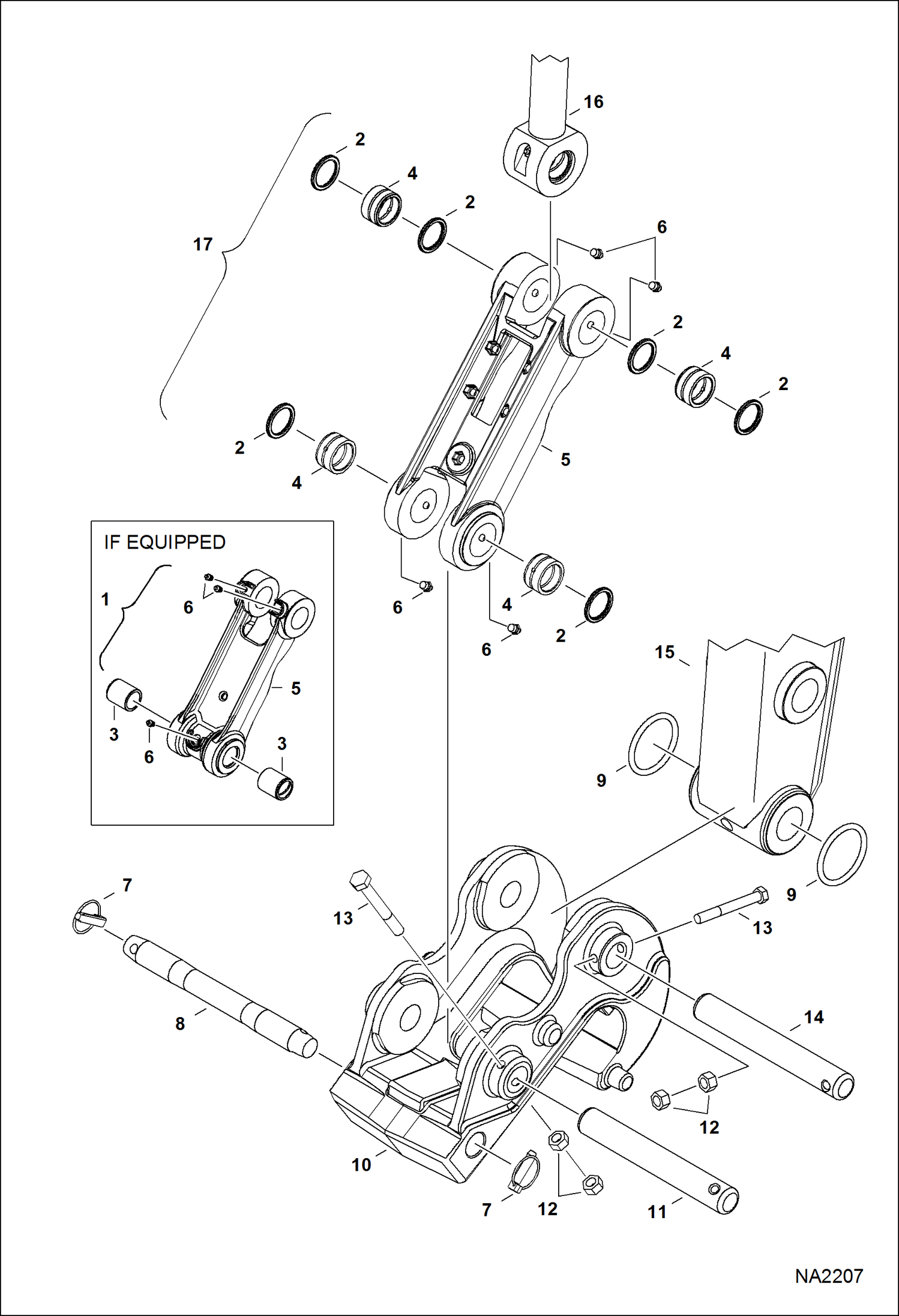

Запчасти Bobcat E32 BUCKET LINK (Pin-On X-Change) WORK EQUIPMENT

1

7154147

LINK, PIN-ON Ref. 2-6 - not for extendable arm

1

LINK, HYD X-CHANGE See Illustration X-CHANGE/ NA2301

2

6652915

SEAL, OIL

3

6803213

BUSHING, PRESS FIT

4

6803309

BUSHING, PRESS FIT

5

LINK NLA - Order Ref. 1

6

10H25

FITTING, GREASE 5

7

6560382

PIN, LOCK

8

7137214

PIN

9

7143561

O-RING 3.23'' (81,9 mm) ID

9

7143562

O-RING 2.73'' (69,2 mm) ID

10

7150798

X-CHANGE, PIN-ON

10

X-CHANGE, HYD See Illustration X-CHANGE/ NA2301

11

7181216

PIN, PIVOT X-CHANGE Was 7151836 - A

12

43DM10

NUT

13

7CM1080

BOLT

14

7181216

PIN, PIVOT X-CHANGE 9.82'' (249.5 mm) long - Was 7151836 - A

14

7157744

PIN, PIVOT CLAMP 14.82'' (376.5 mm) long - see clamp attachment

15

ARM See Illustration ARM/ NA2034

16

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ PE3928
