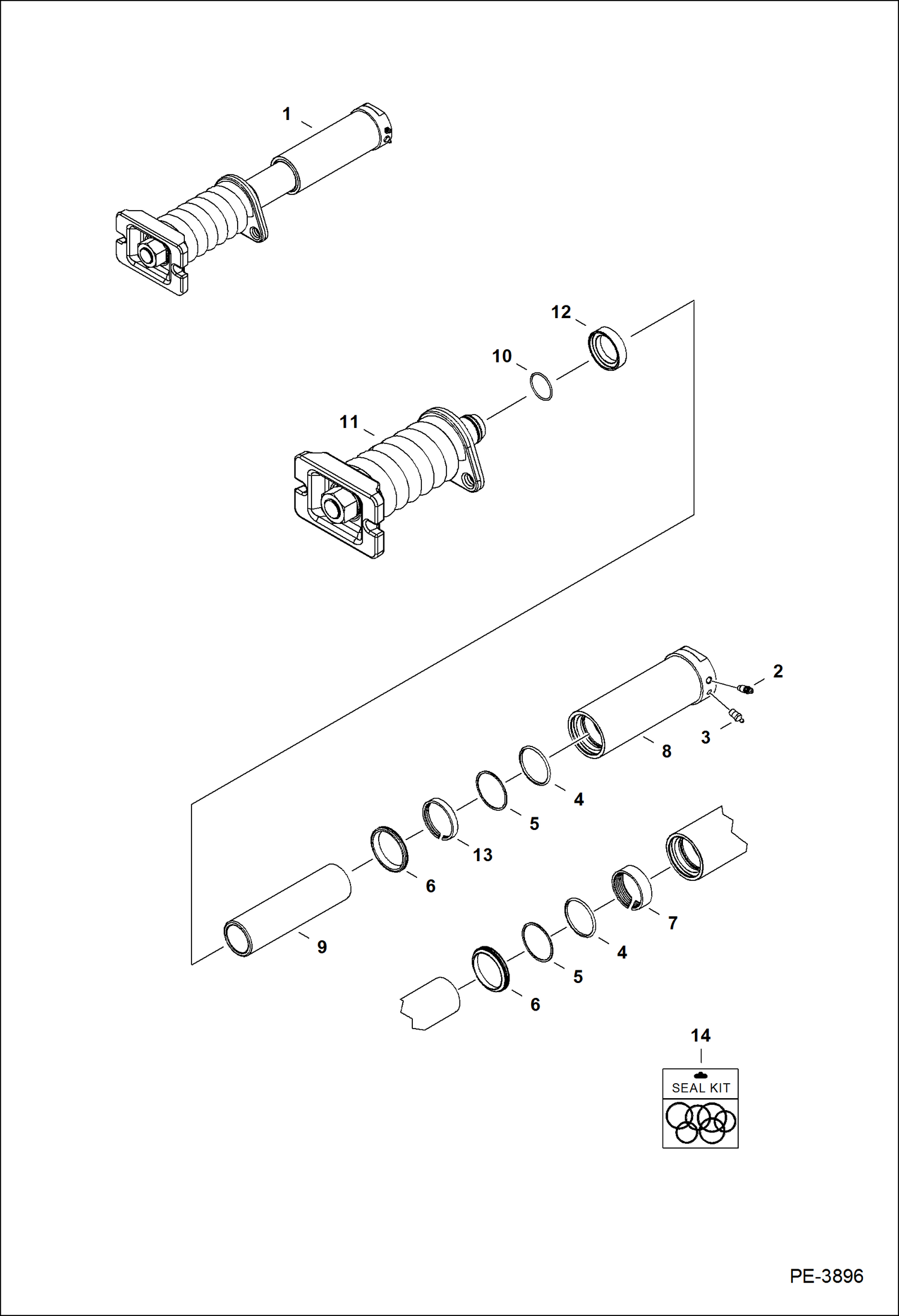

Запчасти Bobcat E32 TRACK TENSIONER UNDERCARRIAGE

1

TENSIONER, TRACK ASSY NLA - Ref. 2-11 - Order 7181324 tensioner - Also Order Ref. 12 for steel tracks - Was 7143366 - A

1

7181324

TENSIONER, TRACK ASSY Ref. 2-6, 8-11, & 13 - Also Order Ref. 12 for steel tracks

2

6645812

SCREW, BLEED

3

6655752

FITTING 68,900 kpa (10,000 psi) - DO NOT SUBSTITUTE

4

6672338

O-RING

5

6685154

RING, BACK-UP

6

6686968

SEAL, WIPER ROD

7

7000773

RING, WEAR .75'' (19,05 mm) wide - Use W/Ref. 1(NLA/ 7143366 tensioner)

8

TUBE, GREASE NLA - Use W/Ref. 7 - Order 7180324 tube and Ref. 14 - Was 7135353 - A

8

7180324

TUBE, GREASE Use W/Ref. 13

9

7135356

SHAFT, CHROME

10

25K30118

O RING 10

11

SPRING ASSY NLA - Order Ref. 1

12

7164410

SPACER Use for steel tracks only - not included in Ref. 1

13

6688839

WEAR RING 9,53 mm (0.38'') wide - Use W/Ref. 1 (7181324 tensioner)

14

7163219

KIT, SEAL Ref. 4-7 & 13
