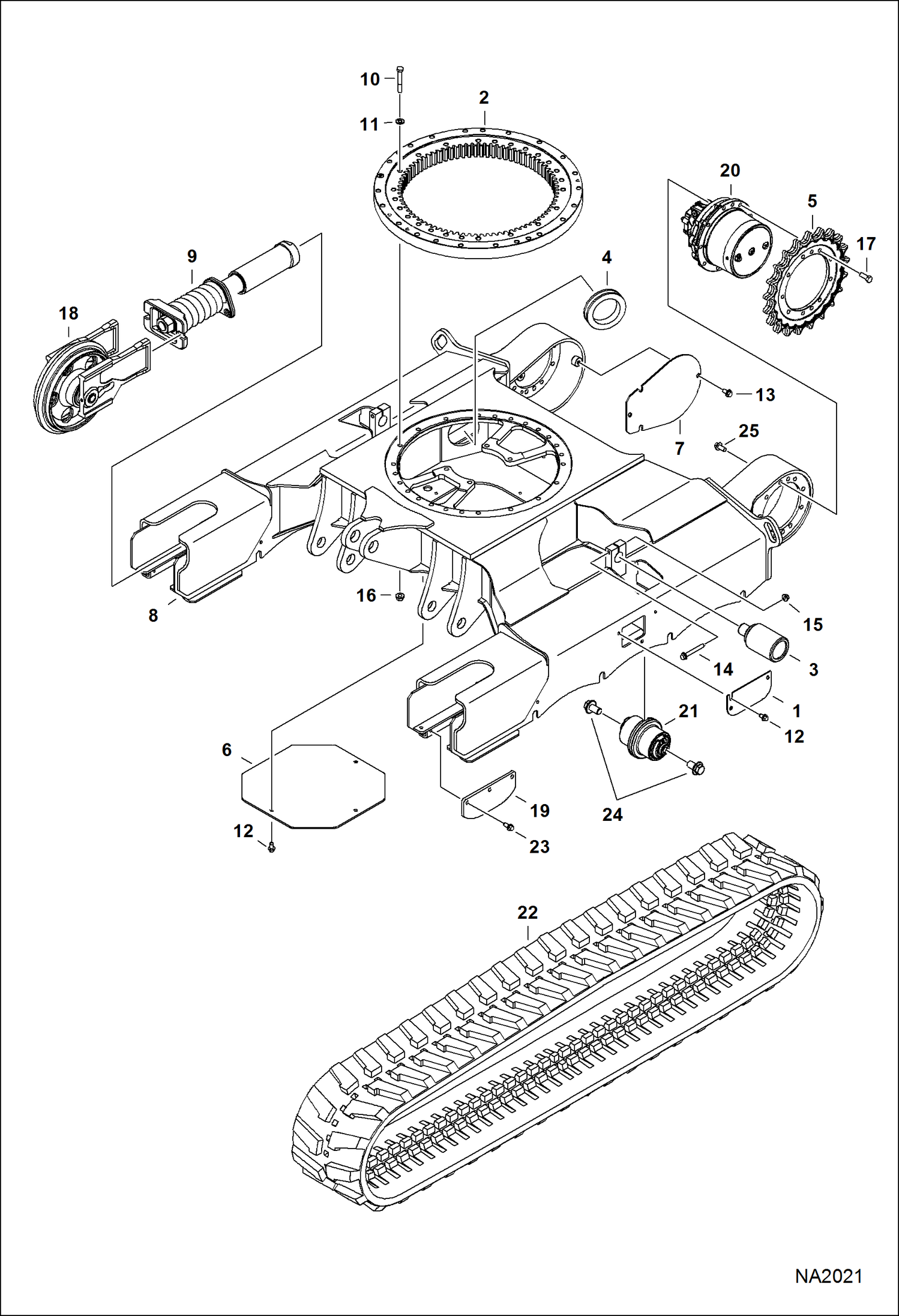

Запчасти Bobcat E32 UNDERCARRIAGE UNDERCARRIAGE

1

6596723

COVER

2

6692964

RING, SLEW

3

7020867

ROLLER, TRACK Was 6692966 - B

4

7127210

GROMMET

5

7199006

SPROCKET, MACHINED Was 7142235 - A

6

7142236

COVER, ACCESS

7

7142237

COVER, MOTOR

8

7185037

UNDERCARRIAGE Was 7142292 - A

9

TENSIONER, TRACK ASSY See Illustration TRACK TENSIONER/ PE3896 Was 7143366 - A

10

7161099

BOLT

11

18EM1224

WASHER

12

26GM10020

BOLT

13

29CM1020

BOLT

14

29CM1080

SCREW

15

51DM10

NUT

16

51DM12

NUT

17

55CM1230

SCREW

18

IDLER ASSY See Illustration FRONT IDLER/ PE1801

19

6596396

PLATE guide - steel track

20

MOTOR, TRAVEL See Illustration TRAVEL MOTOR/ NA2091

21

TRACK ROLLER See Illustration TRACK ROLLER/ NA2024

22

TRACK, RUBBER See Illustration TRACKS/ NA6192

22

TRACK, STEEL See Illustration TRACKS/ NA2026

23

26GM10025

SCREW

24

7011925

BOLT

25

7162236

SCREW
