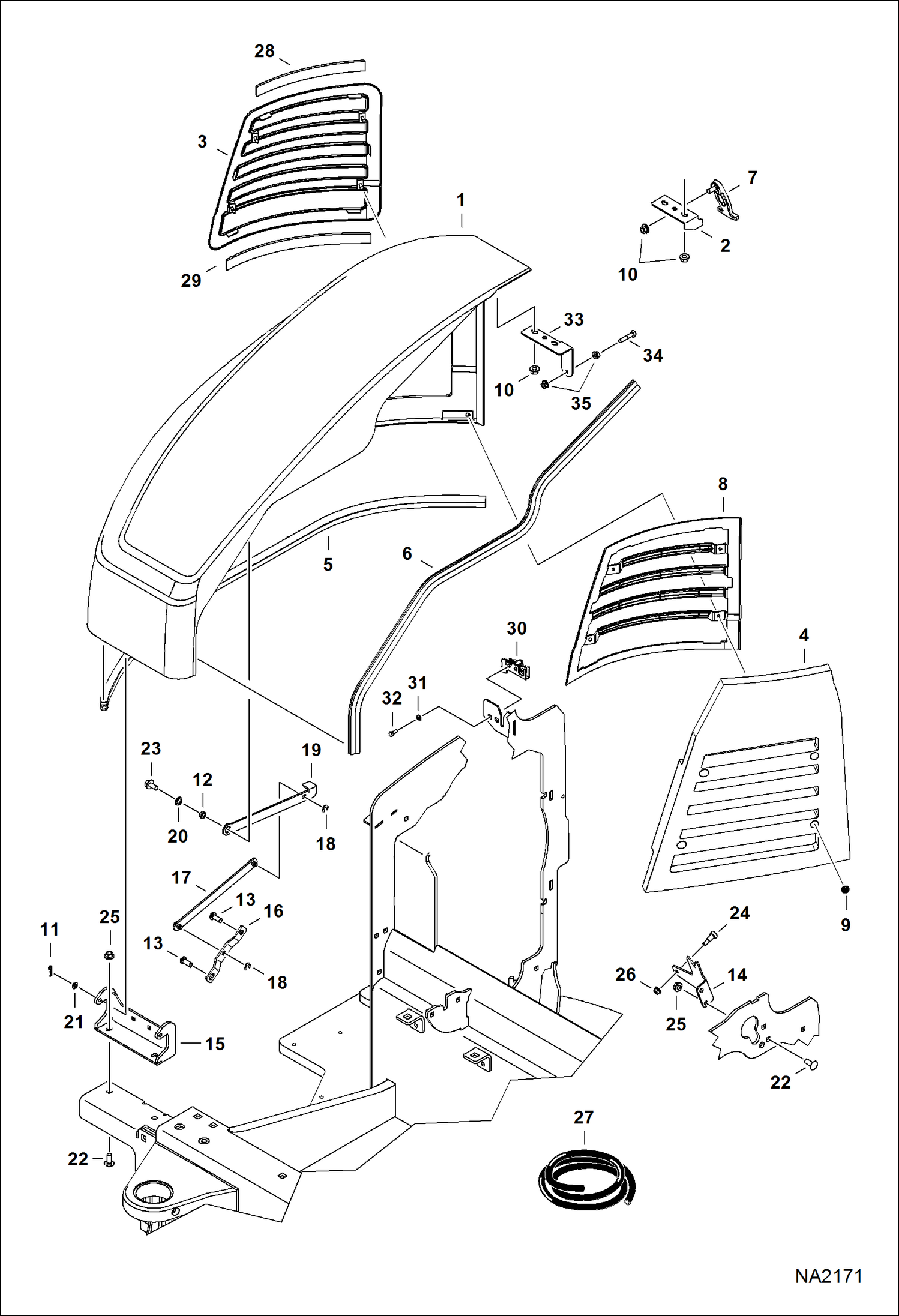

Запчасти Bobcat E32 RH COVER (W/ Link Hold Open) MAIN FRAME

1

COVER, RH See BTI425 - Was 7148124 - A

2

7148129

BRACKET, LATCH

3

7148282

SCREEN, OUTER

4

7168805

INSULATION, GRILL if equipped

5

SEAL NLA - if equipped - 51'' (1294 mm) long - Order Ref. 27

6

SEAL NLA - 47.75'' (1213 mm) long - Order Ref. 27

7

7170424

LATCH, COVER

8

7171223

SCREEN, INNER

9

7173153

NUT

10

51DM10

NUT

11

6513495

COTTER PIN

12

6810385

BUSHING

13

6817769

BOLT

14

7147283

BRACKET, LATCH

15

7148098

HINGE, COVER

16

7165414

BRACKET

17

7170445

LINK

18

7170446

PIN, RETAINER

19

7176094

LINK

20

15EM120

WASHER

21

15EM80

WASHER

22

28CM1025

BOLT

23

29CM1020

BOLT

24

38CM1016

BOLT, SHOULDER

25

43DM10

NUT

26

43DM8

NUT

27

7160901

SEAL, BULB bulk - sold per foot

28

7184201

TAPE 12'' (305 mm) long

29

7184202

TAPE 15'' (381 mm) long

30

7017782

LATCH, COVER

31

18EM613

WASHER

32

1CM616

SCREW

33

7215932

MOUNT, STRIKER

34

1CM840

BOLT

35

43DM8

NUT
