Запчасти Bobcat E32 INSULATION (S/N A94H11001 - 16242, AC2N11001 & Above) MAIN FRAME

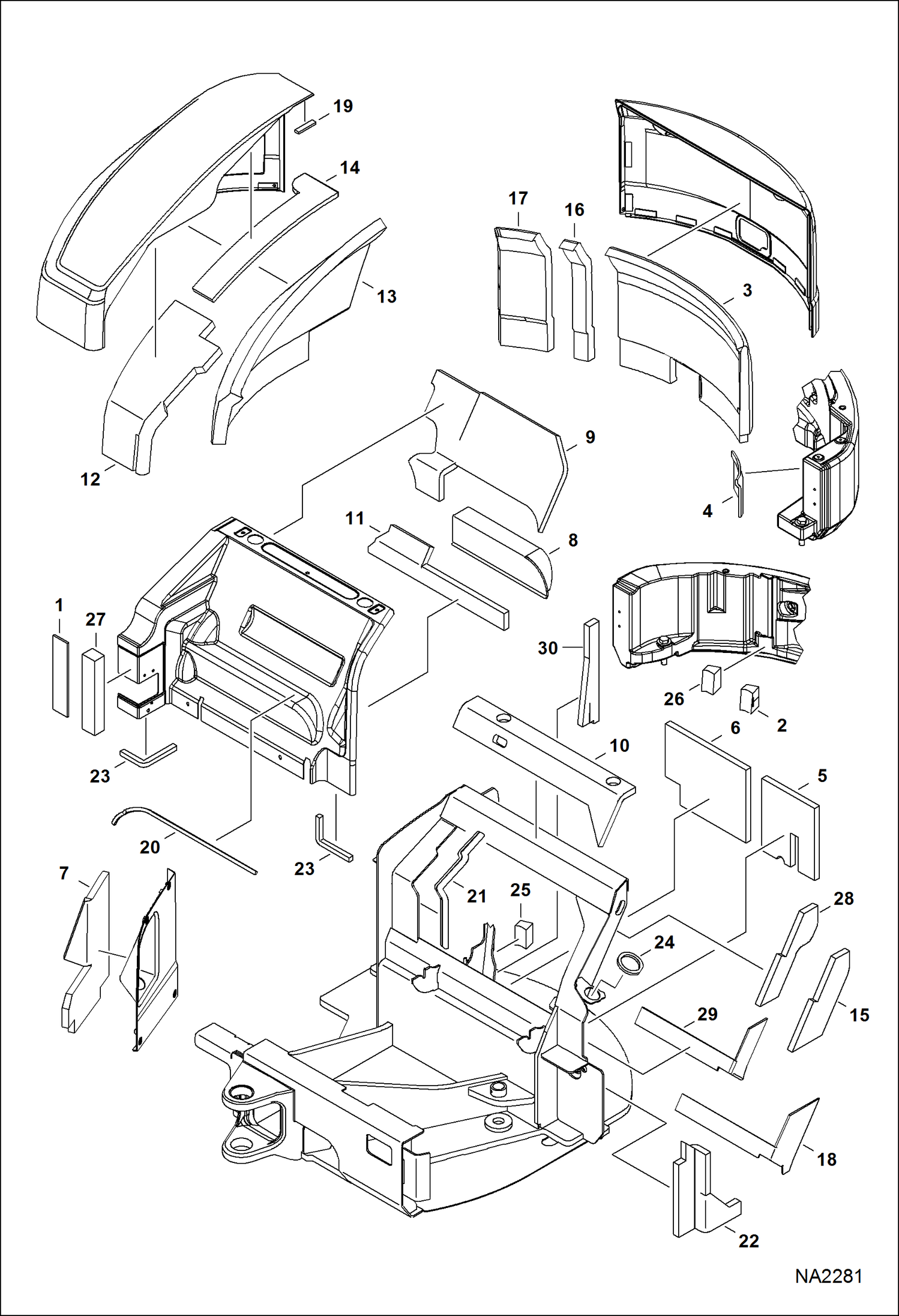

Схема запчастей Bobcat E32 - INSULATION (S/N A94H11001 - 16242, AC2N11001 & Above) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7156375

SEAL, RH PANEL 19 mm (.75'') thick

2

SEAL, HOSE NLA - Order Ref. 25 & 26 - Was 7156862 - A

3

7159174

INSULATION, DOOR REAR

4

7159175

INSULATION, REAR DOOR

5

7159239

INSULATION, ENG

6

7159258

INSULATION, ENG

7

7159354

INSULATION, PANEL LH

8

7159358

INSULATION, PANEL ENG

9

7159359

INSULATION, PANEL ENG

10

7159457

INSULATION, ENG

11

7159467

INSULATION, ENG

12

7168803

INSULATION, COVER RH

13

7168804

INSULATION, COVER RH

14

7168806

INSULATION, COVER RH

15

INSULATION, ENG NLA - Order Ref. 28 - Was 7168814 - A

16

7169594

SEAL, RADIATOR

17

7169595

INSULATION, DOOR REAR

18

INSULATION, ENG NLA - Order Ref. 29 - Was 7170733 - A

19

7170795

SEAL, COVER

20

7172738

SEAL, ENG

21

7174487

SEAL, BULB

22

7174494

INSULATION, ENG

23

7175504

SEAL, ENG

24

7176171

INSULATION, PANEL LH

25

7181883

INSULATION, BLOCK

26

7181884

INSULATION, BLOCK if equipped

27

7237649

FOAM, HVAC 51 mm (2'') thick

28

7240857

INSULATION, ENG

29

7240858

INSULATION, ENG

Выбрано товаров: 29
