Запчасти Bobcat E32 CANOPY (S/N A94H11001 - 16999, AC2N11001 - 14999) MAIN FRAME

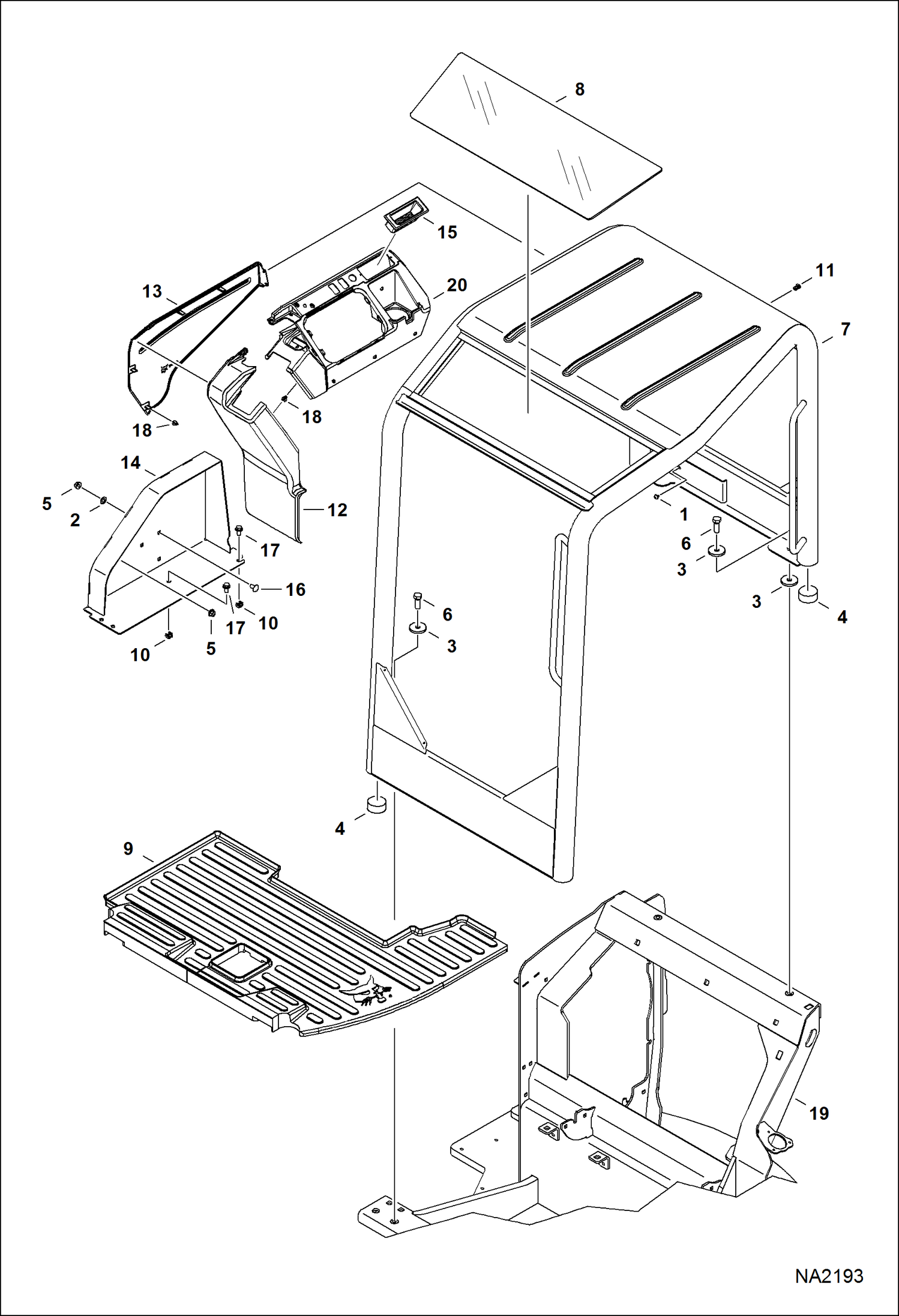

Схема запчастей Bobcat E32 - CANOPY (S/N A94H11001 - 16999, AC2N11001 - 14999) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6589675

SCREW

2

6674264

RETAINER NUT

3

6805244

WASHER

4

6816135

INSULATION

5

43DM10

NUT

6

7CM1440

BOLT

7

KIT, CANOPY See BTI429 - NLA - Was 7221994 - A

7

6990467

INSTRUCTIONS

8

7143481

WINDOW, CANOPY TOP

8

6808882

ADHESIVE, URETHANE 10.5 fluid oz.

8

7102268

PRIMER 4.2 fluid oz.

9

7153688

MAT, FLOOR CANOPY

10

7155411

NUT

11

7160383

RIVET, BIRD CAGE

12

7165566

COVER, RH

13

7165567

COVER, RH

14

7170762

PANEL, RH

15

7171397

CONTAINER, STORAGE

16

28CM1020

BOLT

17

29CM1025

BOLT Was 29CM1020 - A

18

7165333

CLIP

19

UPPERSTRUCTURE See Illustration UPPERSTRUCTURE/ NA2188

20

COVER, RH See Illustration CONTROL CONSOLE/ NA2251

Выбрано товаров: 23
