Запчасти Bobcat E32 OPERATOR CAB (RH Window)(Slider) MAIN FRAME

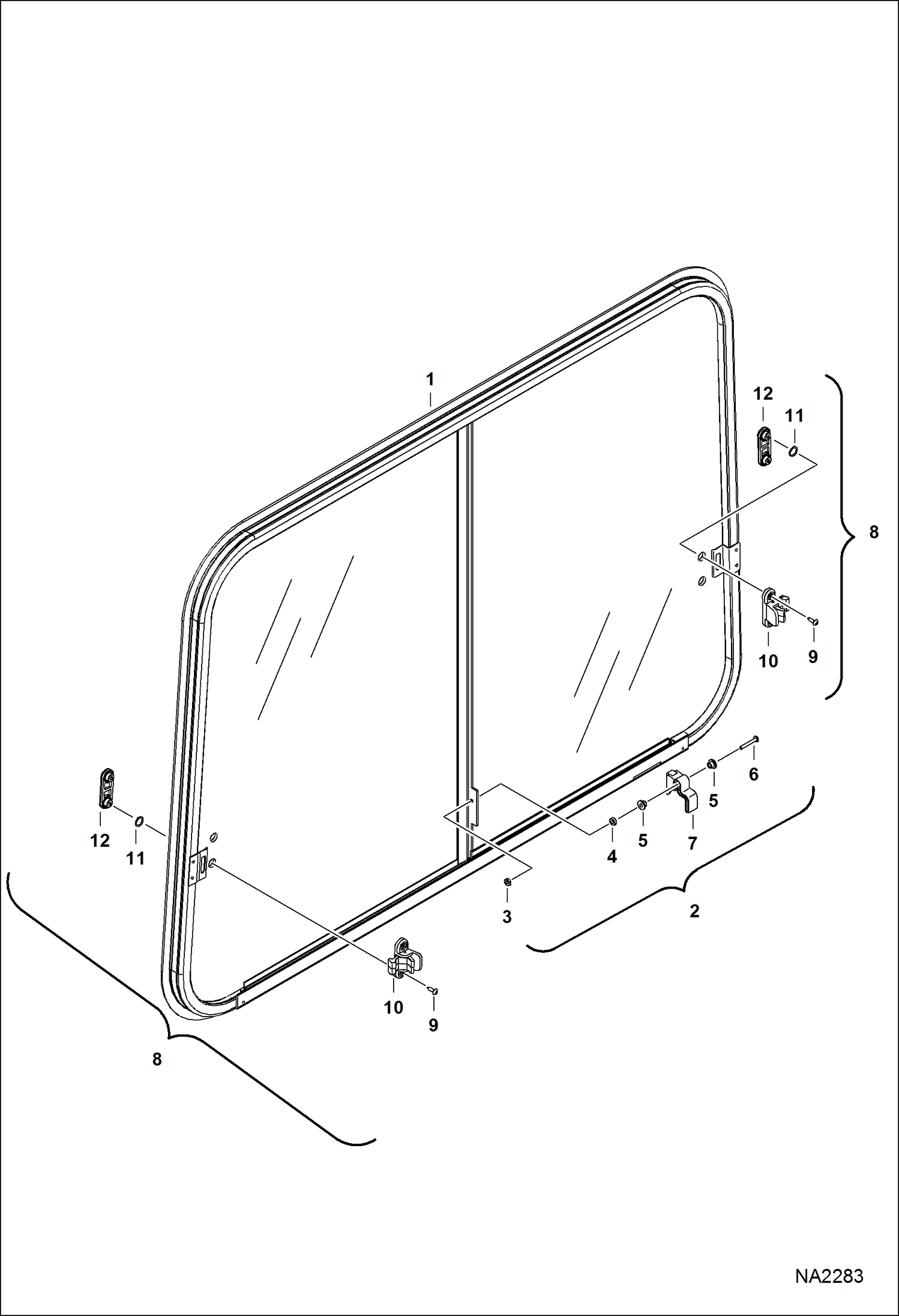

Схема запчастей Bobcat E32 - OPERATOR CAB (RH Window)(Slider) MAIN FRAME

Артикул

Название

Примечание

Количество

1

WINDOW, CAB SLIDING NLA - Ref. 2-12 - glass and other parts not shown are NSS - Was 7166474 - A

1

7237363

WINDOW, CAB SLIDING Ref. 8-12

2

7010509

LATCH, WINDOW CAB Ref. 3-7 - if equipped

3

7010605

NUT

4

7010606

WASHER

5

7010607

SPACER

6

7010608

SCREW

7

7010609

LATCH, WINDOW CAB

8

7010510

LATCH, WINDOW CAB Ref. 9-12

9

7010505

SCREW

10

7010506

LATCH

11

7010507

O-RING

12

7010508

CATCH, LATCH

Выбрано товаров: 13
