Запчасти Bobcat E32 OPERATOR CAB (Front Window) (W/Frame) MAIN FRAME

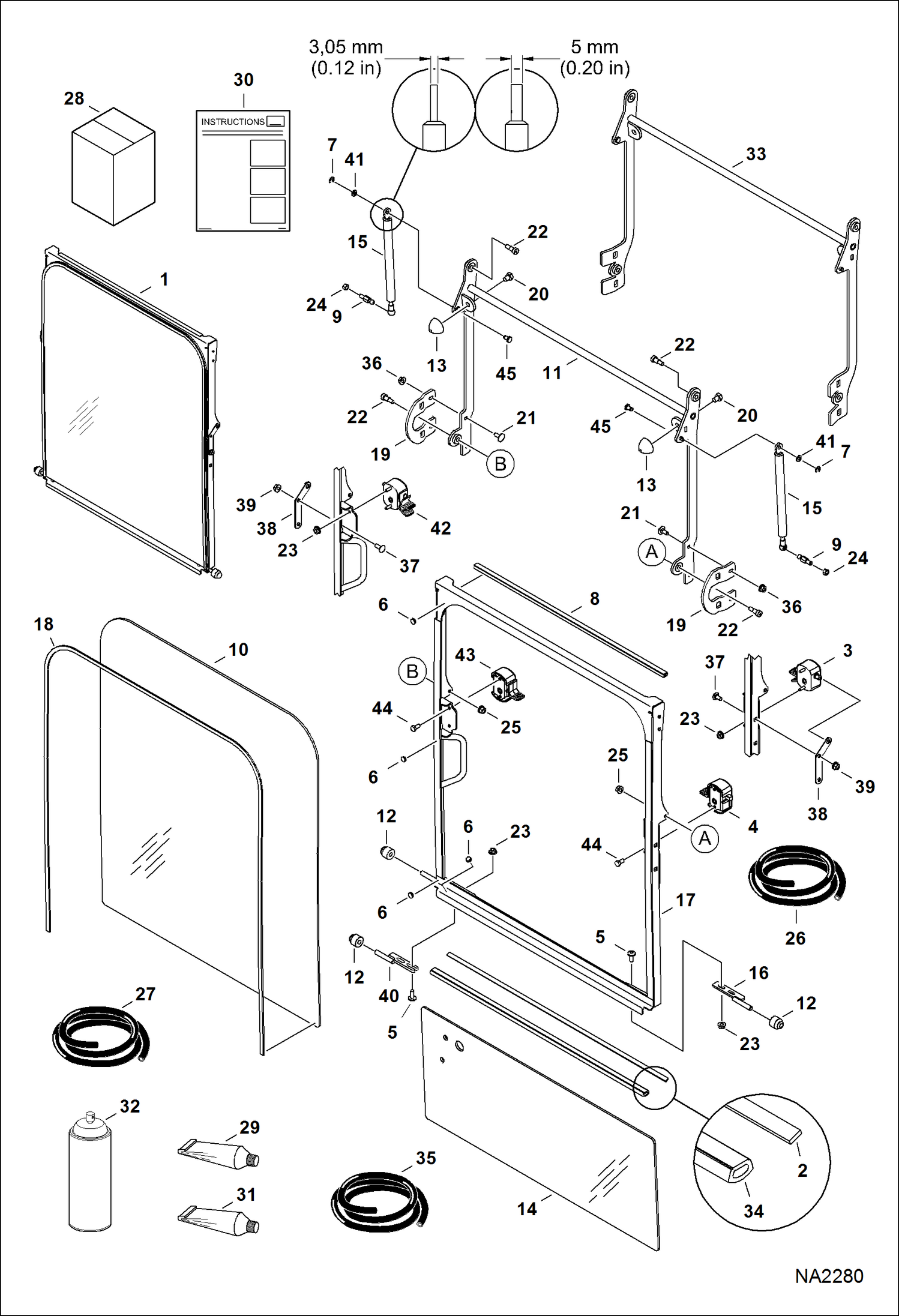

Схема запчастей Bobcat E32 - OPERATOR CAB (Front Window) (W/Frame) MAIN FRAME

Артикул

Название

Примечание

Количество

1

WINDOW, CAB FRONT NLA - Ref. 2-25, & 36-39 - Was 7155916 - A

1

KIT, WINDOW NLA - Order components - Ref. 2, 4-6, 8, 10, 12, 16-18, 23, 25, 40, 43 & 44 - Was 7215893 - A

1

6990363

INSTRUCTIONS

2

SEAL, WINDOW NLA - flat - 711 mm (28'') long - Order Ref. 26 - Used on new design of Ref. 17 W/angled bottom crossmember (shown)

3

LATCH, LH See BTI416 - W/round pin

4

7023294

LATCH, LH W/square pin

5

6803202

SCREW

6

7101512

BUMPER

7

9JM60

PIN, RETAINER

8

TRIM, WINDOW NLA - 616 mm (24.2'') long - Order Ref. 27

9

7177735

STUD, BALL JOINT

10

WINDOW, FRONT NLA - Order Ref. 28 - Was 7178678 - D

11

LINK, WINDOW FRONT See BTI416 NLA - Was 7194753 - A

11

7220258

LINK, WINDOW FRONT

12

7178689

ROLLER

13

7178702

BUMPER, RUBBER

14

7179045

WINDOW, CAB LOWER

15

7179320

GAS SPRING 3,05 mm (.12'') base end - must use in matching pairs

15

7209896

GAS SPRING 5 mm (.20'') base end - must use in matching pairs

16

MOUNT, ROLLER See BTI416

16

7214569

MOUNT, ROLLER

17

7220029

FRAME, WINDOW FRONT

18

SEAL, WINDOW NLA - 90.5'' (2300 mm) long - Order Ref. 26

19

PLATE, LATCH See BTI416 NLA - Was 7183988 - A

19

7194706

PLATE, LATCH Use W/Ref. 11

20

1CM1012

SCREW

21

28CM620

BOLT CARRIAGE 8.8 6 mm thread - Was 21CM616 - B

21

28CM820

BOLT 8 mm thread

22

38C608

SCREW

23

51DM6

NUT

24

53DM8

NUT

25

83D5

NUT 5

26

6648416

SEAL BULK /FT bulk - sold per foot

27

6682492

TRIM bulk - sold per foot

28

7185152

KIT, WINDOW *SEE NOTE* Ref. 6, 10, 29, & 30 - Also Order Ref. 31 & 32

29

6808882

ADHESIVE, URETHANE

30

6989489

INSTRUCTIONS

31

7102268

PRIMER

32

7110861

CLEANER

33

LINK, WINDOW FRONT NLA - Order Ref. 11 & 19 - Was 7178682 - D

34

SEAL, WINDOW NLA - rounded - 27.25'' (692 mm) long - Order Ref. 35 - Used on original design of Ref. 17 W/flat channel bottom crossmember (not shown)

35

7173999

SEAL, BULK, BULB bulk - sold per foot

36

51DM6

NUT 6 mm thread

36

51DM8

NUT 8 mm thread

37

28CM816

BOLT carriage - if equipped

37

33GM816

BOLT torx - if equipped

38

7192212

BRACKET, LATCH if equipped - Use W/NLA latch W/round pin only

39

51DM8

NUT 8 mm thread

40

MOUNT, ROLLER See BTI416

40

7214570

MOUNT, ROLLER

41

15EM80

WASHER if equipped

42

LATCH, RH See BTI416 - W/round pin

43

7023293

LATCH, RH W/square pin

44

1CM612

BOLT Use W/square pin latch
