Запчасти Bobcat E32 OPERATOR CAB (Door) MAIN FRAME

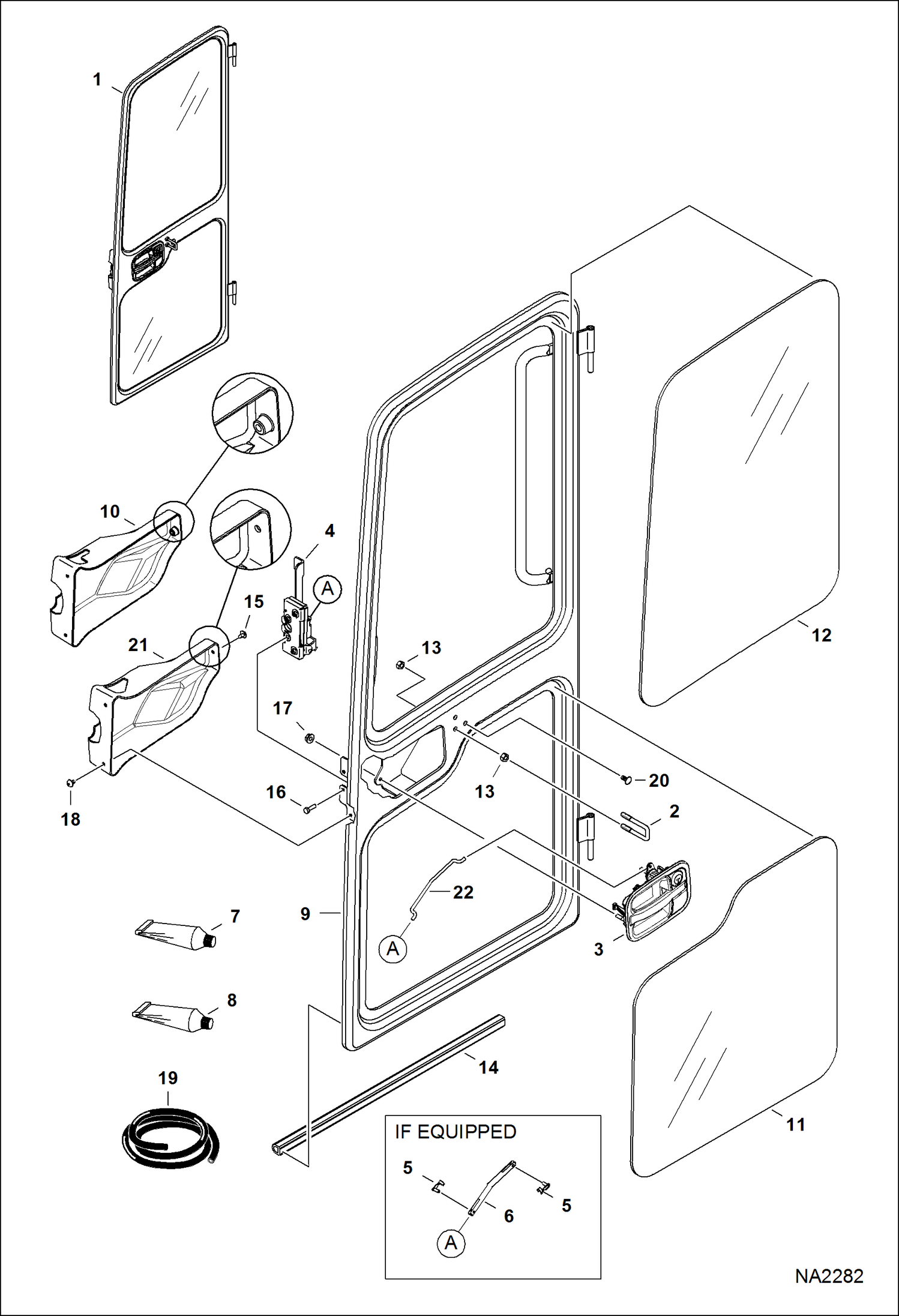

Схема запчастей Bobcat E32 - OPERATOR CAB (Door) MAIN FRAME

Артикул

Название

Примечание

Количество

1

7157151

DOOR, CAB ASSY Ref. 2-21

2

6698504

U-BOLT

3

7008365

HANDLE, DOOR CAB does not include key - Uses ignition key

4

7008366

LATCH, DOOR CAB

5

CLIP, DOOR CAB NLA - Was 7008367 - Order Ref. 22 - A

6

ROD NLA - Was 7008368 - Order Ref. 22 - A

7

6808882

ADHESIVE, URETHANE

8

7102268

PRIMER

9

FRAME, DOOR CAB NLA - Was 7168014 - A

10

COVER, LATCH See BTI405 NLA - Was 7170112 - A

11

7170289

WINDOW, DOOR CAB LOWER

12

7170290

WINDOW, DOOR CAB UPPER

13

7170874

NUT

14

SEAL, BULB NLA - 574 mm (22.6'') long - Order Ref. 19

15

7175050

SCREW Use W/Ref. 10

15

6589675

SCREW Use W/Ref. 21

16

1CM620

BOLT

17

51DM6

NUT

18

6589675

SCREW

19

7174361

SEAL, BULK bulk - sold per foot

20

7012810

PLUG

21

7189891

COVER, LATCH

22

7222013

LINK

Выбрано товаров: 23
