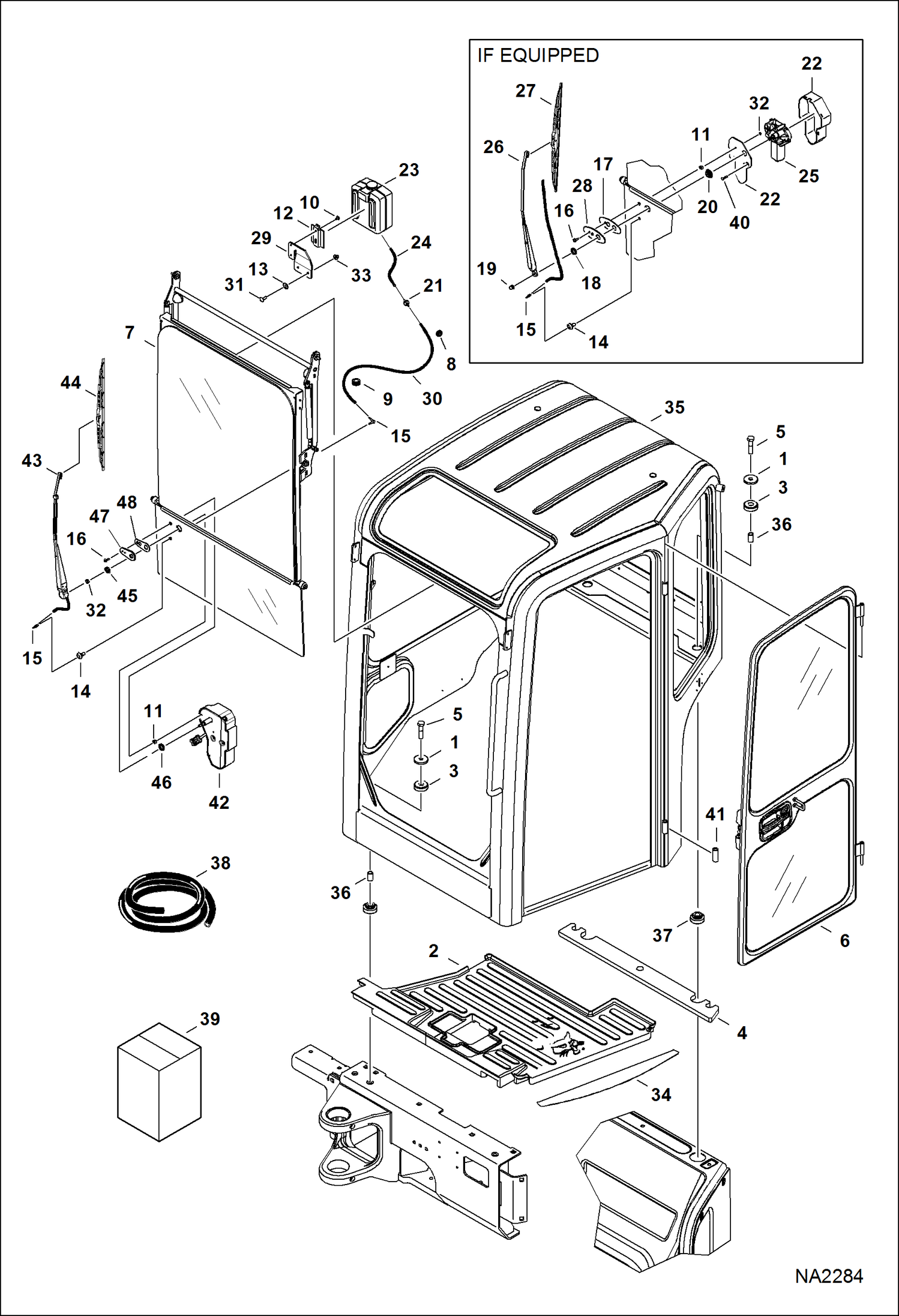

Запчасти Bobcat E32 OPERATOR CAB (Mounting, Front Window, & Door) MAIN FRAME

1

6805244

WASHER

2

7145801

MAT, FLOOR

2

7232439

MAT, FLOOR

3

MOUNT, CAB NLA - flat - Order Ref. 39 - Was 7176021 - A

4

7171323

SEAL, CROSSMEMBER

5

7CM1460

SCREW

6

7157151

DOOR, CAB ASSY See Illustration OPERATOR CAB/ NA2282

7

WINDOW, CAB FRONT See Illustration OPERATOR CAB/ NA2280

8

515069

GROMMET

9

6587887

GROMMET

10

6589675

SCREW

11

6664085

BUSHING

12

6664557

BRACKET

13

6675859

RETAINER

14

6676499

GROMMET

15

6676917

ELBOW

16

6677837

BOLT

17

6677839

GASKET

18

6677842

NUT

19

6677843

NUT

20

6677847

GROMMET

21

6682462

VALVE

22

6685140

COVER

23

6691499

TANK ASSY W/ 6664554 pump

23

6664554

PUMP, WIPER WASHER

24

HOSE, WIPER SHORT NLA - 4'' (102 mm) long - Order Ref. 38

25

7008934

MOTOR, WIPER

26

7008936

ARM, WIPER

27

7008937

BLADE, WIPER WINDOW

28

7009047

PLATE

29

7220329

BRACKET, TANK Was 7172778 - A

30

HOSE, WASHER NLA - 30.32'' (770 mm) long - Order Ref. 38

31

28CM820

BOLT

32

4DM5

NUT

33

51DM8

NUT

34

7180283

TREAD, SAFETY

35

CAB, W/A NLA - Was 7190136 - A

35

KIT, CAB See BTI429 - NLA - Was 7184146 - A

35

7240688

KIT, CAB Includes top, side, & rear windows & 6989497 instruction - Order decals as needed - Also Order 7223420 frameless window kit if replacing cab W/framed window

35

6989497

INSTRUCTIONS

35

KIT, CAB See BTI429 - NLA - Was 7221992 - A

35

7240692

KIT, CAB Includes decals and 6990465 instruction

35

6990465

INSTRUCTIONS

36

TUBE NLA - Order Ref. 39 - Was 7176022 - A

37

MOUNT, CAB NLA - W/ lip - Order Ref. 39 - Was 7176023 - A

38

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

39

7174043

MOUNT, LOAD ISOLATOR ASSY Ref. 3, 36, & 37 - includes 1 assy

40

6681911

SCREW

41

6719341

HINGE
