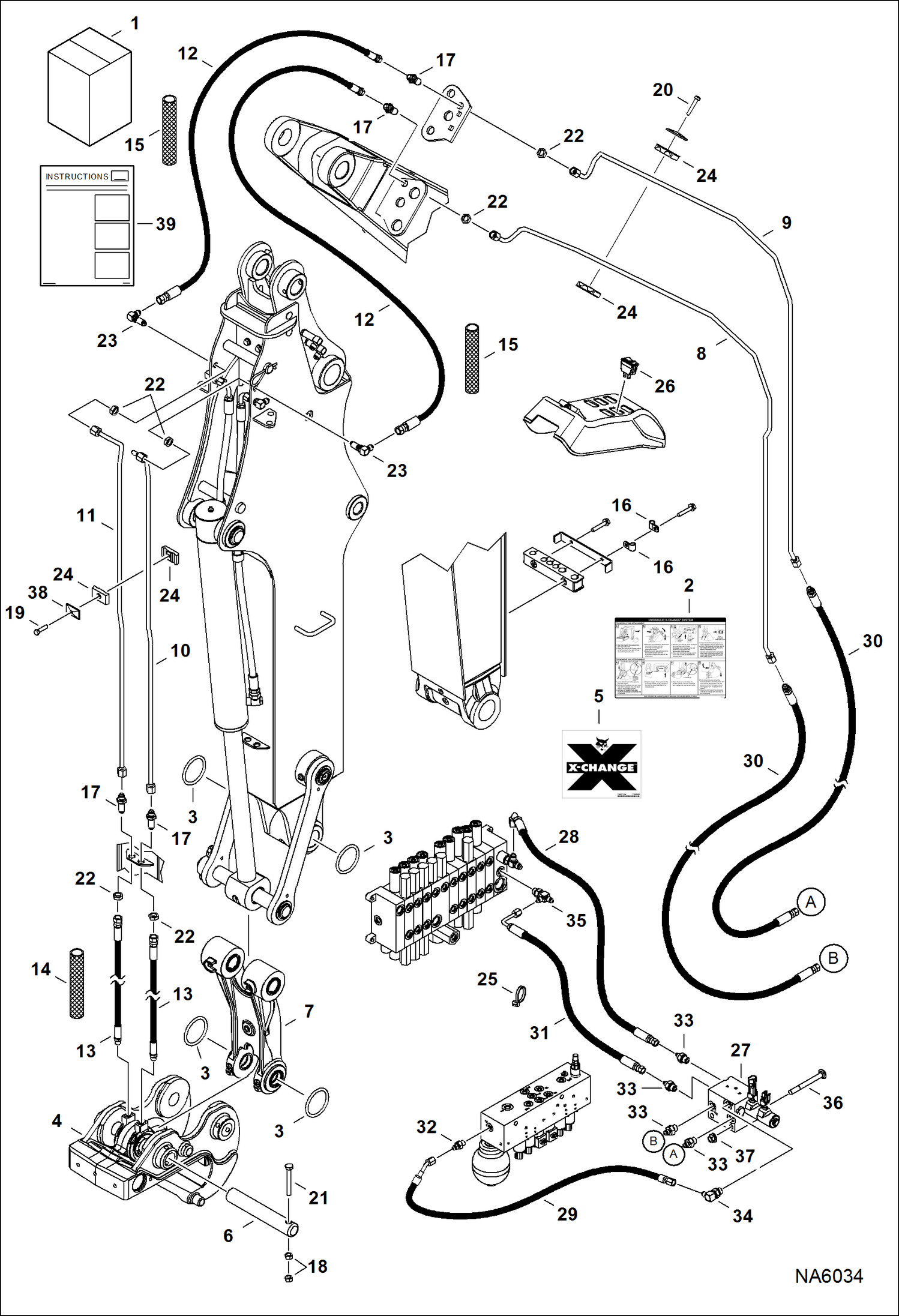

Запчасти Bobcat E32 X-CHANGE (Hydraulic) (Extendable Arm) (Kit) ACCESSORIES & OPTIONS

1

7203210

KIT, X-CHANGE HYD EXT Ref. 2-39

2

7134587

DECAL, X-CHANGE using hydraulic X-Change W/retainer pin - not in kit

2

7220131

DECAL, X-CHANGE using hydraulic X-Change W/O retainer pin - text

3

7143562

O-RING

4

7155425

X-CHANGE, HYD See Illustration X-CHANGE/ NA2302

5

7160881

DECAL, X-CHANGE

6

7181216

PIN, PIVOT X-CHANGE

7

7194411

LINK, HYD X-CHANGE See Illustration X-CHANGE/ NA2302

8

7198291

TUBELINE, HYD

9

7198292

TUBELINE, HYD

10

7198344

TUBELINE, HYD

11

7198345

TUBELINE, HYD

12

7200260

HOSE, HYD

13

7209105

HOSE, HYD Was 7200261 - A

14

7200266

GUARD, FABRIC

15

7201520

GUARD, FABRIC

16

30H22

CLIP

17

45K5

FITTING

18

4DM10

NUT

19

53CM835

SCREW

20

59CM870

BOLT, FLANGE

21

7CM1080

BOLT

22

86F5

NUT

23

88F5

ELBOW

24

6664381

CLAMP

25

6624289

STRAP, TIE

26

6688667

SWITCH

27

7008786

MANIFOLD, HYD ASSY See Illustration X-CHANGE/ NA2303

28

7169846

HOSE, HYD ASSY

29

7180613

HOSE

30

7180686

HOSE

31

7184883

HOSE, HYD ASSY

32

15KB0404

FTG HYD S Connector

32

79K4

O RING 10

33

15KB0406

FTG HYD S CONNECTOR

33

79K6

O RING 10

34

17KB0406

FITTING, HYD ELBOW

34

79K6

O RING 10

35

21KB0406

FTG HYD STRAIGHT TEE

35

79K6

O RING 10

36

28CM10100

BOLT

37

43DM10

NUT

38

6652521

PLATE

39

6987434

INSTRUCTIONS
