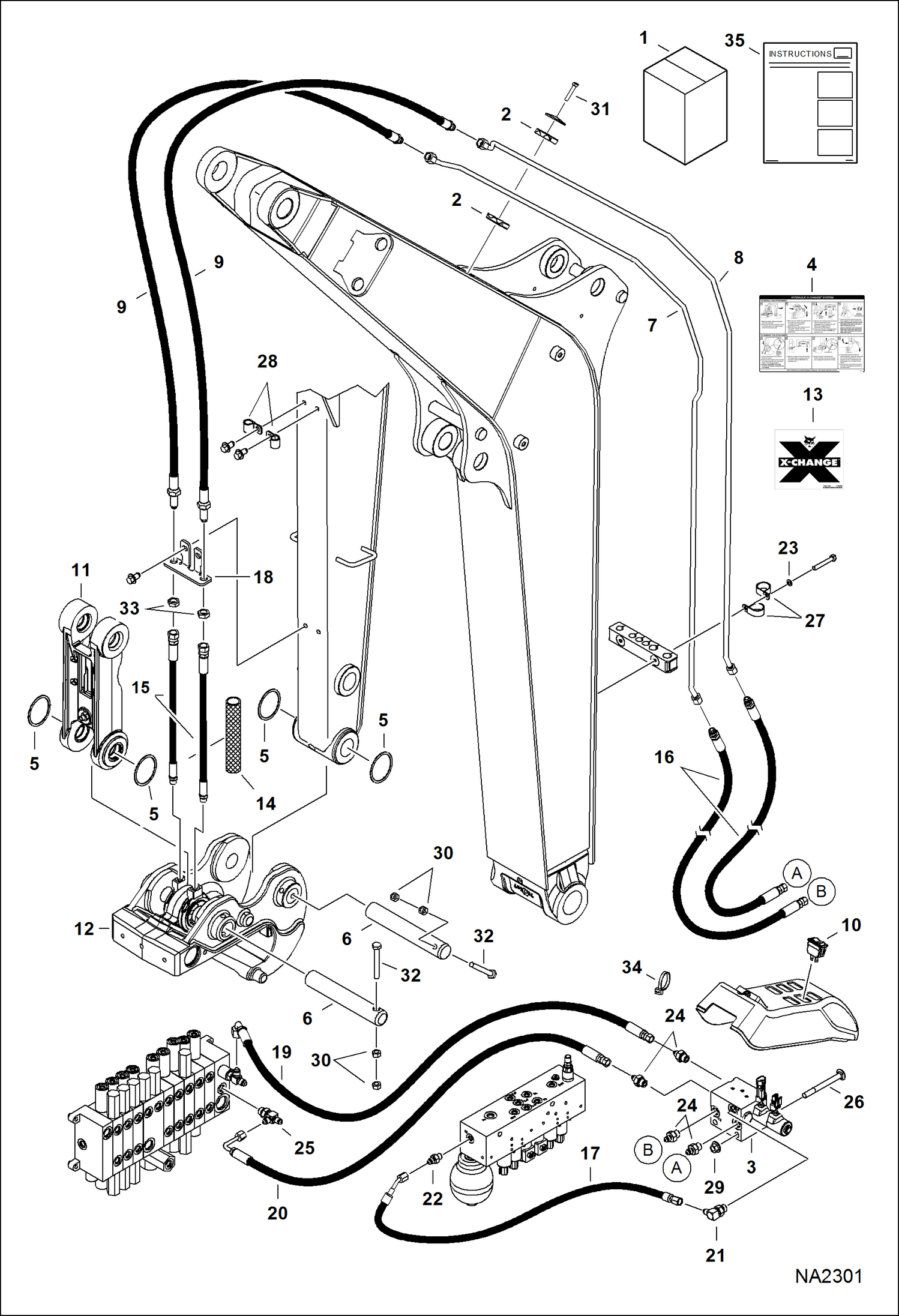

Запчасти Bobcat E32 X-CHANGE (Hydraulic) (Kit) ACCESSORIES & OPTIONS

1

7178042

KIT, X-CHANGE HYD Ref. 2-35

2

6664381

CLAMP

3

7008786

MANIFOLD, HYD ASSY See Illustration X-CHANGE/ NA2303

4

7134587

DECAL, X-CHANGE using hydraulic X-Change W/retainer pin - text - not in kit

4

7220131

DECAL, X-CHANGE using hydraulic X-Change W/O retainer pin - text

4

7220130

DECAL, X-CHANGE using hydraulic X-Change W/O retainer pin - No-text

5

7143562

O-RING

6

7181216

PIN, PIVOT X-CHANGE

7

7152985

TUBELINE, HYD

8

7152986

TUBELINE, HYD

9

7154056

HOSE, HYD ASSY for standard arm

9

7154057

HOSE, HYD ASSY for long arm

10

6688667

SWITCH

11

7154148

LINK, HYD X-CHANGE See Illustration X-CHANGE/ NA2302

12

7155425

X-CHANGE, HYD See Illustration X-CHANGE/ NA2302

13

7160881

DECAL, X-CHANGE

14

7161761

GUARD, FABRIC

15

7164281

HOSE, HYD ASSY

16

7180686

HOSE

17

7180613

HOSE

18

7167535

BRACKET

19

7169846

HOSE, HYD ASSY

20

7184883

HOSE, HYD ASSY Was 7169847 - A

21

17KB0406

FITTING, HYD ELBOW

21

79K6

O RING 10

22

15KB0404

FTG HYD S Connector

22

79K4

O RING 10

23

15EM80

WASHER

24

15KB0406

FTG HYD S CONNECTOR

24

79K6

O RING 10

25

21KB0406

FTG HYD STRAIGHT TEE

25

79K6

O RING 10

26

28CM10100

BOLT

27

30H22

CLIP

28

30H35

CLAMP 10

29

43DM10

NUT

30

4DM10

NUT

31

59CM870

BOLT, FLANGE Was 53CM870 - B

32

7CM1080

BOLT

33

86F5

NUT

34

6624289

STRAP, TIE

35

6987434

INSTRUCTIONS
