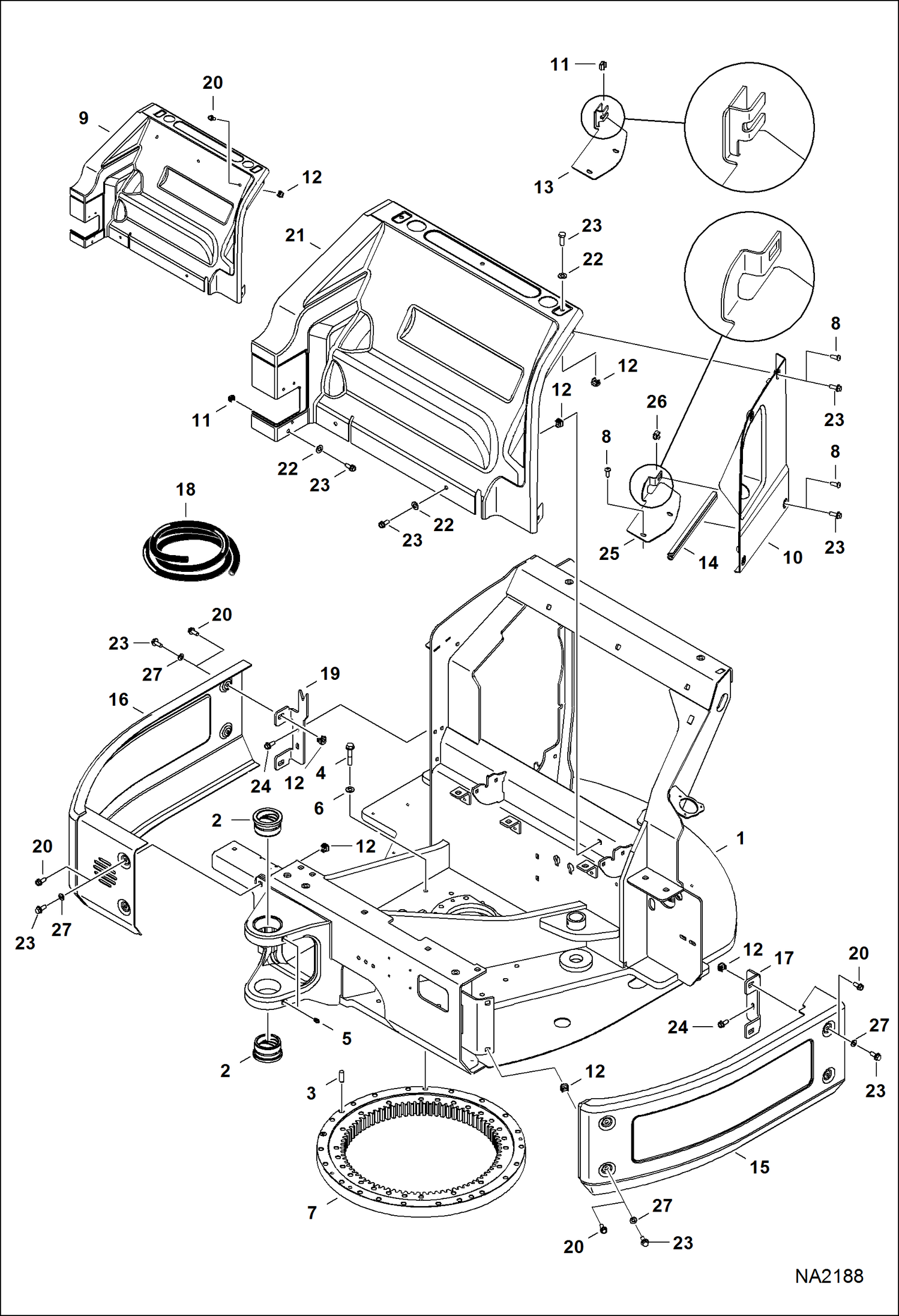

Запчасти Bobcat E32 UPPERSTRUCTURE MAIN FRAME

1

UPPERSTRUCTURE NLA - Order 7192780 upperstructure and (2) 7188531 hinges - Was 7146202 - A

1

7231067

UPPERSTRUCTURE Was 7220816 - A

2

BUSHING See Illustration BOOM SWING FRAME/ NA2070 for replacement parts listed but not shown on this illustration - NLA - Order (2) each of 7206220 pin, 7206221 bushing, & 7206222 bushing - Was 714417

2

7206221

BUSHING, PIVOT

3

7171260

PIN, PARALLEL

4

7171918

SCREW

5

10H25

FITTING, GREASE 5

6

18EM1224

WASHER

7

6692964

RING, SLEW

8

6817769

BOLT

9

7148283

PANEL, ENGINE

10

7148574

COVER, LH

11

7155411

NUT

12

7155413

NUT

13

COVER, LH NLA - Use W/Ref. 11 - Order Ref. 25 & 26 - Was 7169475 - A

14

SEAL NLA - 15'' (381 mm) long - Order Ref. 18

15

7148372

CHANNEL, LH

16

7148408

CHANNEL, ASSY RH

17

7164453

BRACKET, COVER SIDE

18

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

19

7176296

BRACKET, COVER SIDE

20

7009798

SCREW

21

7187133

PANEL, ENGINE

22

15EM100

WASHER Used W/bolt W/O flange - Was 1EM100 - A

23

29CM1025

BOLT Was 1CM1025 - B

24

29CM1025

BOLT Was 7009798 - A

25

7204458

COVER, LH Use W/Ref. 26

26

7024737

NUT Use W/Ref. 25
