Запчасти Bobcat E32 LOAD HOLD OPTION (Boom) (S/N AC2N13084 & Above) ACCESSORIES & OPTIONS

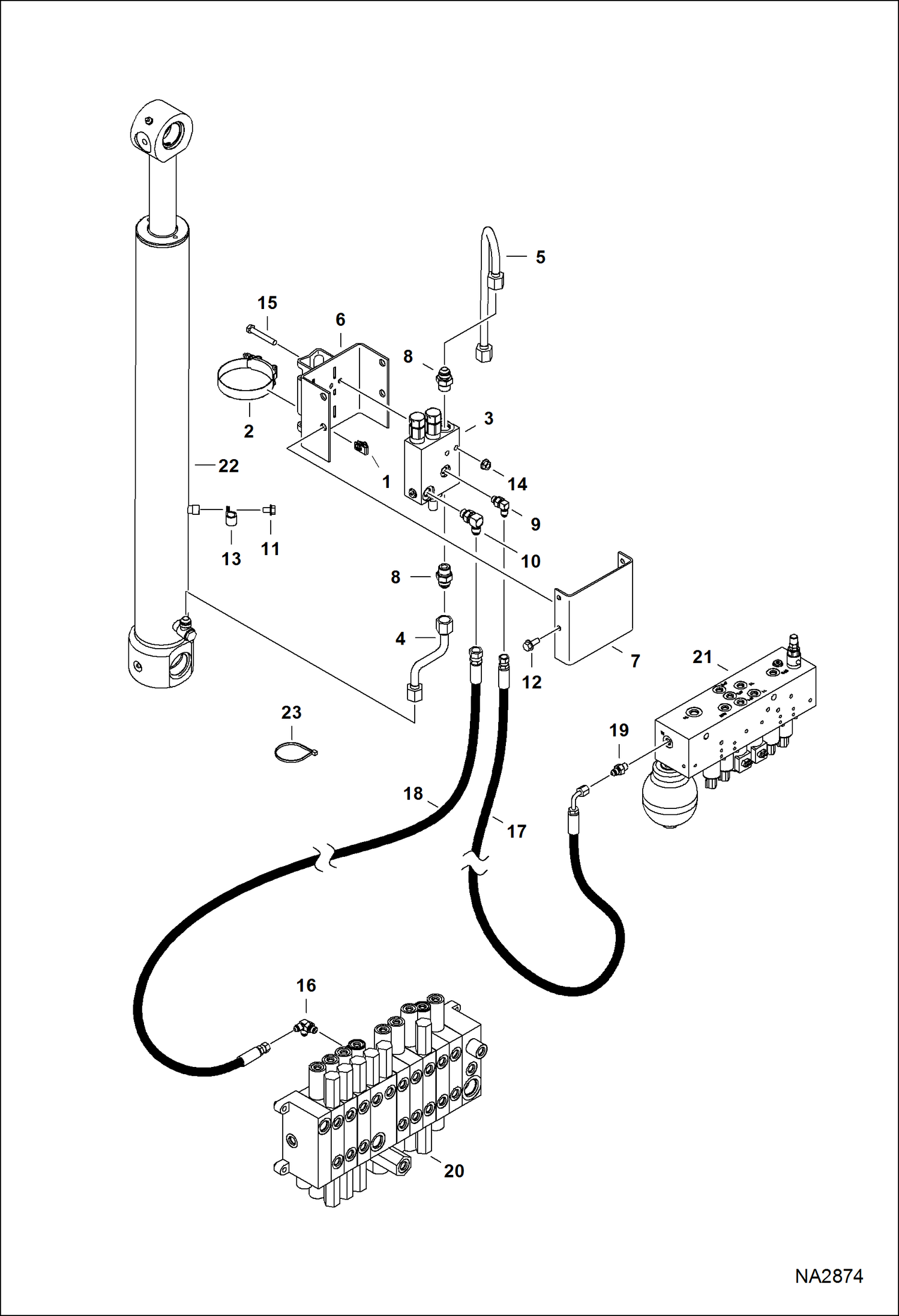

Схема запчастей Bobcat E32 - LOAD HOLD OPTION (Boom) (S/N AC2N13084 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6676169

NUT

2

7009353

CLAMP, T-BOLT

3

7189078

VALVE, LOCK LOAD See Illustration LOAD HOLD OPTION/ NA2293 Was 7010060 - A

4

7186682

TUBELINE, HYD

5

7187293

TUBELINE, HYD

6

7186699

BRACKET, VALVE

7

7186785

COVER, VALVE

8

15KB0808

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

17KB0404

FTG HYD ELBOW 90

9

79K4

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

29CM816

SCREW Was 29CM812 - B

12

29CM820

SCREW

13

30H30

CLAMP

14

51DM8

NUT

15

53CM855

SCREW

16

7166606

TEE

16

7229540

FITTING, CROSS

16

79K4

O RING 10

17

7189161

HOSE, HYD

18

7189162

HOSE, HYD

19

15KB0404

FTG HYD S Connector

19

79K4

O RING 10

20

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA2295

21

MANIFOLD See Illustration MANIFOLD ASSY/ NA2294

22

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2235

23

6610510

TIE

Выбрано товаров: 29
