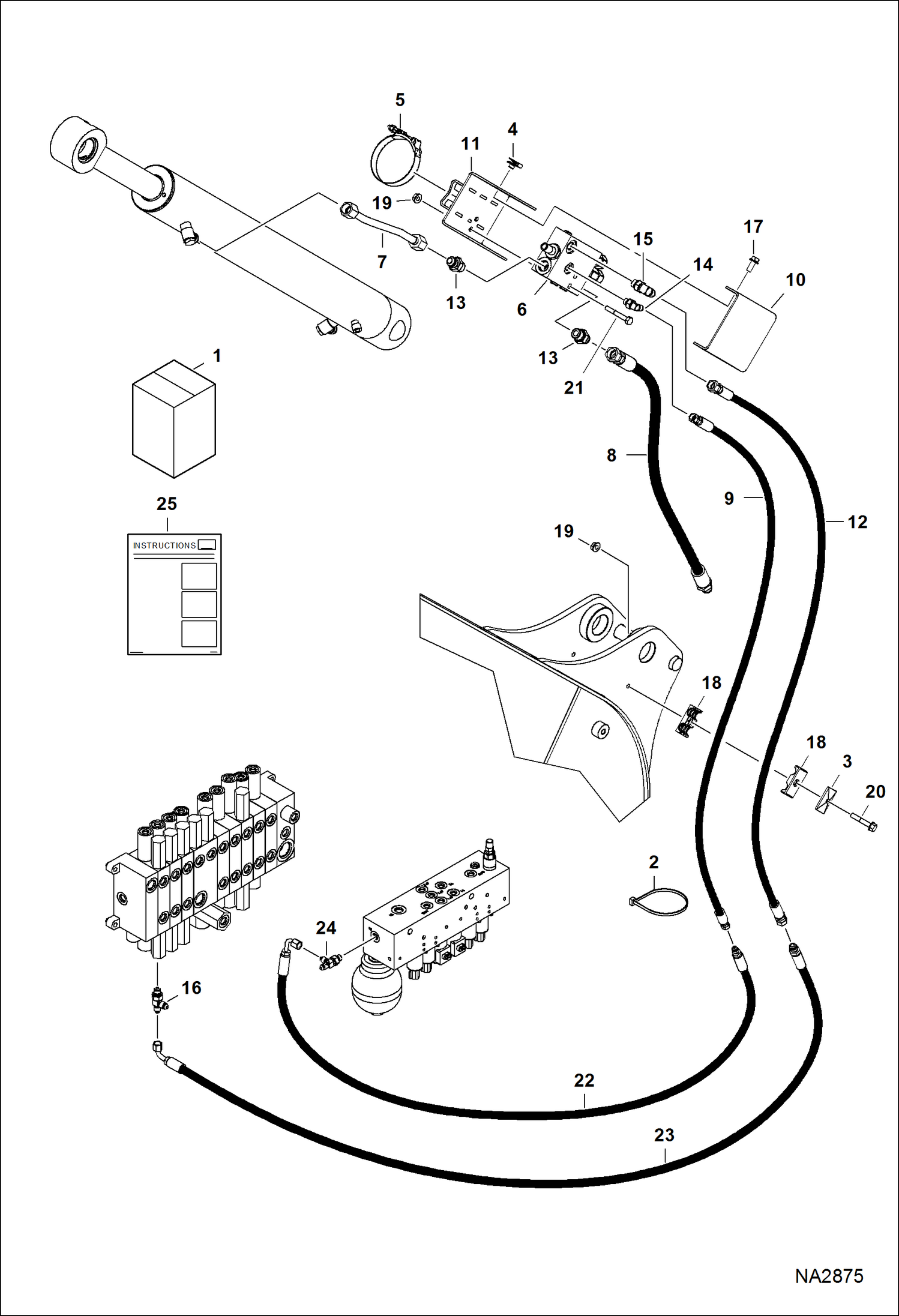

Запчасти Bobcat E32 LOAD HOLD KIT (Arm) ACCESSORIES & OPTIONS

1

7199745

KIT, LOAD HOLD ARM Ref. 2-25

2

6610510

TIE

3

6652521

PLATE

4

6676169

NUT

5

7009353

CLAMP, T-BOLT

6

7189078

VALVE, LOCK LOAD See Illustration LOAD HOLD OPTION/ NA2293

7

7162802

TUBELINE, HYD

8

7162803

HOSE, HYD ASSY

9

7165098

HOSE, HYD ASSY

10

7174256

BRACKET, VALVE

11

7174284

BRACKET, VALVE

12

7178165

HOSE, HYD ASSY

13

15KB0808

FITTING, HYD CONNECTOR

13

79K8

O RING 10

14

17KB0404

FTG HYD ELBOW 90

14

79K4

O RING 10

15

17KB0606

FITTING

15

79K6

O RING 10

16

6812864

FITTING

16

79K4

O RING 10

17

29CM820

SCREW

18

6577697

CLAMP

19

51DM8

NUT

20

59CM845

BOLT, FLANGE Was 53CM850 - A

21

53CM855

SCREW

22

7173204

HOSE, HYD ASSY

23

7197061

HOSE, HYD

24

21KB0404

FITTING, HYD TEE

24

79K4

O RING 10

25

6990074

INSTRUCTIONS
