Запчасти Bobcat E32 HEATER & A/C (HVAC Kit) (S/N A94H17001 & Above, AC2N15001 & Above) ACCESSORIES & OPTIONS

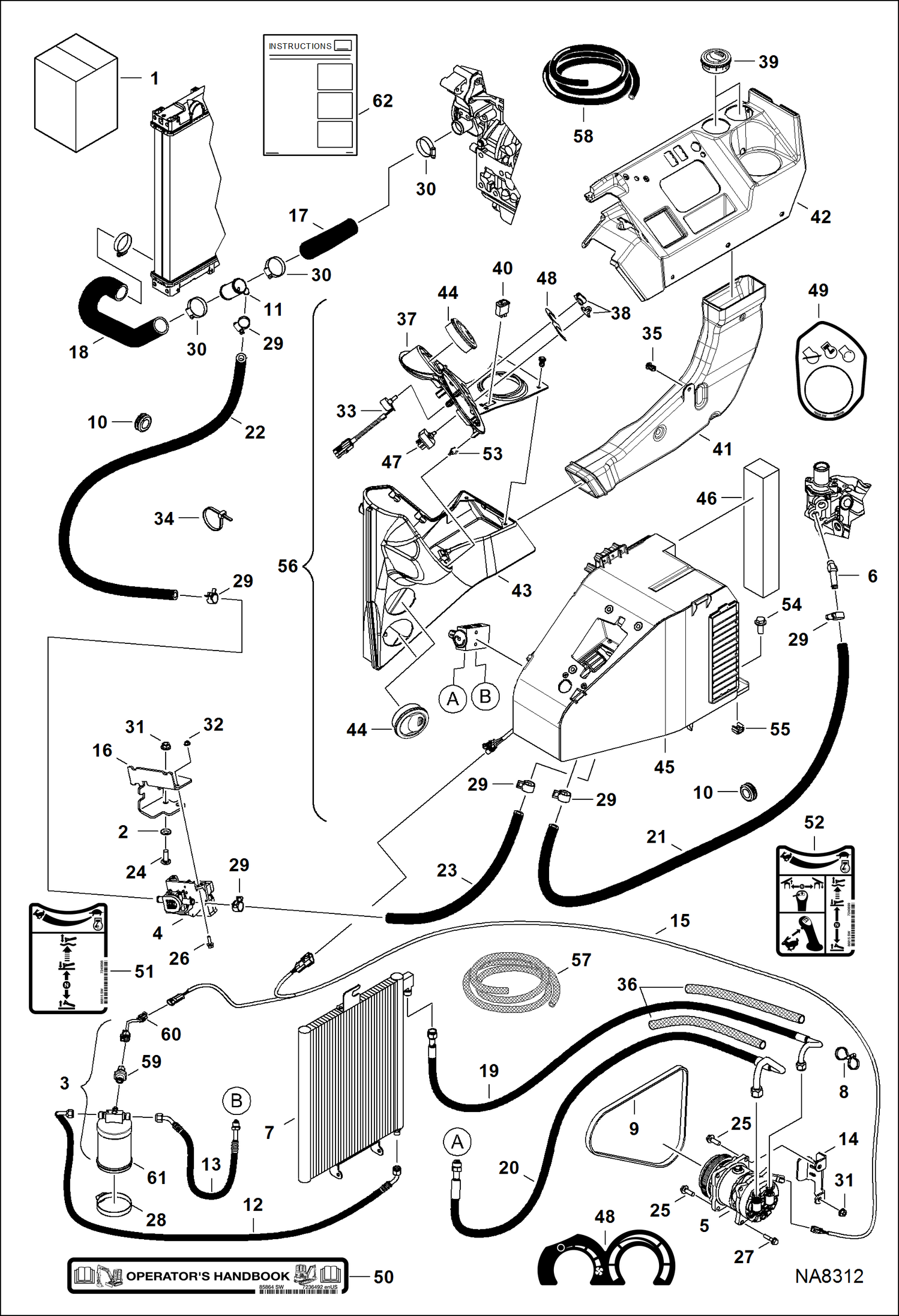

Схема запчастей Bobcat E32 - HEATER & A/C (HVAC Kit) (S/N A94H17001 & Above, AC2N15001 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7240347

KIT, HVAC EXC Ref 2-53 & 56-59

2

6674264

RETAINER NUT

3

7025095

RECEIVER, DRIER A/C

4

7003456

VALVE, MOTORIZED ASSY

5

7023577

COMPRESSOR, A/C

6

6731085

ELBOW

7

7003035

CONDENSER, A/C

8

7009540

STRAP, DOUBLE

9

7009797

BELT, HVAC

10

7136776

GROMMET

11

7156272

TEE

12

7156286

HOSE, A/C ASSY

13

7222214

HOSE, A/C ASSY

13

7009976

O-RING #6

14

7156374

BRACKET

15

7168895

HARNESS, AC CLUTCH

16

7183801

BRACKET

17

7172065

HOSE

18

7172066

HOSE

19

7174197

HOSE

20

7222215

HOSE, A/C ASSY

20

7009978

O-RING #10

21

HOSE, HEATER NLA - 2606 mm (102.6'') long - Order Ref. 55

22

HOSE, HEATER NLA - 1641 mm (64.6'') long - Order Ref. 55

23

HOSE, HEATER NLA - 445 mm (17.5'') long - Order Ref. 55

24

28CM1030

BOLT

25

29CM1030

BOLT

26

29CM620

SCREW

27

29CM835

BOLT

28

42H48

CLAMP 5

29

5HM20

CLAMP

30

42HL200

CLAMP, HOSE

31

43DM10

NUT

32

43DM6

NUT

33

7168604

RESISTOR

34

6624289

STRAP, TIE

35

7160383

RIVET, BIRD CAGE

36

COVER, HOSE NLA - 559 mm (22'') long - Order Ref. 54

37

7210715

CONSOLE, DISPLAY STANDARD

37

7210716

CONSOLE, DISPLAY DELUXE

38

6675177

KNOB

39

7155794

LOUVER, ROUND

40

7169112

SWITCH, ROCKER A/C

41

7206885

DUCT, AIR

42

7208761

CONSOLE, RH

43

7210713

CONSOLE, CAB

44

7218230

LOUVER, ROUND

45

7222776

HVAC, CAB

46

7237649

FOAM, HVAC

47

7232486

SWITCH, FAN

48

7224166

DECAL, HVAC

49

7186708

DECAL, SWITCH IGN

50

7236492

DECAL

51

7240698

DECAL, BLADE

52

7240699

DECAL, ANGLE BLADE

53

7165333

CLIP

54

29CM1025

BOLT not in kit

55

7155411

NUT not in kit

56

DUCT, AIR ASSY See Illustration HEATER & A/C/ NA8335

57

7187433

COVER, HOSE BULK/FT bulk - sold per foot

58

6565977

HOSE bulk - sold per foot

59

6990889

INSTRUCTIONS

Выбрано товаров: 62
