Запчасти Bobcat E32 HEATER & A/C (A/C Kit) (S/N A94H17001 & Above, AC2N15001 & Above) ACCESSORIES & OPTIONS

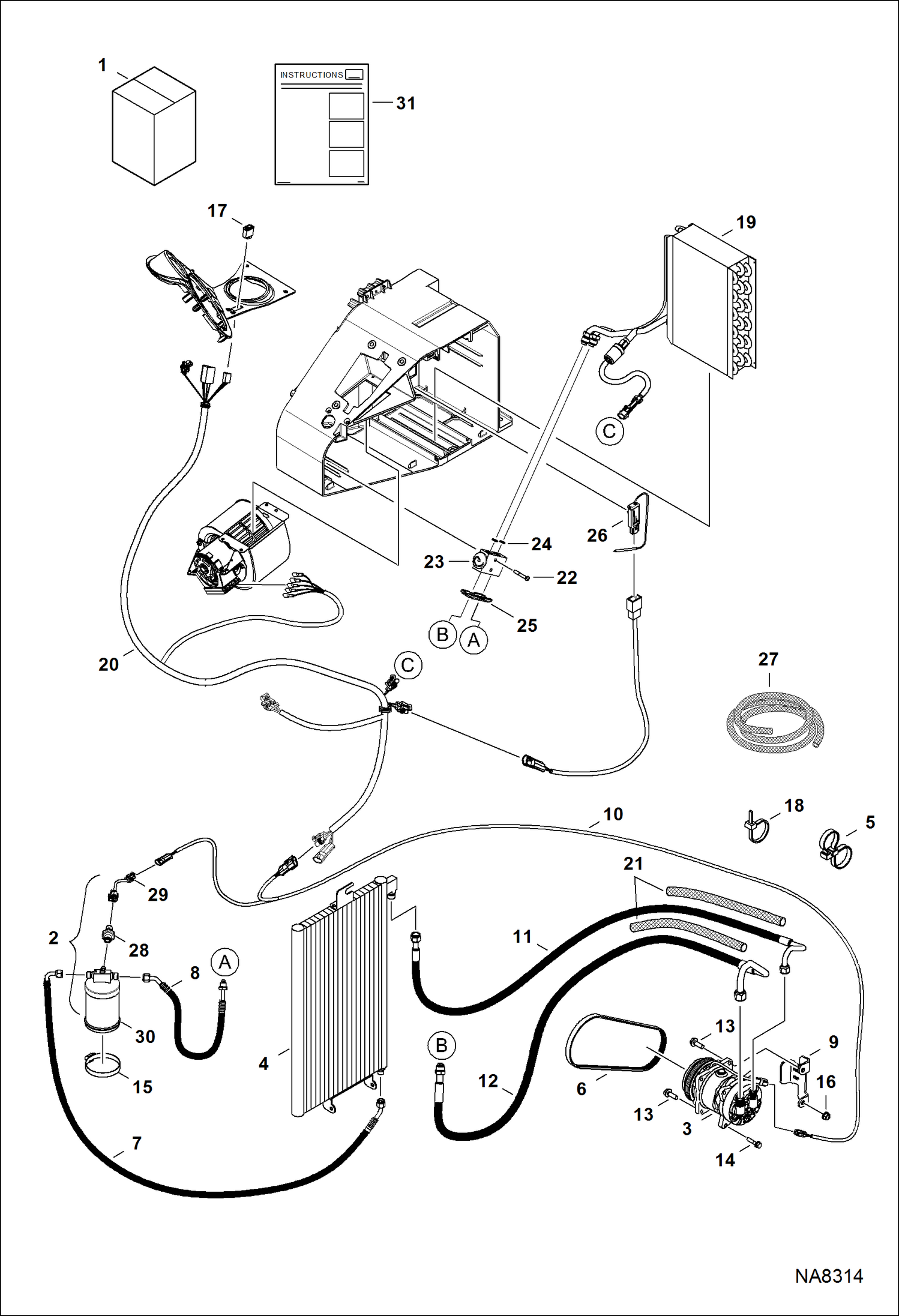

Схема запчастей Bobcat E32 - HEATER & A/C (A/C Kit) (S/N A94H17001 & Above, AC2N15001 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7240333

KIT, A/C Ref. 2-28

2

7025095

RECEIVER, DRIER A/C

3

7023577

COMPRESSOR, A/C

4

7003035

CONDENSER, A/C

5

7009540

STRAP, DOUBLE

6

7009797

BELT, HVAC

7

7156286

HOSE, A/C ASSY

8

7222214

HOSE, A/C ASSY

8

7009976

O-RING #6

9

7156374

BRACKET

10

7168895

HARNESS, AC CLUTCH

11

7174197

HOSE

12

7222215

HOSE, A/C ASSY

12

7009978

O-RING #10

13

29CM1030

BOLT

14

29CM835

BOLT

15

42H48

CLAMP 5

16

43DM10

NUT

17

7169112

SWITCH, ROCKER A/C

18

6624289

STRAP, TIE

19

7031403

EVAPORATOR

20

7240761

HARNESS, HVAC

21

COVER, HOSE NLA - 559 mm (22'') long - Order Ref. 27

22

7031404

SCREW

23

7193538

BLOCK, VALVE A/C

24

6675538

O-RING

25

7193533

GROMMET

26

7193539

THERMOSTAT

27

7187433

COVER, HOSE BULK/FT bulk - sold per foot

28

6990890

INSTRUCTIONS

Выбрано товаров: 30
