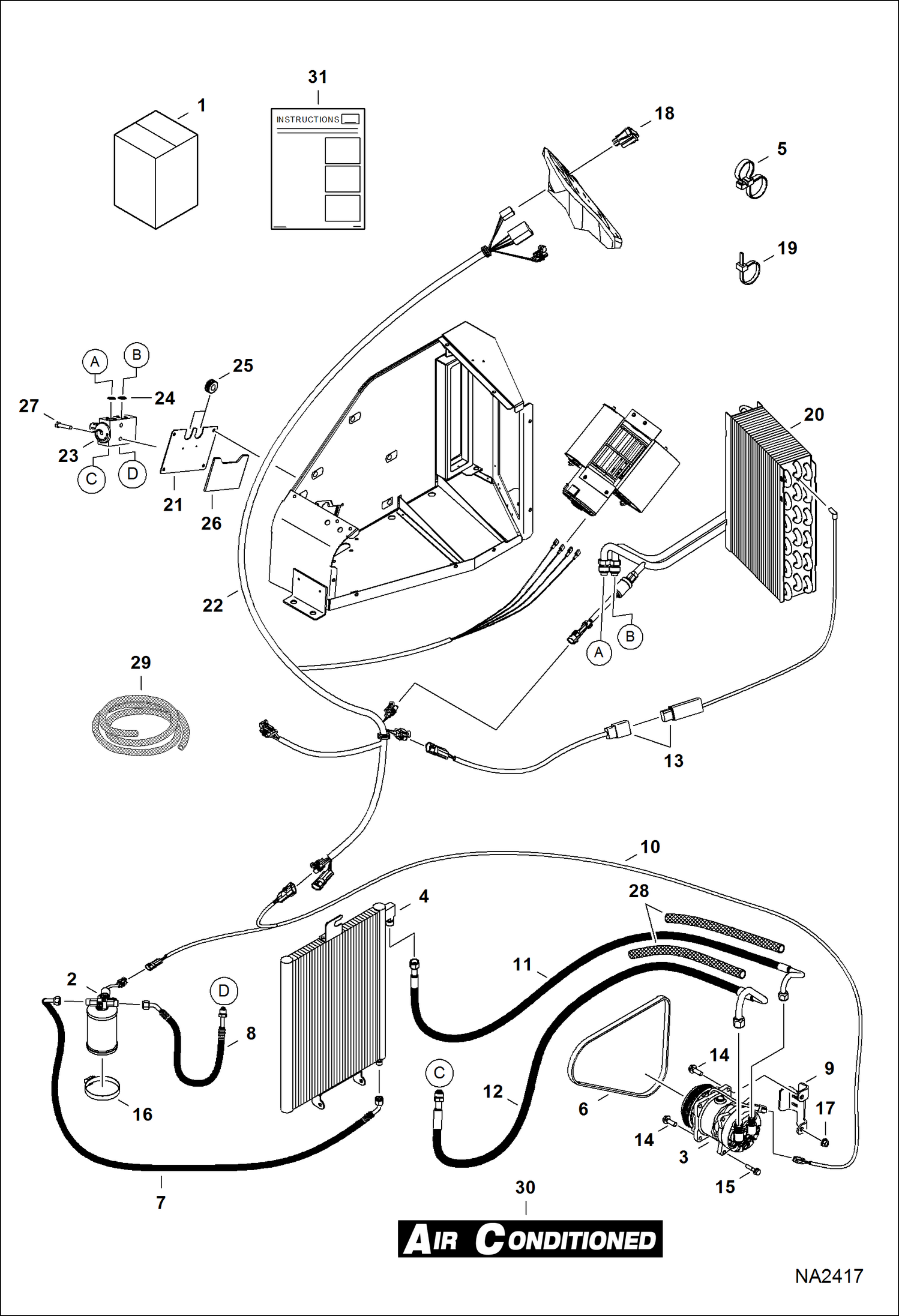

Запчасти Bobcat E32 HEATER & A/C (A/C Kit) (S/N A94H11001 - 13144, AC2N11001 - 13062) ACCESSORIES & OPTIONS

1

7184149

KIT, A/C Ref. 2-31

2

6680311

RECEIVER

3

7023577

COMPRESSOR, A/C Was 6698358 - A

4

7003035

CONDENSER, A/C

5

7009540

STRAP, DOUBLE

6

7009797

BELT, HVAC

7

7156286

HOSE, A/C ASSY

8

7156287

HOSE, A/C ASSY

8

7009976

O-RING #6

9

7156374

BRACKET

10

7168895

HARNESS, AC CLUTCH

11

7174197

HOSE

12

7174198

HOSE

12

7009978

O-RING #10

13

7008040

MODULE, DE-ICER ELECTRONIC

14

29CM1030

BOLT

15

29CM835

BOLT

16

42H48

CLAMP 5

17

43DM10

NUT

18

7169112

SWITCH, ROCKER A/C Was 6719176 - A

19

6624289

STRAP, TIE

20

7011130

COIL, EVAPORATOR

21

7011129

PLATE, VALVE

22

7011128

HARNESS, HVAC harness not shown - grommet included

23

7008034

BLOCK, VALVE A/C

24

7009977

O-RING #8 - Was 6675538 - A

25

7011127

GROMMET

26

7011106

INSULATION, HEATER

27

6691534

SCREW

28

COVER, HOSE NLA - 22'' (559 mm) long - Order Ref. 29

29

7187433

COVER, HOSE BULK/FT bulk - sold per foot

30

7166916

DECAL, A/C not in kit

31

6989500

INSTRUCTIONS
