Запчасти Bobcat E32 EXTENDABLE ARM (Assy) ACCESSORIES & OPTIONS

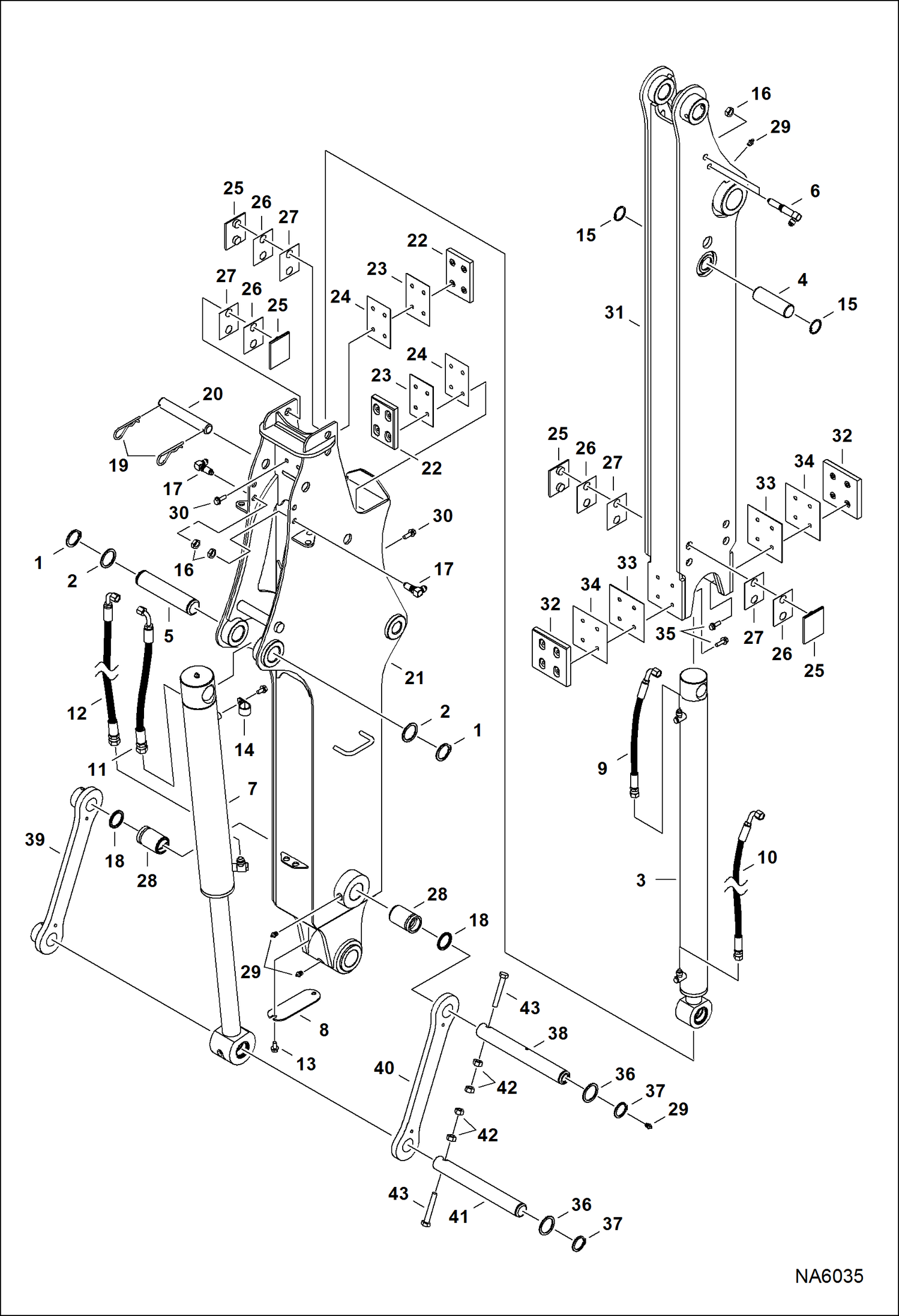

Схема запчастей Bobcat E32 - EXTENDABLE ARM (Assy) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6665618

RING

2

6666549

WASHER

3

7170151

CYLINDER, ARM EXTENDABLE See Illustration EXTENDABLE ARM CYLINDER/ NA5474

4

7194376

PIN, PIVOT CYL

5

7194409

PIN, PIVOT CYL

6

7195010

FITTING, HYD ELBOW

7

7196762

CYLINDER, ARM EXTENDABLE See Illustration BUCKET CYLINDER/ NA2935 bucket

8

7198050

COVER, PLATE

9

7200254

HOSE, HYD

10

7200255

HOSE, HYD

11

7200256

HOSE, HYD

12

7200257

HOSE, HYD

13

29CM816

SCREW

14

30H50

CLIP

15

7JM35

SNAP RING

16

86F5

NUT

17

88F5

ELBOW

18

6652915

SEAL, OIL

19

6675029

PIN

20

7194377

PIN

21

7194381

ARM, OUTER EXTENDABLE

22

7194395

PAD, WEAR ASSY

23

7194397

SHIM

24

7194398

SHIM

25

7194399

PAD, WEAR

26

7194400

SHIM

27

7194401

SHIM

28

7196811

BUSHING, WEAR

29

10H25

FITTING, GREASE 5

30

59CM825

Screw Hex FLNG W/T8.8

31

7194363

ARM, INNER EXTENDABLE

32

7194403

PAD, WEAR ASSY

33

7194405

SHIM

34

7194406

SHIM

35

59CM820

SCREW HX FLNG W/T 8.8

36

6534111

WASHER

37

6534154

RING

38

7194592

PIN, PIVOT CYL

39

7194594

LINK, ASSY

40

7194595

LINK

41

7196916

PIN, PIVOT CYL

42

4DM12

NUT HEX

43

7CM1280

BOLT

Выбрано товаров: 43
