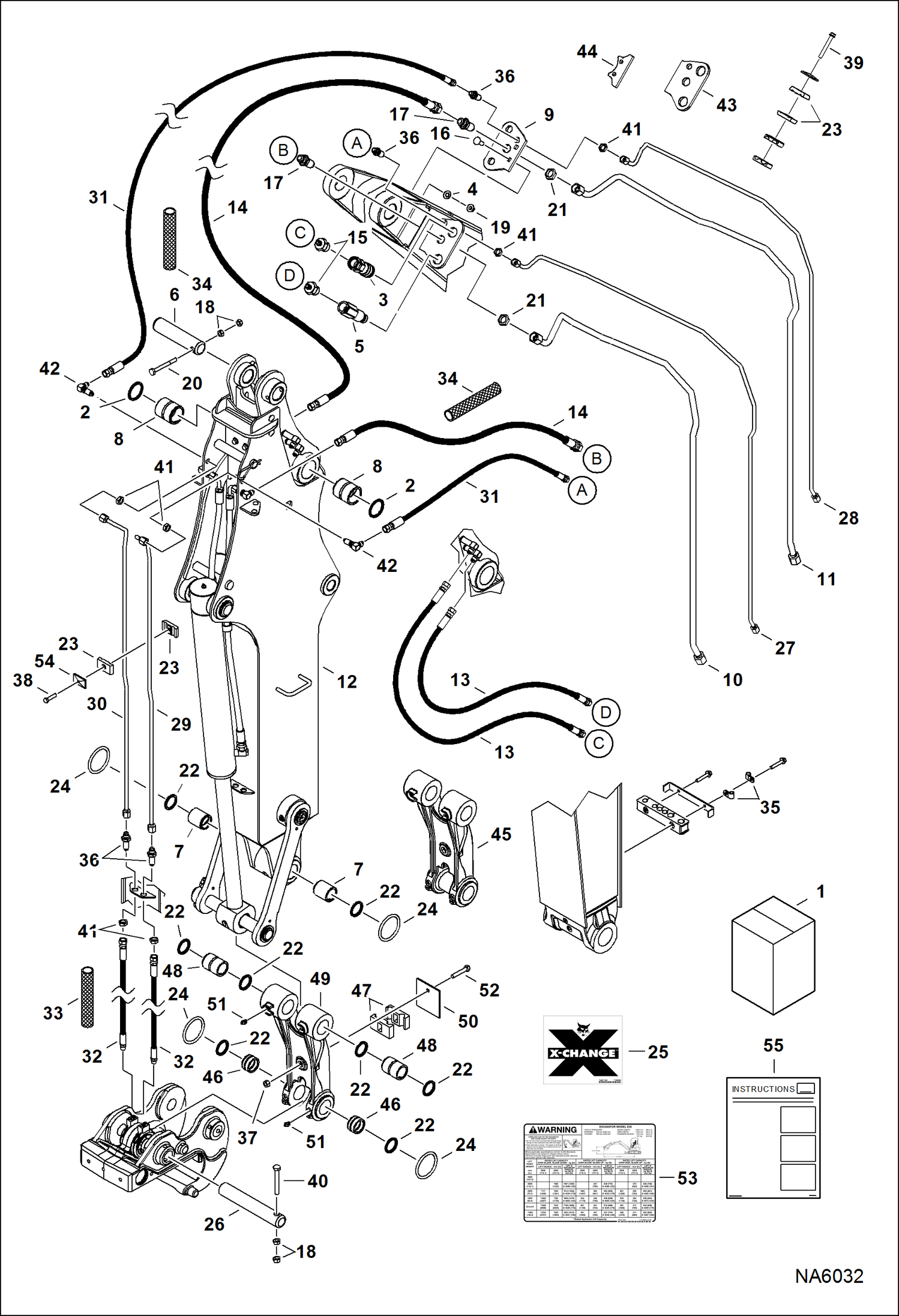

Запчасти Bobcat E32 EXTENDABLE ARM (Kit) ACCESSORIES & OPTIONS

1

7202870

KIT, ARM EXTENDABLE Ref. 2-55 - Also Order (2) Ref. 8 (6628341 bushing) - If excavator is equipped with secondary aux, Also Order (1) each of 7198293 & 7198294 tubeline - If excavator is not equipped

1

7202870

KIT, ARM EXTENDABLE Ref. 2-55 - If excavator is equipped with secondary aux, Also Order (1) each of 7198293 & 7198294 tubeline - If excavator is not equipped with counterweight, Also Order Sales #7181

1

7202870

KIT, ARM EXTENDABLE Ref. 2-55 - If excavator is not equipped with counterweight, Also Order Sales #7181481 counterweight kit

2

6669287

SEAL

3

6672960

COUPLER, FF FEMALE

4

6674264

RETAINER NUT

5

6674688

COUPLER, FF MALE

6

7143009

PIN, PIVOT BOOM

7

7167301

BUSHING, WEAR

8

6628341

BUSHING, PRESS FIT not in kit - Use W/pin W/ 10 mm dia cross bolt retaining hole

8

7172745

BUSHING, WEAR Use W/pin W/ 12 mm dia cross bolt retaining hole

9

7198272

PLATE, MOUNT COUPLER

10

7198289

TUBELINE, HYD

11

7198290

TUBELINE, HYD

12

ARM, DIPPER EXTENDABLE See Illustration EXTENDABLE ARM/ NA6035

13

7200258

HOSE, HYD

14

7200259

HOSE, HYD

15

15KB0612

FITTING, HYD CONNECTOR

15

79K12

O RING 10

16

28CM1030

BOLT

17

45K7

CONNECTR

18

4DM10

NUT

19

51DM10

NUT

20

7CM1090

BOLT, HEX SOCKET

21

86F7

LOCK NUT

22

6652915

SEAL, OIL

23

6664381

CLAMP

24

7143562

O-RING

25

7160881

DECAL, X-CHANGE

26

7181216

PIN, PIVOT X-CHANGE

27

7198291

TUBELINE, HYD

28

7198292

TUBELINE, HYD

29

7198344

TUBELINE, HYD

30

7198345

TUBELINE, HYD

31

7200260

HOSE, HYD

32

7209105

HOSE, HYD Was 7200261 - A

33

7200266

GUARD, FABRIC

34

7201520

GUARD, FABRIC

35

30H22

CLIP

36

45K5

FITTING

37

7160880

DECAL, X-CHANGE

38

53CM835

SCREW

39

59CM870

BOLT, FLANGE

40

7CM1080

BOLT

41

86F5

NUT

42

88F5

ELBOW

43

7198270

PLATE, MOUNT COUPLER See Illustration BOOM/ NA2035

44

7198271

BRACKET, MOUNTING See Illustration BOOM/ NA2035

45

LINK, ASSY See Illustration EXTENDABLE ARM/ NA6040

46

6803309

BUSHING, PRESS FIT

47

7115813

BLOCK RUBBER

48

7196810

BUSHING, WEAR

49

LINK, HYD X-CHANGE See Illustration X-CHANGE/ NA2302

50

7197895

PLATE

51

10H25

FITTING, GREASE 5

52

1CM1055

BOLT

53

7203640

DECAL, CAPACITY LIFT E35

53

7203641

DECAL, CAPACITY LIFT E32

54

6652521

PLATE

55

6990120

INSTRUCTIONS
