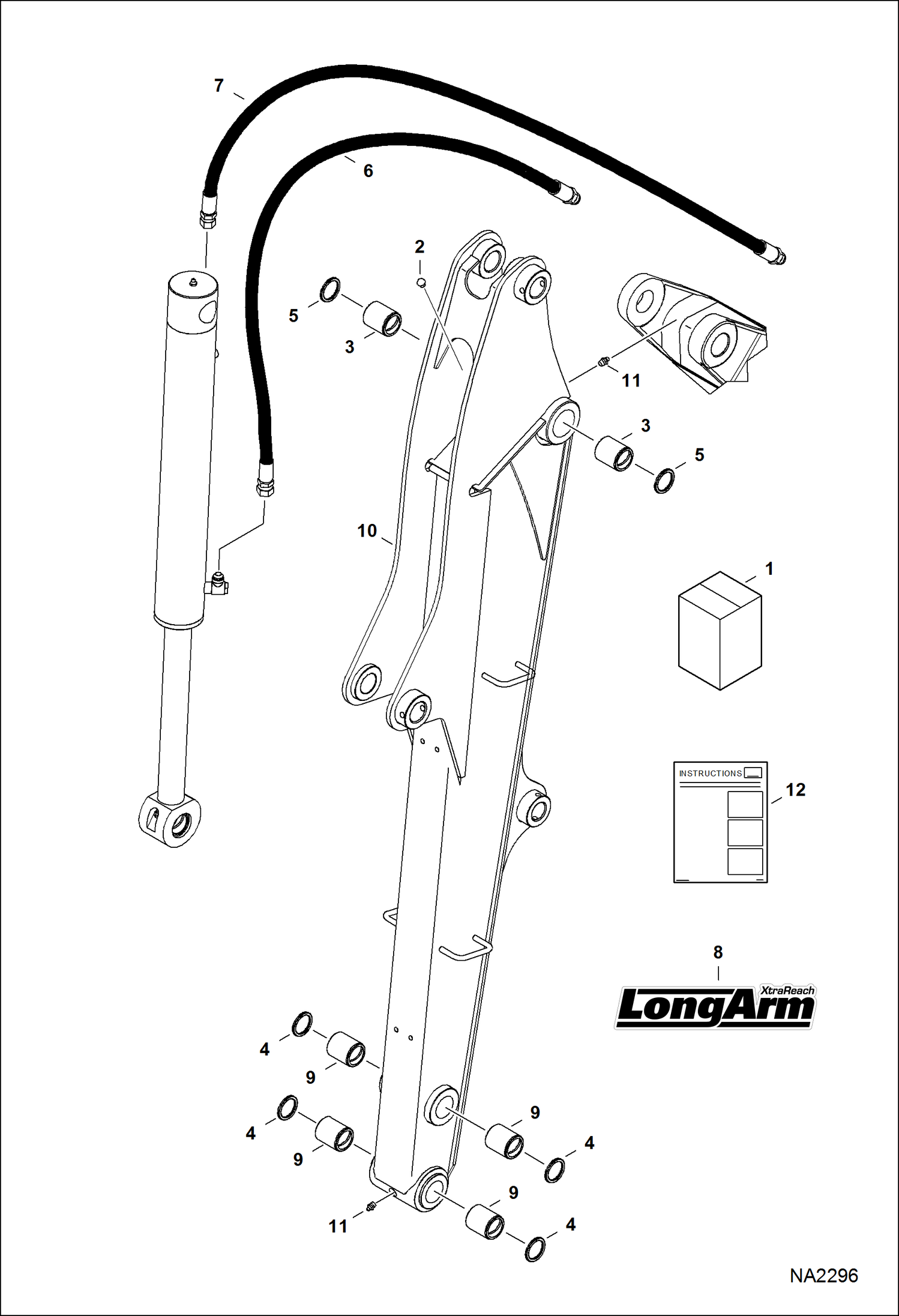

Запчасти Bobcat E32 ARM KIT (Long) ACCESSORIES & OPTIONS

1

KIT, LONG ARM SALES - Ref. 2-12 - Sales #7178040 - Also Order (2) 6628341 bushings - If excavator is not equipped with counterweight, Also Order Sales #7181481 - Was 7178040 - A

1

KIT, LONG ARM SALES - Ref. 2-12 - Sales #7178040 - If excavator is not equipped with counterweight, Also Order Sales #7181481

2

6597572

BUMPER

3

6628341

BUSHING, PRESS FIT not in kit - Use W/pin W/10 mm dia cross bolt retaining hole

3

7172745

BUSHING, WEAR Use W/pin W/12 mm dia cross bolt retaining hole

4

6652915

SEAL, OIL

5

6669287

SEAL

6

7143694

HOSE, HYD ASSY

7

7143695

HOSE, HYD ASSY

8

7147433

DECAL, ARM LONG

9

7167301

BUSHING, WEAR

10

7180025

ARM, DIPPER W/A LONG EXC

11

10H25

FITTING, GREASE 5

12

6987432

INSTRUCTIONS
