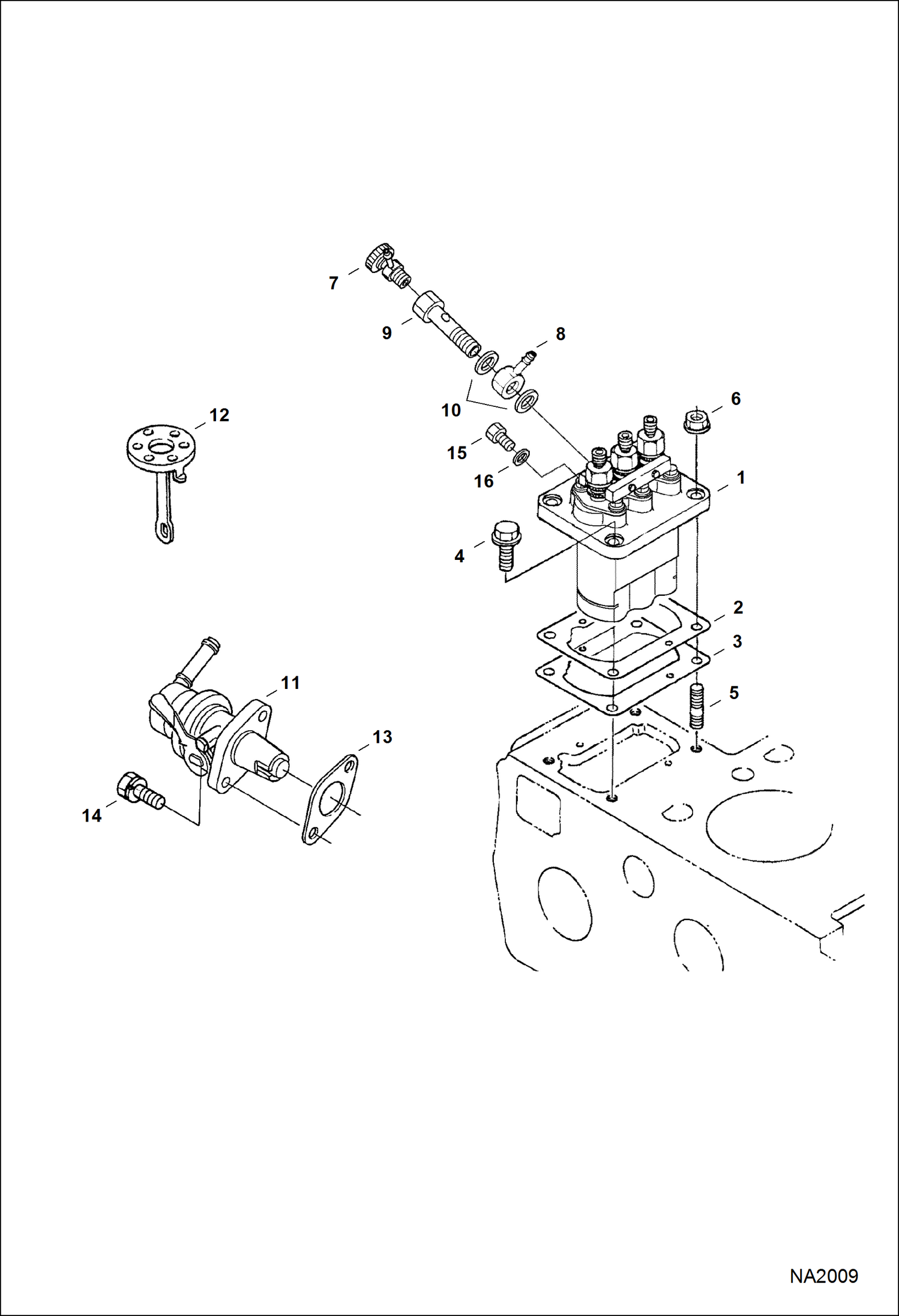

Запчасти Bobcat E32 INJECTION PUMP POWER UNIT

1

7008896

PUMP, FUEL INJ assy - W/Ref 15 & 16

2

6698633

SHIM, PUMP INJ 0,175 mm

2

6667444

SHIM 0,20 mm

2

6654719

SHIM 0,25 mm

2

6654720

SHIM 0,30 mm

3

7008892

SHIM, PUMP INJ 0,35 mm

4

6680801

BOLT

5

6652670

STUD

6

6969819

NUT, FLANGE

7

6598102

VALVE jet start

8

6513707

JOINT

9

6685473

BOLT, EYE 12MM Use W/Ref. 10 gasket 6698120

9

7019023

BOLT, EYE 12MM Use W/Ref. 10 gasket 7019024

10

6698120

GASKET Use W/Ref. 9 eye bolt 6685473 - Was 3974374 - B,D

10

7019024

GASKET Use W/Ref. 11 eye bolt 7019023

11

FUEL PUMP NLA - W/primer - Order 6655216 fuel pump - Was 6689491 - B

11

6655216

FUEL PUMP W/O primer

12

6667458

DIAPHRAGM

13

6686037

GASKET fuel pump

14

1CM616

SCREW Was 4CM616 - A

15

6599084

SCREW bleeder

16

6685471

GASKET
