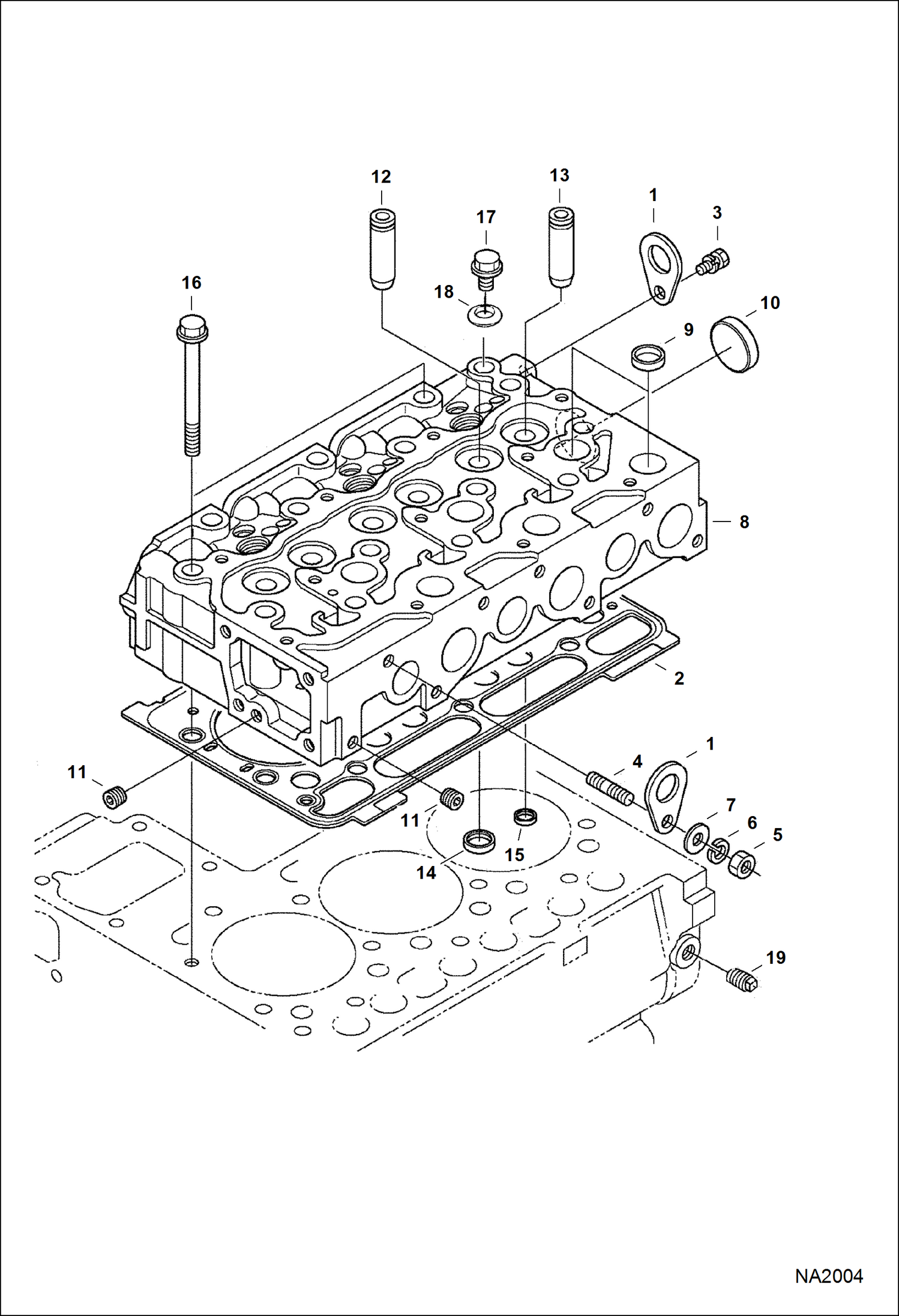

Запчасти Bobcat E32 CYLINDER HEAD POWER UNIT

1

3974882

HOOK engine

2

6698629

GASKET, HEAD CYL 1,15 mm

2

6685858

GASKET 1,20 mm

2

6698630

GASKET, HEAD CYL 1,25 mm

2

6698631

GASKET, HEAD CYL 1,30 mm

2

6698632

GASKET, HEAD CYL 1,35 mm

3

6667421

BOLT

4

6598156

STUD

5

6652792

NUT

6

6667422

WASHER spring

7

1EM80

WASHER Was 2EM8 - A

8

7008889

HEAD, CYL ENG W/Ref. 9-15

9

3974432

PLUG

10

3974433

PLUG

11

6598116

PLUG

12

6655154

GUIDE inlet valve

13

6969990

GUIDE exhaust valve

14

6684762

SEAT intake valve

15

6684763

SEAT exhaust valve

16

6655158

BOLT

17

6655160

PLUG

18

6655161

WASHER W/rubber

19

16F2

PLUG
