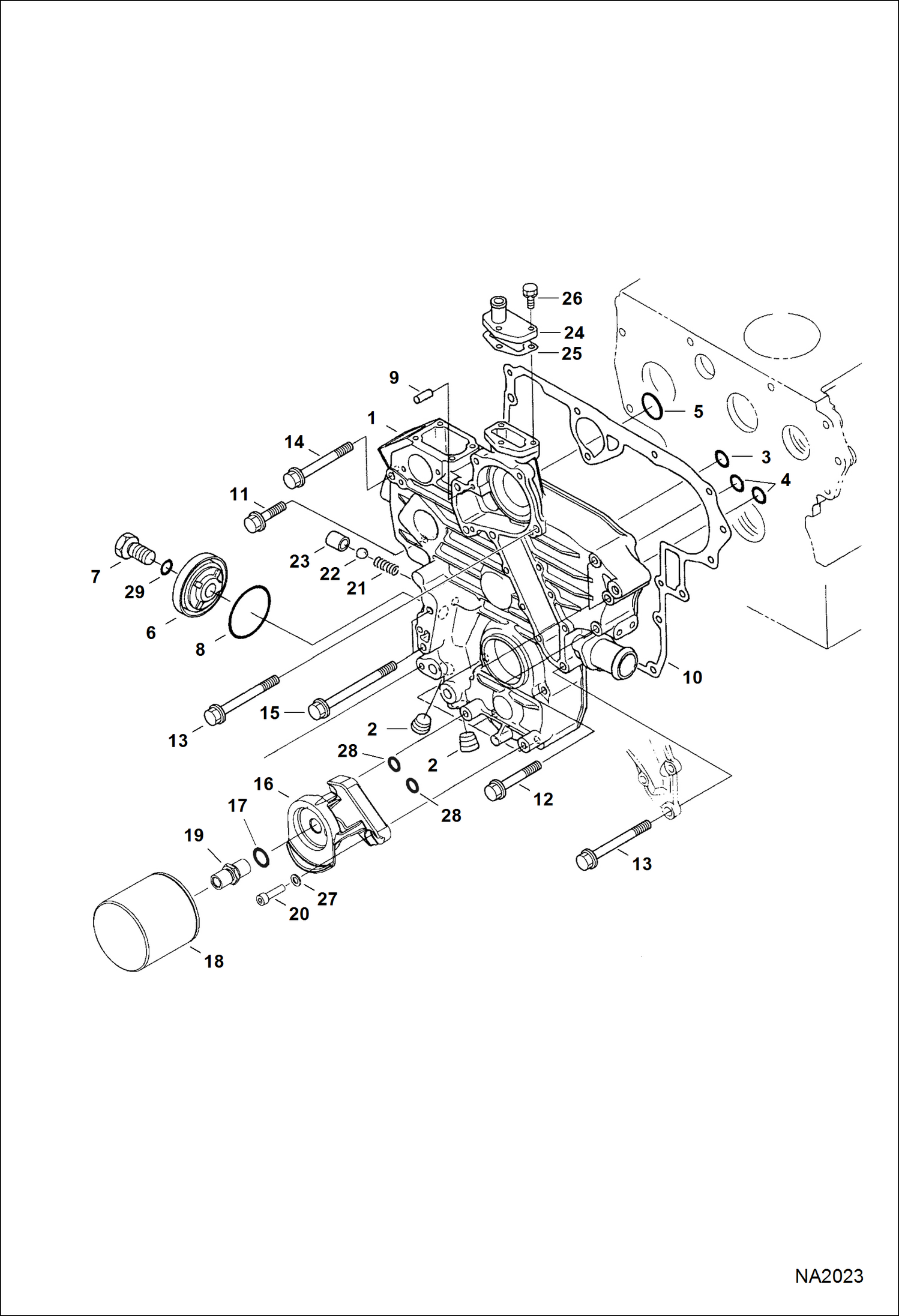

Запчасти Bobcat E32 GEARCASE POWER UNIT

1

6698263

HOUSING, GEAR FRT W/Ref. 2

1

7016900

HOUSING, GEAR W/Ref. 2

2

6672360

PLUG

3

6685466

O-RING

4

6685467

O-RING

5

6685468

O-RING

6

6684766

COVER

7

6684768

BOLT

8

6684769

O-RING

9

3974395

PIN straight

10

6684770

GASKET gear case

10

7010599

GASKET, GEARCASE

11

6680706

BOLT

12

6692375

BOLT

13

6692377

BOLT

14

6680686

BOLT

15

6692376

BOLT

16

7204111

ADAPTER, FILTER OIL Was 7166578 - A

17

6536802

WASHER

18

6675517

FILTER, OIL ENG 12

19

7168523

CONNECTOR oil filter

20

3GM830

SCREW

21

6652652

SPRING

22

10J13

BALL

23

3974893

SEAT valve

24

3974894

FLANGE water return

25

6666803

GASKET water return flange

26

1CM620

BOLT Was 4CM620 - A

27

15EM80

WASHER

28

54K30018

O-RING

29

6685466

O-RING
