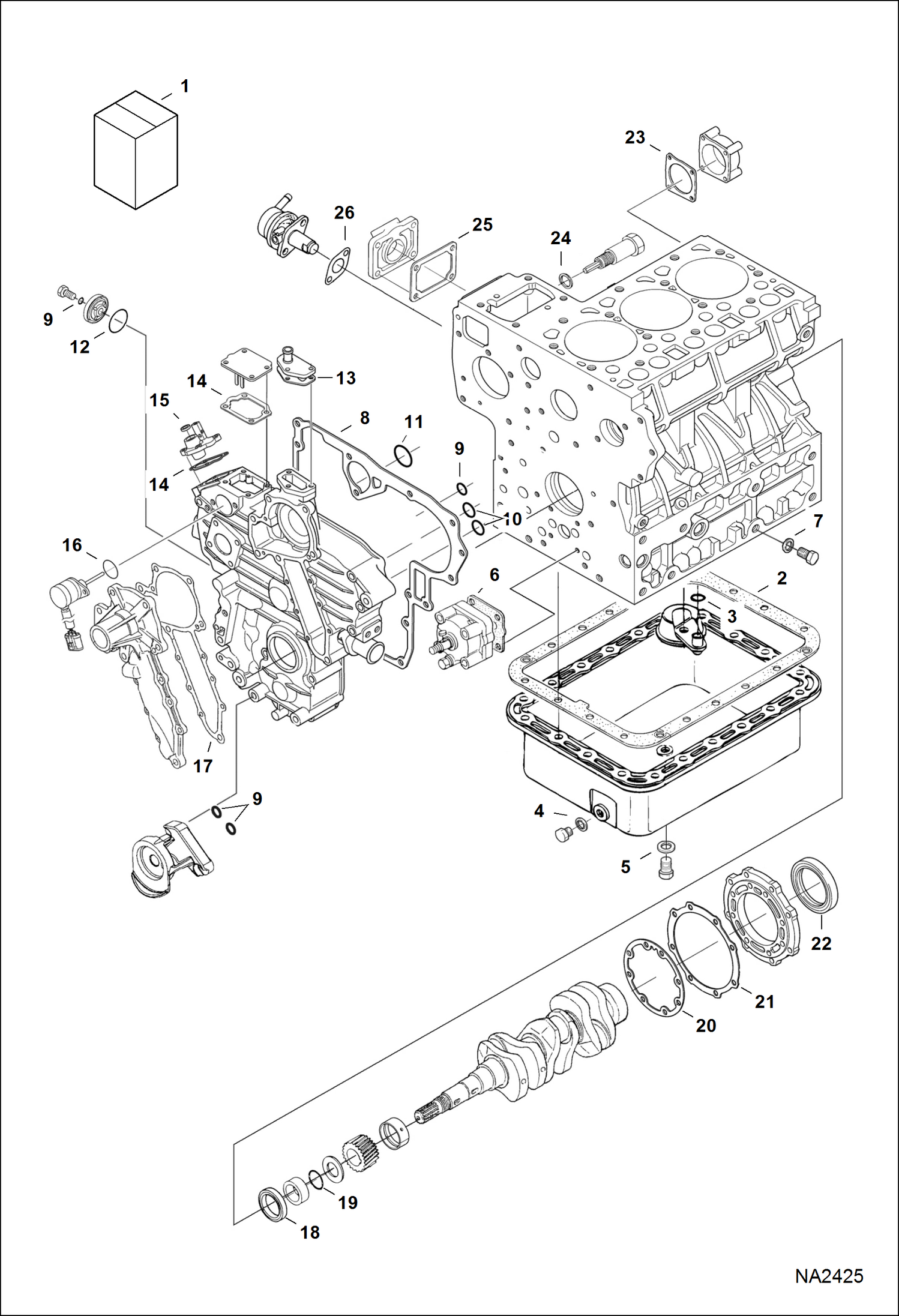

Запчасти Bobcat E32 LOWER GASKET KIT POWER UNIT

1

KIT, GASKET ENG LOWER NLA - Ref. 2-26

2

6666786

GASKET See Illustration OIL PAN/ B22878 - oil pan

3

6684754

O-RING See Illustration OIL PAN/ B22878 - oil screen

4

6631046

SEAL See Illustration OIL PAN/ B22878 - drain plug

5

6680484

GASKET See Illustration OIL PAN/ B22878 - drain plug

6

6666782

GASKET See Illustration CRANKCASE/ B27209 - oil pump

7

3974095

MET-GASK See Illustration CRANKCASE/ B27209

8

6684770

GASKET See Illustration GEARCASE/ NA2023 - gear case

8

7010599

GASKET, GEARCASE See Illustration GEARCASE/ NA2023

9

6685466

O-RING See Illustration GEARCASE/ NA2023 - gear case

10

6685467

O-RING See Illustration GEARCASE/ NA2023 - gear case

11

6685468

O-RING See Illustration GEARCASE/ NA2023 - gear case

12

6684769

O-RING See Illustration GEARCASE/ NA2023 - cover

13

6666803

GASKET See Illustration GEARCASE/ NA2023 - water return flange

14

6684841

GASKET See Illustration ENGINE STOP LEVER/ B27211 - plate

15

6685476

SEAL See Illustration SPEED CONTROL PLATE/ B27076 - oil

16

6685465

O-RING See Illustration ENGINE STOP LEVER/ B27211 - stop solenoid

17

6684870

GASKET See Illustration WATER PUMP/ NA2006 - water pump

18

7024826

SEAL, OIL See Illustration PISTON & CRANKSHAFT/ NA2005 - front oil - oil frt main - Was 6631664

19

3974577

O RING See Illustration PISTON & CRANKSHAFT/ NA2005 - crankshaft frt

20

6684788

GASKET See Illustration PISTON & CRANKSHAFT/ NA2005 - bearing case

21

6666814

GASKET See Illustration PISTON & CRANKSHAFT/ NA2005 - case cover

22

6684789

SEAL See Illustration PISTON & CRANKSHAFT/ NA2005 - rear oil

23

6692386

GASKET See Illustration FUEL CAMSHAFT/ B27213 - cover

24

6684818

SEAL See Illustration ENGINE STOP LEVER/ B27211 - idle adj. bolt

25

6666783

GASKET See Illustration CRANKCASE/ B27209 - oil filler

26

6686037

GASKET See Illustration INJECTION PUMP/ NA2009 - fuel pump
