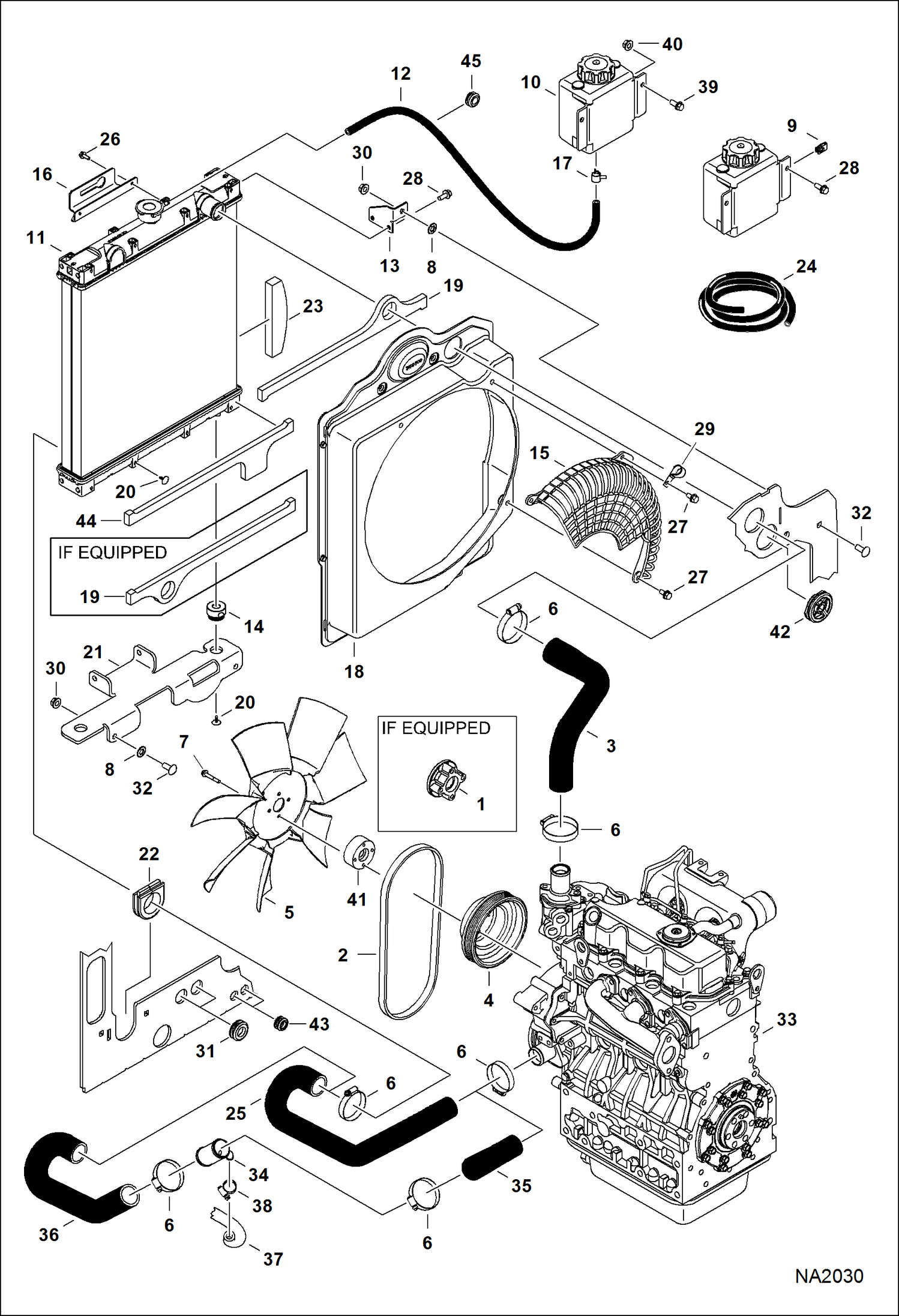

Запчасти Bobcat E32 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6685261

COLLAR

2

7009795

BELT, FAN

3

7139580

HOSE, UPPER

4

7185646

PULLEY, FAN ENG Was 7167178 - A

5

7215594

FAN, COOLING Was 7168079 - A

6

42HL200

CLAMP, HOSE Was 42HL250 - B

7

60CM640

SCREW

8

6674264

RETAINER NUT

9

6676169

NUT

10

7008312

TANK, COOLANT

10

7218789

CAP, OVERFLOW COOLANT Was 6675551 - B

11

7008808

EXCHANGER HEAT

11

6646678

CAP Was 6673313 - A

12

HOSE NLA - 26'' (660 mm) long - Order Ref. 32

13

7139571

MOUNT RADIATOR

14

7139574

MOUNT RUBBER

15

7144536

GUARD FAN

16

7157873

BRACKET RADIATOR

17

5HM14

CLAMP

18

7169709

SHROUD FAN

19

7170400

SEAL RADAITOR

20

7170740

CLIP PLASTIC TREE

21

7171632

SUPPORT RADIATOR

22

7171847

GROMMET

23

7175062

SEAL, RADIATOR

24

6577822

HOSE bulk - sold per foot

25

7171059

HOSE LOWER W/O heater or A/C

26

29CM616

BOLT

27

29CM816

SCREW

28

29CM820

SCREW

29

30HJ512

CLAMP

30

43DM10

NUT

31

6810133

GROMMET

32

28CM1030

BOLT

33

ENGINE, D1803-M-D1-E3B-BC-3 See Illustration ENGINE & GASKET KITS/ NA2423

34

7156272

TEE

35

7172065

HOSE W/heater or A/C

36

7172066

HOSE W/heater or A/C

37

HOSE See Illustration HEATER & A/C/ NA2414

38

42HL100

CLAMP, HOSE

39

28CM820

BOLT

40

51DM10

NUT
