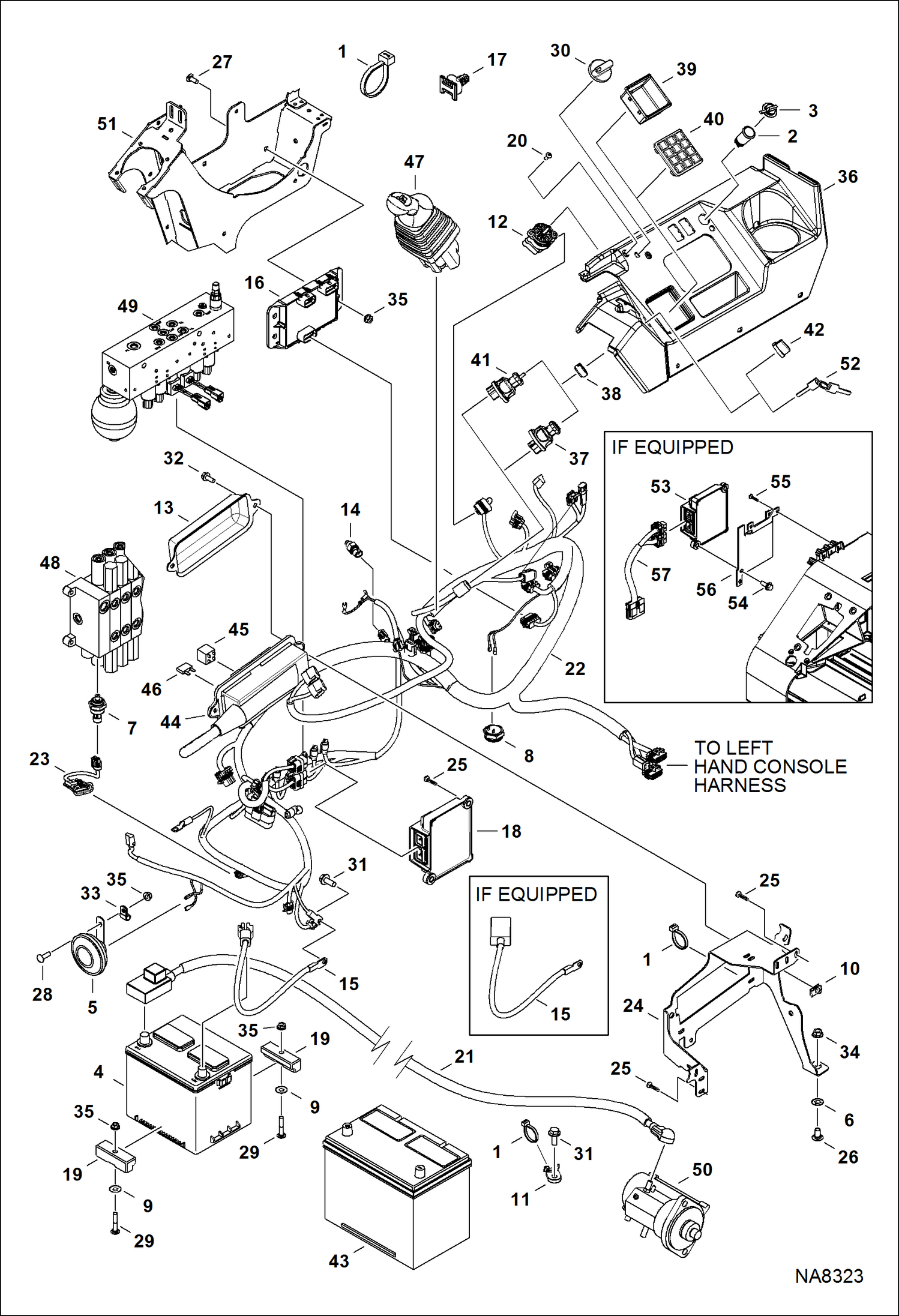

Запчасти Bobcat E32 CONTROLS ELECTRICAL (RH Console) (S/N A94H17001 & Above, AC2N15001 & Above) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6670251

BATTERY, DRY 530 AMP

5

6671106

HORN

6

6674264

RETAINER NUT

7

6674316

SWITCH, PRESS OIL HYD

8

6675705

ALARM

9

6675859

RETAINER

10

6676169

NUT

11

6679034

MOUNT

12

6698640

CONTROL, THROTTLE

13

6716621

COVER

14

6727869

SENDER,HYD TEMP

15

6807431

CABLE

16

7010112

CONTROLLER, THROTTLE AIC

17

7015668

MOUNT, STRAP TIE

18

7024906

CONTROLLER, PRIMARY

19

7120672

TIE DOWN

20

7135909

SCREW

21

7174916

CABLE, POSITIVE

22

7210416

HARNESS, CONSOLE RH W/Ref. 50-52

23

7217776

HARNESS, JUMPER

24

7220330

BRACKET, RELAY CENTER

25

7223129

SCREW

26

28CM1020

BOLT

27

28CM820

BOLT

28

28CM825

BOLT

29

28CM845

BOLT

30

7022367

KNOB

31

29CM1025

BOLT

32

29CM820

SCREW

33

30H22

CLIP

34

43DM10

NUT

35

43DM8

NUT

36

COVER, RH See Illustration CONTROL CONSOLE/ NA8249

37

6693245

SWITCH, IGN

38

7000328

ADAPTER, SWITCH IGN

39

7211550

CONTAINER, STORAGE

40

6693712

KEYPAD, PANEL

41

7023022

SWITCH ROTARY

42

7023588

KNOB

43

6674687

BATTERY, DRY 600 AMP

44

6718659

HOUSING

45

6679820

RELAY

46

6654803

FUSE 5A

46

6654805

FUSE 10A

46

6654806

FUSE, 15A

46

6625575

FUSE, 20A

46

6702444

FUSE 25A 5

46

7029550

FUSE, 35A

46

6673201

LOCK

47

JOYSTICK, RH See Illustration RH JOYSTICK/ NA8317

48

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA2295

49

MANIFOLD See Illustration MANIFOLD ASSY/ NA2294

50

STARTER See Illustration STARTER/ D2437

51

CONTROLLER, JOYSTICK ASSY See Illustration CONTROL CONSOLE/ NA8248

52

6693241

KEY 10 ignition - single key W/O ring

53

CONTROLLER, SECONDARY not used on this model

54

BOLT not used on this model

55

SCREW not used on this model

56

MOUNT, CONTROLLER not used on this model

57

HARNESS not used on this model
