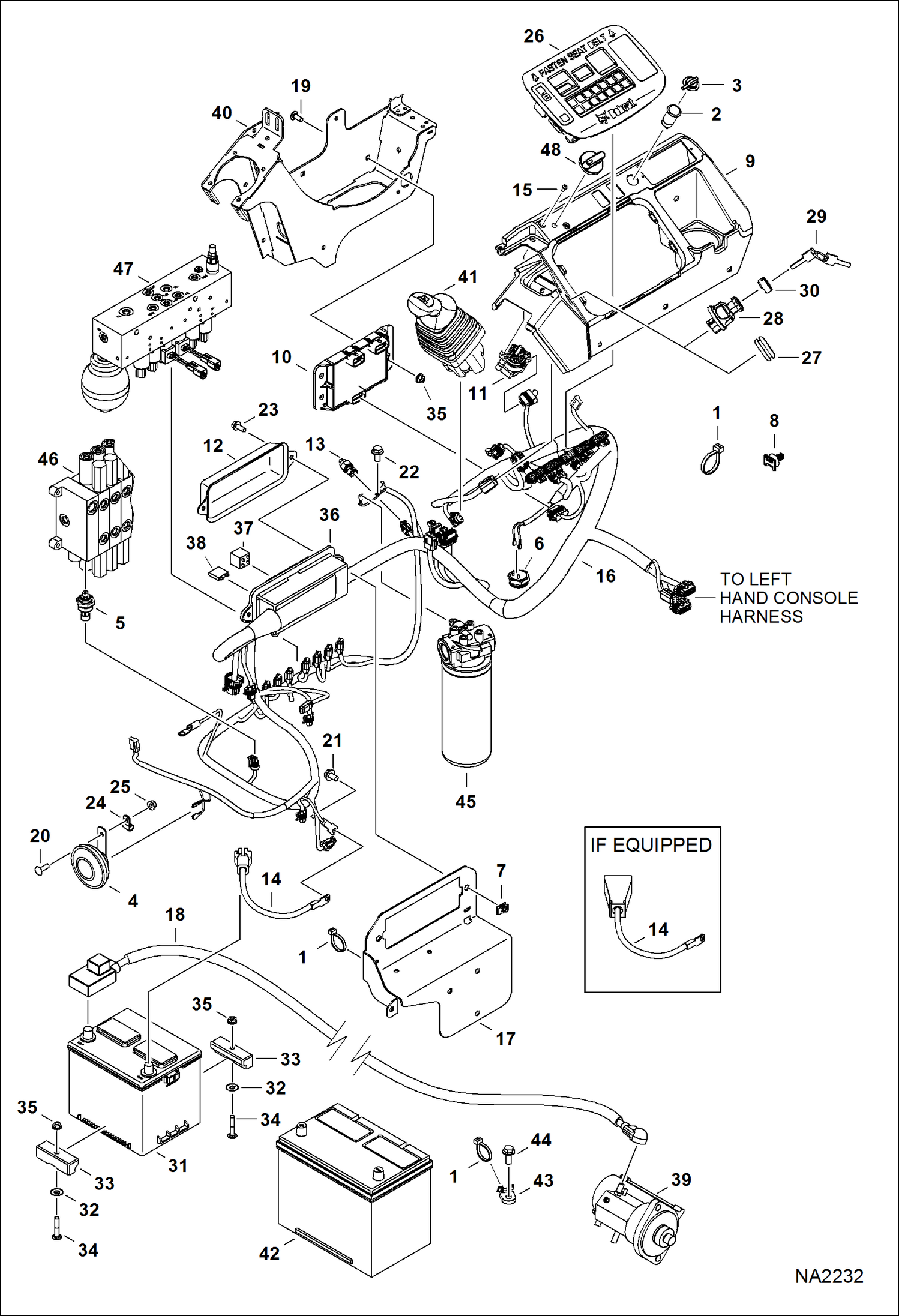

Запчасти Bobcat E32 CONTROLS ELECTRICAL (RH Console) (S/N A94H11001 - 16999, AC2N11001 - 14999) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6664223

OUTLET

3

6664224

CAP

4

6671106

HORN

5

6674316

SWITCH, PRESS OIL HYD 3-pin molded connector

6

6675705

ALARM

7

6676169

NUT

8

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

9

COVER, RH See Illustration CONTROL CONSOLE/ NA2251

10

7010112

CONTROLLER, THROTTLE AIC

11

6698640

CONTROL, THROTTLE W/Ref. 48

12

6716621

COVER

13

6727869

SENDER,HYD TEMP

14

6807431

CABLE

15

7135909

SCREW

16

HARNESS, CONSOLE RH See BTI397 W/Ref. 36-38

16

7147342

HARNESS, CONSOLE RH W/Ref. 36-38

17

7185586

BRACKET, RELAY CENTER Was 7182719 - A

18

7174916

CABLE, POSITIVE

19

28CM820

BOLT

20

28CM825

BOLT

21

29CM1016

BOLT

22

29CM1020

BOLT Was 29CM1025 - B

23

29CM820

SCREW

24

30H22

CLIP

25

43DM8

NUT

26

CONTROLLER, KEYED PANEL NLA - W/O selectable aux hyd flow - Was 6698608 - B

26

7021081

CONTROLLER, KEYED PANEL W/selectable aux hyd flow

26

CONTROLLER, KEYLESS PANEL NLA - W/O selectable aux hyd flow - Was 6698609 - B

26

7021082

CONTROLLER, KEYLESS PANEL W/selectable aux hyd flow

27

6676922

PLUG

28

6693245

SWITCH, IGN

29

6693241

KEY 10 ignition - single key W/O ring

30

7000328

ADAPTER, SWITCH IGN

31

6670251

BATTERY, DRY 530 AMP

32

6675859

RETAINER

33

7120672

TIE DOWN

34

28CM845

BOLT

35

43DM8

NUT

36

6718659

HOUSING

37

6679820

RELAY

38

6654803

FUSE 5A

38

6654805

FUSE 10A

38

6654806

FUSE, 15A

38

6625575

FUSE, 20A

38

6702444

FUSE 25A 5

39

STARTER See Illustration STARTER/ D2437 - Was 6670727 - B

40

CONTROLLER, JOYSTICK ASSY See Illustration OPERATOR AREA & SEAT/ NA2256

41

JOYSTICK, RH See Illustration RH JOYSTICK/ MS1352

42

6674687

BATTERY, DRY 600 AMP

43

6679034

MOUNT

44

29CM1025

BOLT

45

FILTER ASSY See Illustration HYDROSTATIC OIL FILTER/ NA1844 - Was 7008373 - B

46

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA2295

47

MANIFOLD See Illustration MANIFOLD ASSY/ NA2294 - Was 7003649 - B

48

7022367

KNOB
