Запчасти Bobcat E32 ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

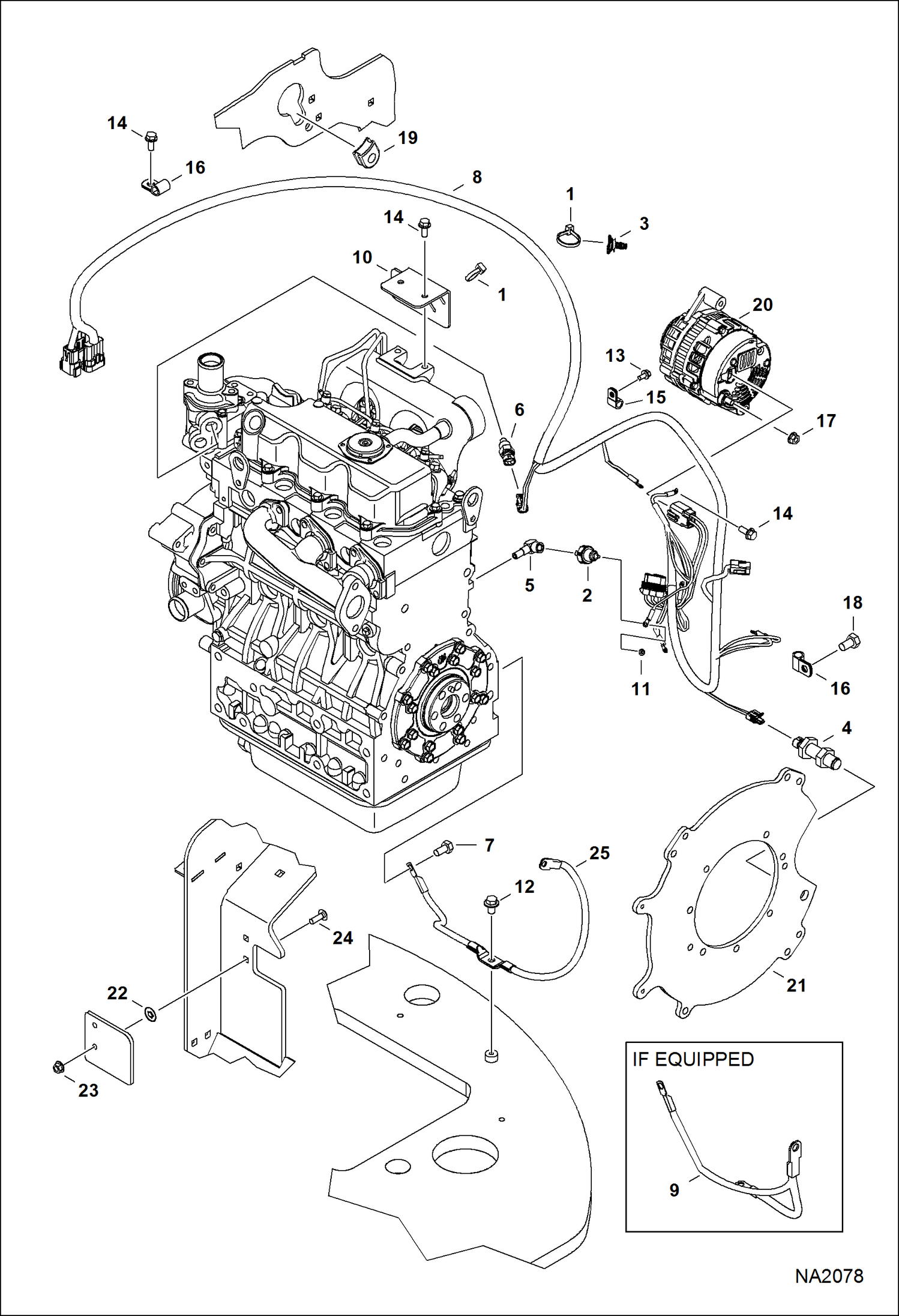

Схема запчастей Bobcat E32 - ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6631010

SWITCH, PRESS OIL ENG

3

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

4

6693921

SENSOR, RPM

5

6707040

ELBOW

6

6718414

SENDER, TEMP ENG

7

5CM1020

SCREW W/thread lock applied - Was 7120308 - D

8

7147339

HARNESS, ENG

9

7151891

HARNESS, GROUND

10

7176121

BRACKET, HARNESS

11

12D8

NUT

12

29CM1016

BOLT

13

29CM612

BOLT, FLANGED

14

29CM820

SCREW

15

30H26

CLIP

16

30H32

CLIP

17

43DM8

NUT

18

6CM1220

BOLT

19

GROMMET NLA - Order Ref. 8

20

ALTERNATOR See Illustration ALTERNATOR/ NA2234 Was 7008772 - B

21

PLATE, FLYWHEEL See Illustration ENGINE & ATTACHING PARTS/ NA2031 Was 7181443 - B

22

6675859

RETAINER

23

7239138

PLATE if equipped

24

28CM825

BOLT

Выбрано товаров: 24
