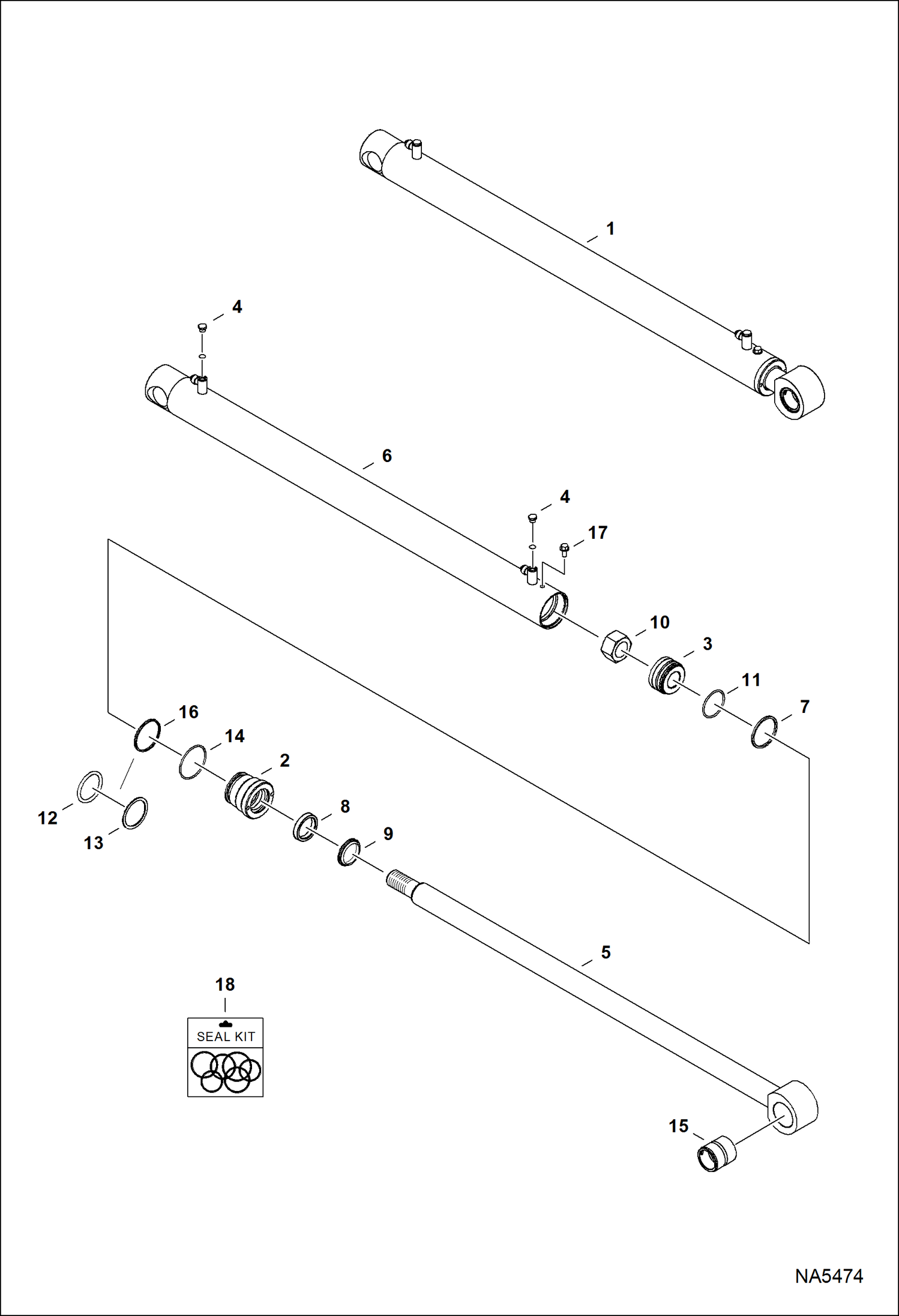

Запчасти Bobcat E32 EXTENDABLE ARM CYLINDER HYDRAULIC SYSTEM

1

CYLINDER, ARM EXTENDABLE NLA - W/O locking screw - Ref. 2-14 - Also Order Ref. 15 - Was 7170151 - A

1

7219004

CYLINDER, ARM EXTENDABLE W/ locking screw - Ref. 2-14 & 17 - Also Order Ref. 15

2

7219005

HEAD, CYL HYD Was 6539236 - B

3

6807879

PISTON

4

6812170

PLUG

4

75K3

O-RING

5

7170153

ROD, CYL Also Order Ref. 15

6

7170152

TUBE, CASE CYL includes Ref. 4 & 14 - Also Order Ref. 2 & 17 if replacing tube W/O locking screw

7

6519328

SEAL

8

6667326

SEAL

9

6690707

WIPER, ROD CYL

10

6810539

NUT

11

25K30126

O RING 10

12

25K60128

O RING 10

13

73K328

RING

14

82K140

O-RING

15

6808246

BUSHING

16

SEAL. QUAD NLA - Order Ref. 12 & 13 - Was 7207334 - A

17

7017857

SET SCREW

18

7135557

KIT, SEAL Ref. 7-14
