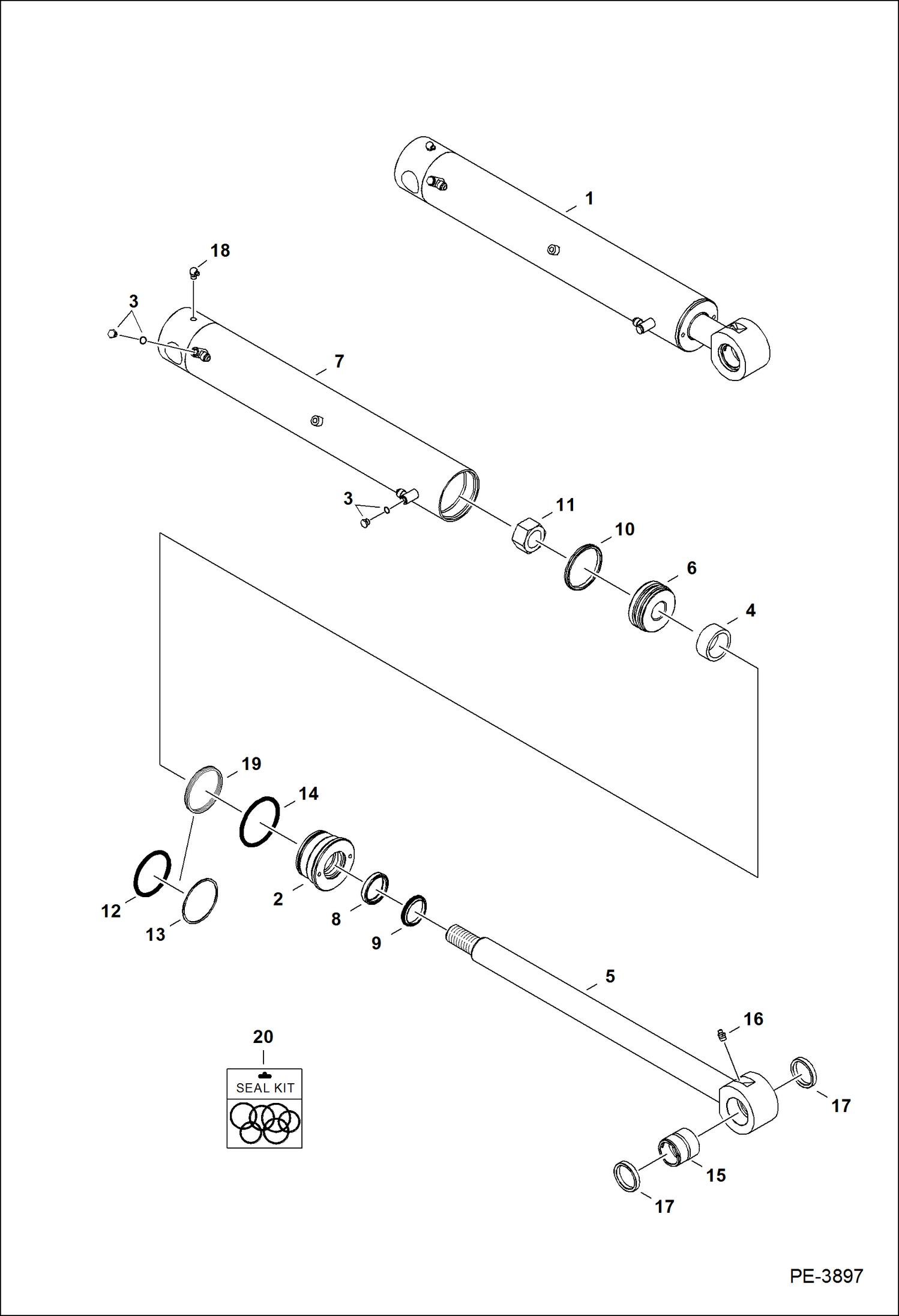

Запчасти Bobcat E32 BOOM SWING CYLINDER HYDRAULIC SYSTEM

1

7147216

CYLINDER, ASSY SWING Ref. 2-14 - Also Order Ref. 15-18

2

6586570

HEAD

3

6812170

PLUG W/ O-ring

3

75K3

O-RING

4

7147221

SPACER

5

7147222

SHAFT, W/A Also Order Ref. 15-17

6

7166329

PISTON

7

7147832

TUBE, ASSY W/Ref. 3 & 14

8

6667327

SEAL

9

6686999

WIPER, ROD CYL

10

6692326

SEAL, BP

11

6810540

NUT

12

58K234

O RING 10

13

73K234

BACK-UP RING

14

82K236

O-RING

15

6808997

BUSHING

16

10H25

FITTING, GREASE 5

17

6660075

SEAL

18

83F3

ELBOW 5 if equipped

18

12H15

FITTING, GREASE 5

19

7008354

SEAL, QUAD

20

7147833

KIT, SEAL CYLINDER Ref. 8-11, 14, & 18
