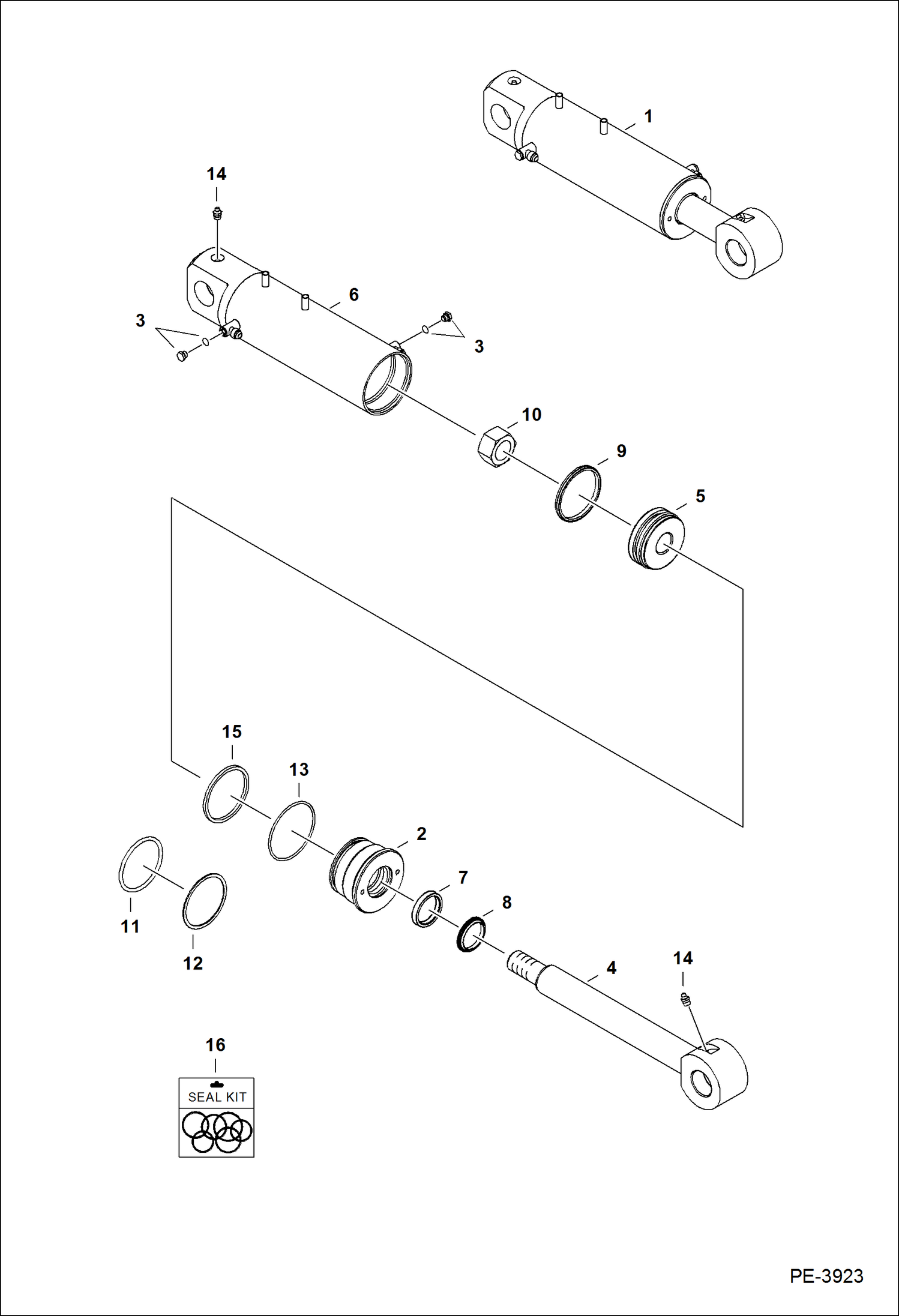

Запчасти Bobcat E32 BLADE CYLINDER HYDRAULIC SYSTEM

1

7147780

CYLINDER, ASSY BLADE Ref. 2-13 - Also Order Ref. 14

2

6534985

HEAD

3

6812170

PLUG W/ O-ring

3

75K3

O-RING

4

7147782

SHAFT, W/A Also Order Ref. 14

5

7166019

PISTON

6

7147781

TUBE, ASSY W/Ref. 3 & 13 - Also Order Ref. 14

7

6667327

SEAL

8

6686999

WIPER, ROD CYL

9

6692806

SEAL, CYLINDER

10

6810540

NUT

11

O RING 10 NLA - Order Ref, 15 - Was 58K338 - B

12

RING NLA - Order Ref. 15 - Was 73K338 - B

13

82K238

O-RING

14

10H25

FITTING, GREASE 5

15

7008353

SEAL, QUAD

16

7196901

KIT, SEAL Ref. 7-10, 13 & 15 - Was 7169292 - A
