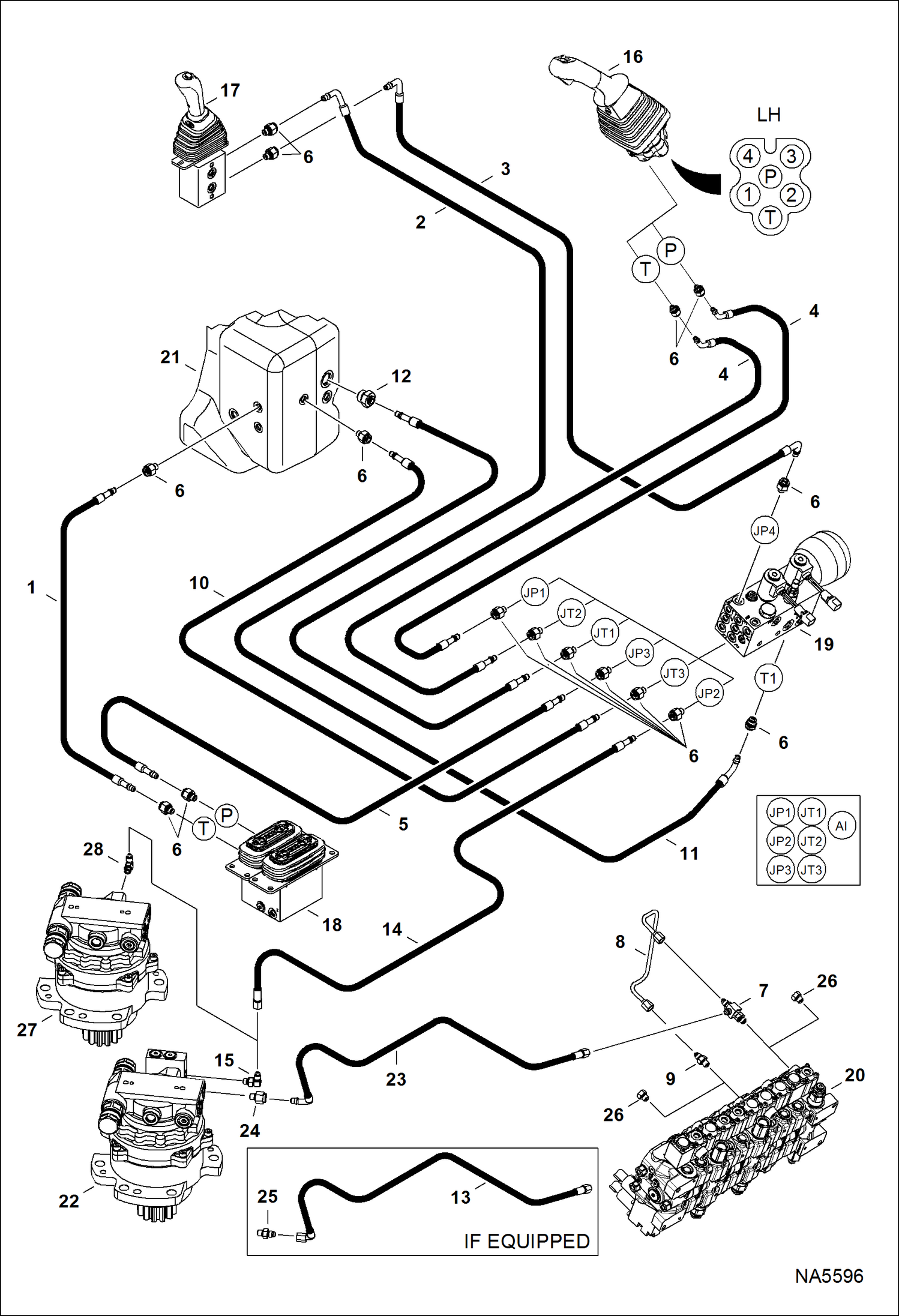

Запчасти Bobcat E26 HYDRAULIC CIRCUITRY (Pilot W/O and W/ JPS Contd) HYDRAULIC SYSTEM

1

7196580

HOSE, HYD

2

7196581

HOSE, HYD

3

7196582

HOSE, HYD

4

7198633

HOSE, HYD

5

7202316

HOSE, HYD

6

10L0604

FITTING, HYD CONNECTOR

6

78K4

O'RING

6

7011053

CLIP

7

7023611

VALVE, SHUTTLE Was 6697919 - A

7

79K4

O RING 10

8

7173459

TUBELINE, HYD

9

15KB0404

FTG HYD S Connector

9

79K4

O RING 10

10

7201281

HOSE, HYD

11

7201282

HOSE, HYD

12

10L0610

FITTING, HYD CONNECTOR

12

78K4

O'RING

12

7011053

CLIP

13

HOSE, HYD NLA - Use W/Ref. 25 - Order Ref 23 & 24 - Was 7165866

14

7202286

HOSE, HYD

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

7008320

LEVER, JOYSTICK W/PWM See Illustration LH JOYSTICK/ NA2224

17

7008581

JOYSTICK, BLADE See Illustration BLADE JOYSTICK/ NA2308

18

7180565

VALVE, PEDAL DUAL See Illustration TRAVEL CONTROLLER/ NA2979

19

7204476

MANIFOLD, HYD ASSY See Illustration MANIFOLD ASSY/ NA6098

20

7188867

VALVE, CONTROL See Illustration HYDRAULIC CONTROL VALVE/ NA6140

21

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA5593

22

7008800

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA6100 W/ timer valve

23

7210723

HOSE, HYD Use W/Ref. 24

24

10L0604

FITTING, HYD CONNECTOR Use W/Ref. 23

24

78K4

O'RING

24

7011053

CLIP

25

15KB0404

FTG HYD S Connector Use W/Ref. 13

25

79K4

O RING 10

26

24K3

PLUG

26

79K4

O RING 10

27

7219299

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA6828 W/O timer valve

28

17KB0404

FTG HYD ELBOW 90 W/O second aux

28

79K4

O RING 10

28

TEE See Illustration SECONDARY AUXILIARY KIT/ NA6184 W/second aux
