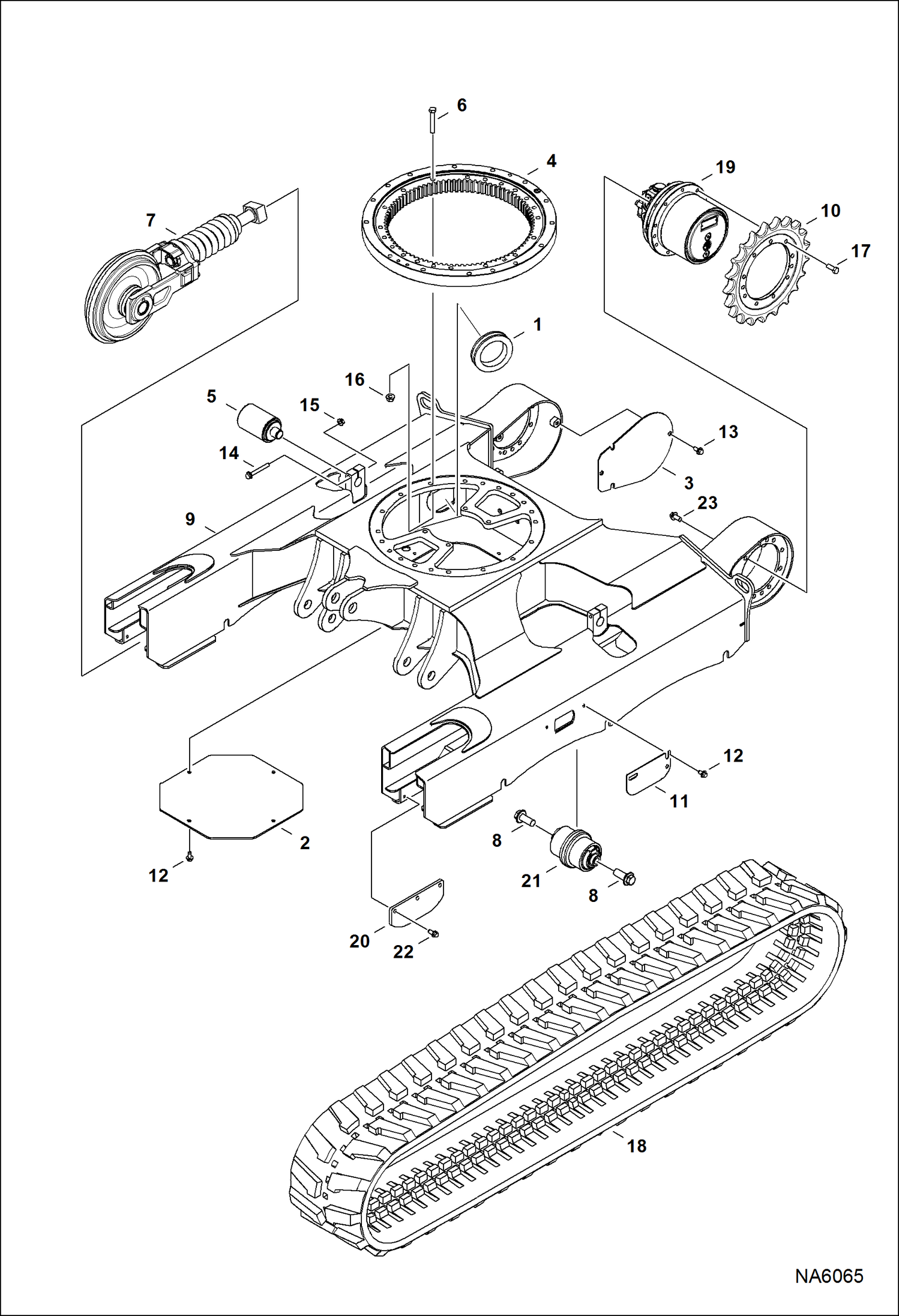

Запчасти Bobcat E26 UNDERCARRIAGE UNDERCARRIAGE

1

7127210

GROMMET

2

7142236

COVER, ACCESS

3

7142237

COVER, MOTOR

4

7153297

RING, SLEW See Illustration UPPERSTRUCTURE/ NA6026

5

7153331

ROLLER, TRACK See Illustration TRACK ROLLER/ NA6067

6

7161099

BOLT

7

7169185

IDLER, ASSY See Illustration TRACK TENSIONER & IDLER/ NA6066

8

7011925

BOLT

9

UNDERCARRIAGE NLA - 8 bottom rollers - Was 7182841 - A

9

7238354

UNDERCARRIAGE 6 bottom rollers

10

7199006

SPROCKET, MACHINED

11

7201929

COVER

12

26GM10020

BOLT

13

29CM1020

BOLT

14

29CM1080

SCREW

15

51DM10

NUT

16

51DM12

NUT

17

55CM1230

SCREW

18

TRACK, RUBBER See Illustration TRACKS/ NA6195

18

TRACK, STEEL See Illustration TRACKS/ NA2026

19

MOTOR, TRAVEL See Illustration TRAVEL MOTOR/ NA6099

20

6596396

PLATE guide - steel track

21

ROLLER, TRACK See Illustration TRACK ROLLER/ NA2024

22

26GM10025

SCREW

23

7162236

SCREW
