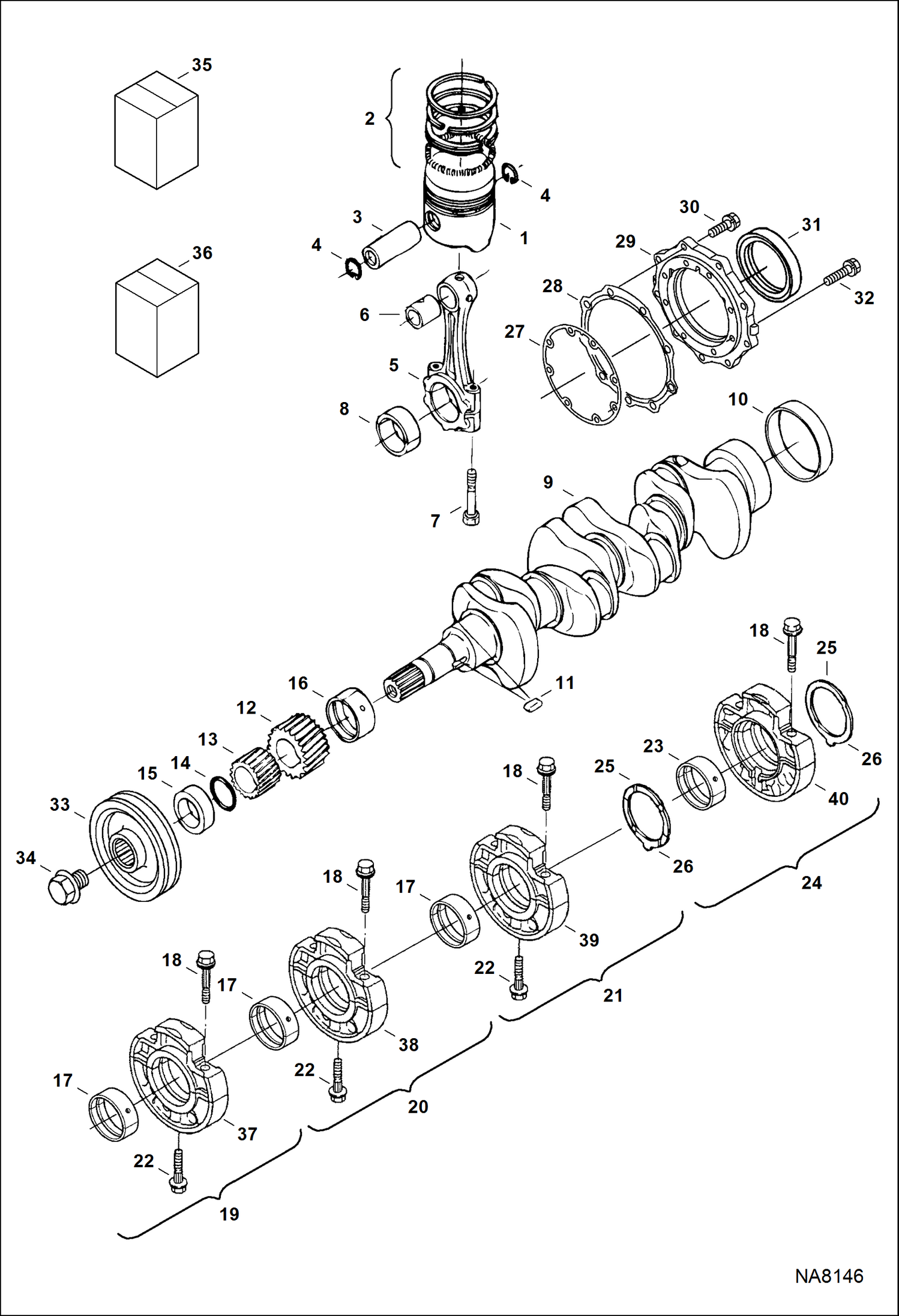

Запчасти Bobcat E26 PISTON & CRANKSHAFT POWER UNIT
№
Артикул
Название
Примечание
Количество
1
7029560
PISTON, ENG std
1
7029561
PISTON, ENG +0,50 mm
2
7029562
RING, PISTON ASSY std
2
7029563
RING, PISTON ASSY +0,50 mm
3
6657521
PIN
4
6657522
SNAP RING
5
6680495
ROD ASSY W/Ref. 6-8
6
6698624
BUSHING, PIN PISTON
7
6657526
BOLT
8
6680496
ROD BEARING std set
8
7022770
BEARING, ENG ROD CONNECTING -0,20 mm
8
7022771
BEARING, ENG ROD CONNECTING -0,40 mm
9
7030057
CRANKSHAFT assy - W/ Ref 10-15
10
6657531
SLEEVE
11
6657661
KEY
12
6657541
GEAR
13
7029564
GEAR, OIL PUMP DRIVE
14
6680268
O-RING
15
7029565
COLLAR, SHAFT
16
6680497
BEARING, ENG CRANKSHAFT std
16
6680519
BEARING, ENG MAIN -0,20 mm
16
7023134
BEARING, ENG MAIN -0,40 mm
17
6680498
BEARING, ENG MAIN std
17
7023135
BEARING, ENG MAIN -0,20 mm
17
7023136
BEARING, ENG CRANKSHAFT -0,40 mm
18
6657482
BOLT
19
6691304
CASE, BEARING W/Ref. 17, 18, 22, & 37
20
6691305
CASE, BEARING W/Ref. 17, 18, 22, & 38
21
7023133
HOUSING, BEARING W/Ref. 17, 18, 22, & 39
22
6657483
BOLT
23
6657534
BEARING std
23
6680270
BEARING -0,20 mm
23
6680271
BEARING -0,40 mm
24
6691302
BEARING CASE W/Ref. 18, 23, & 40
25
3974945
WASHER, THRUST std
25
7022767
WASHER, THRUST +0,20 mm
25
7022768
WASHER, THRUST +0,40 mm
26
7023132
WASHER, THRUST std
26
7023137
WASHER, THRUST +0,20 mm
26
7023138
WASHER, THRUST +0,40 mm
27
7029557
GASKET, BEARING CASE bearing case
28
6698617
GASKET, COVER CASE
29
6657484
COVER bearing case
30
7029559
BOLT
32
7029558
BOLT
33
7023140
PULLEY, DRIVE FAN drive
34
6680540
BOLT
35
7029577
KIT, BEARING ENG std - Ref. 8, 16, 17, 23, 25, & 26
35
7029578
KIT, BEARING ENG -0,20 mm/+0,20 mm - Ref. 8, 16, 17, 23, 25, & 26
35
7029579
KIT, BEARING ENG -0,40 mm/+0,40 mm - Ref. 8, 16, 17, 23, 25, & 26
36
7029580
KIT, PISTON ENG std - Ref. 1-4, & 6
36
7029581
KIT, PISTON ENG +0,50 mm - Ref. 1-4, & 6
37
CASE, BEARING NSS
38
CASE, BEARING NSS
39
CASE, BEARING NSS
40
CASE, BEARING NSS
Выбрано товаров: 57
