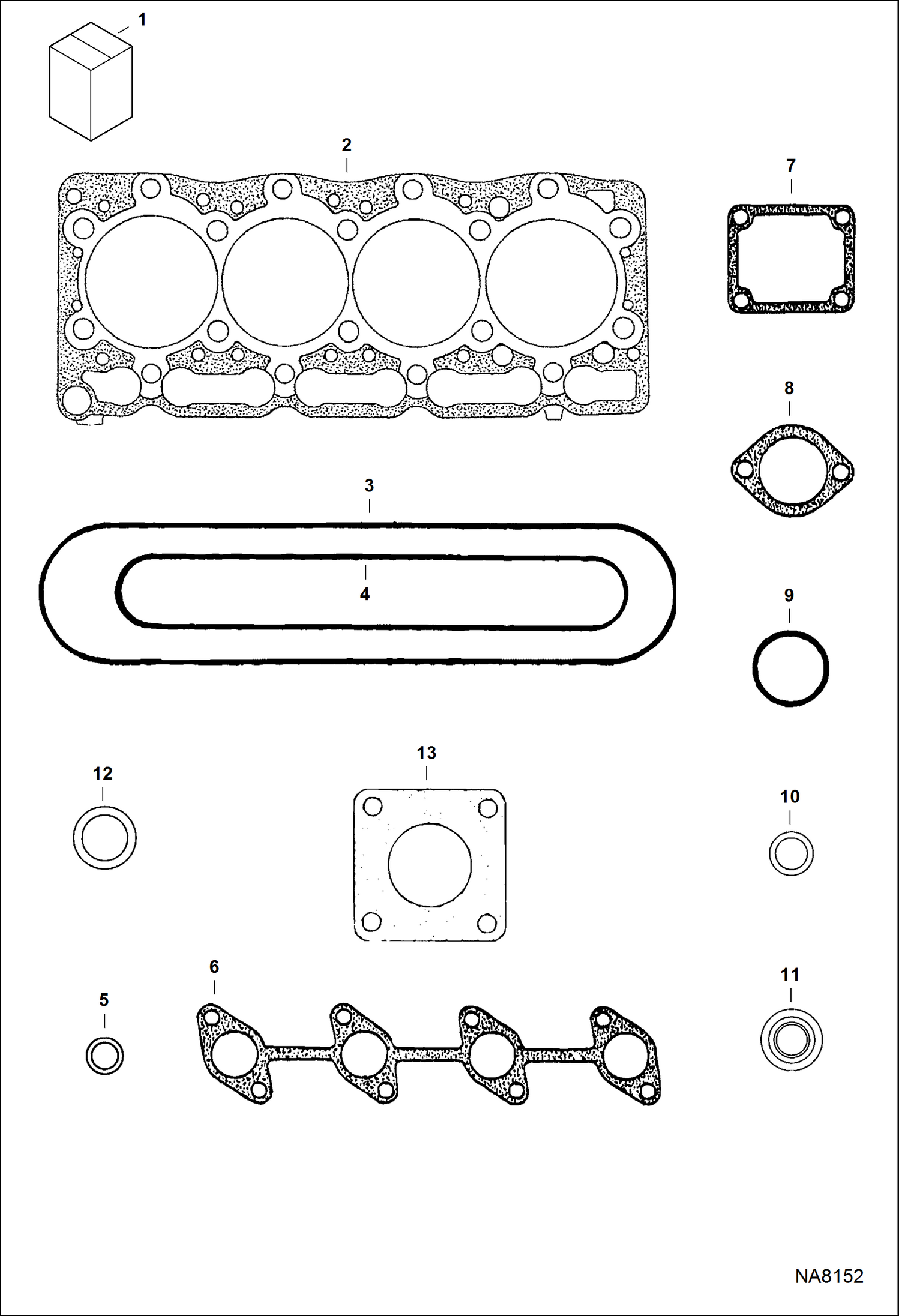

Запчасти Bobcat E26 UPPER GASKET KIT POWER UNIT

1

7010130

UPPER GASKET KIT Ref. 2-12

2

6691297

GASKET See Illustration CYLINDER HEAD/ NA6262 - cylinder head

3

6657514

GASKET See Illustration ROCKER ARM COVER/ B26330 - valve cover

4

6657493

GASKET See Illustration MANIFOLDS/ NA6268 - intake manifold

5

6655218

GASKET See Illustration NOZZLE HOLDER & GLOW PLUG/ B26341 - injector nozzle

6

6657494

GASKET See Illustration MANIFOLDS/ NA6268 - exhaust manifold

7

6657583

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B26348 - thermostat housing

8

6684863

GASKET See Illustration WATER FLANGE & THERMOSTAT/ B26348 - thermostat

9

6655872

HEAT SEAL See Illustration NOZZLE HOLDER & GLOW PLUG/ B26341 - injector nozzle

10

6683009

O-RING See Illustration ROCKER ARM COVER/ B26330 - oil filler cap

11

6599116

GASKET See Illustration ROCKER ARM COVER/ B26330 - valve cover nut

12

6672436

SEAL See Illustration VALVE & ROCKER ARM/ NA8148 - valve stem

13

6960259

GASKET not used on this model
