Запчасти Bobcat E26 SWIVEL ASSY HYDRAULIC SYSTEM

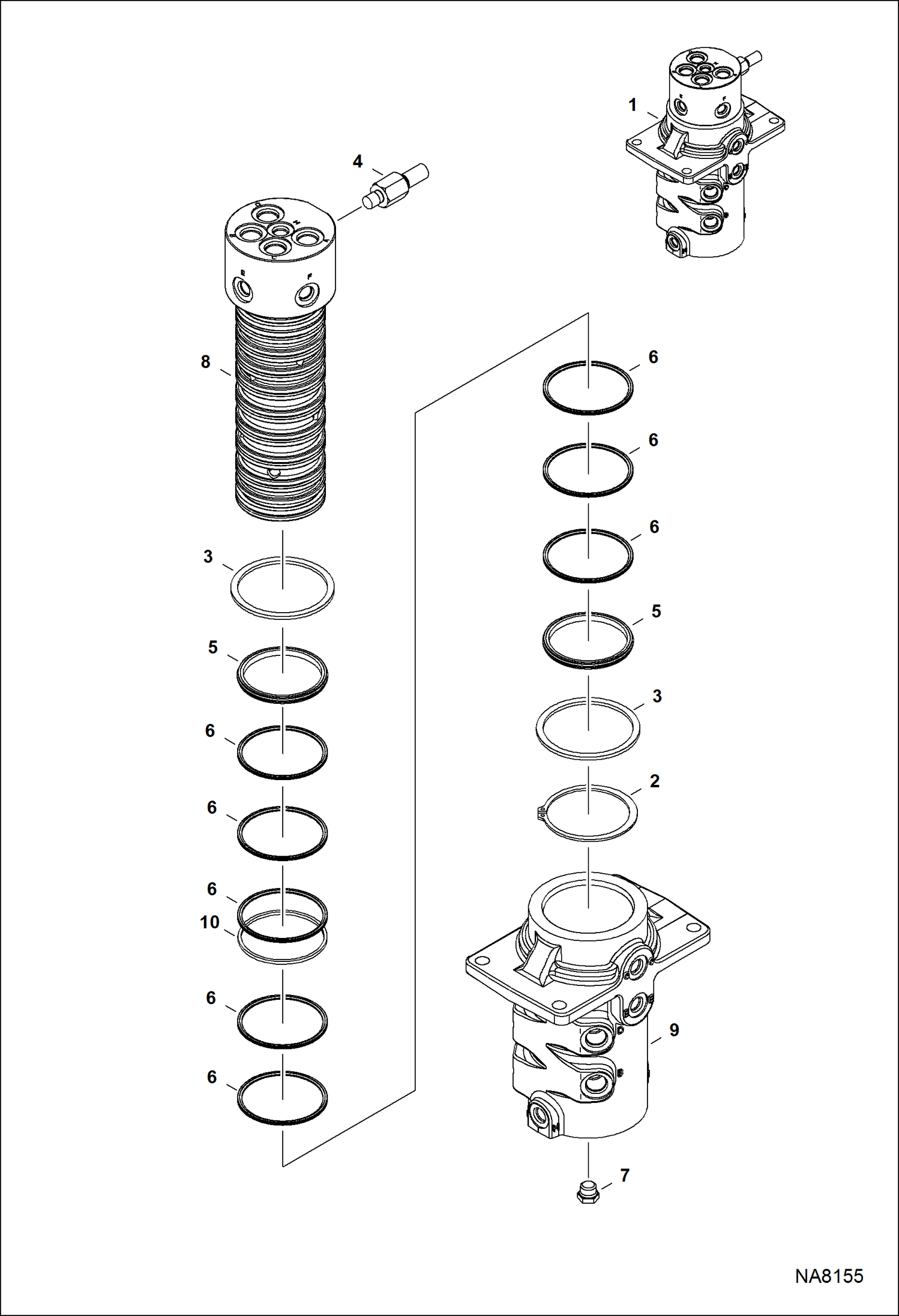

Схема запчастей Bobcat E26 - SWIVEL ASSY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7143734

SWIVEL, HYD ASSY Ref. 2-10

2

6662076

RING

3

6674221

WASHER

4

6810029

STOP

5

7100535

SEAL Was 6810610 - A

6

6810813

SEAL, OIL 2 pc seal

7

6812171

PLUG

7

79K6

O RING 10

8

7143717

SPOOL, SWIVEL

9

BARREL NLA - Order Ref. 1

10

6679248

RING

Выбрано товаров: 11
