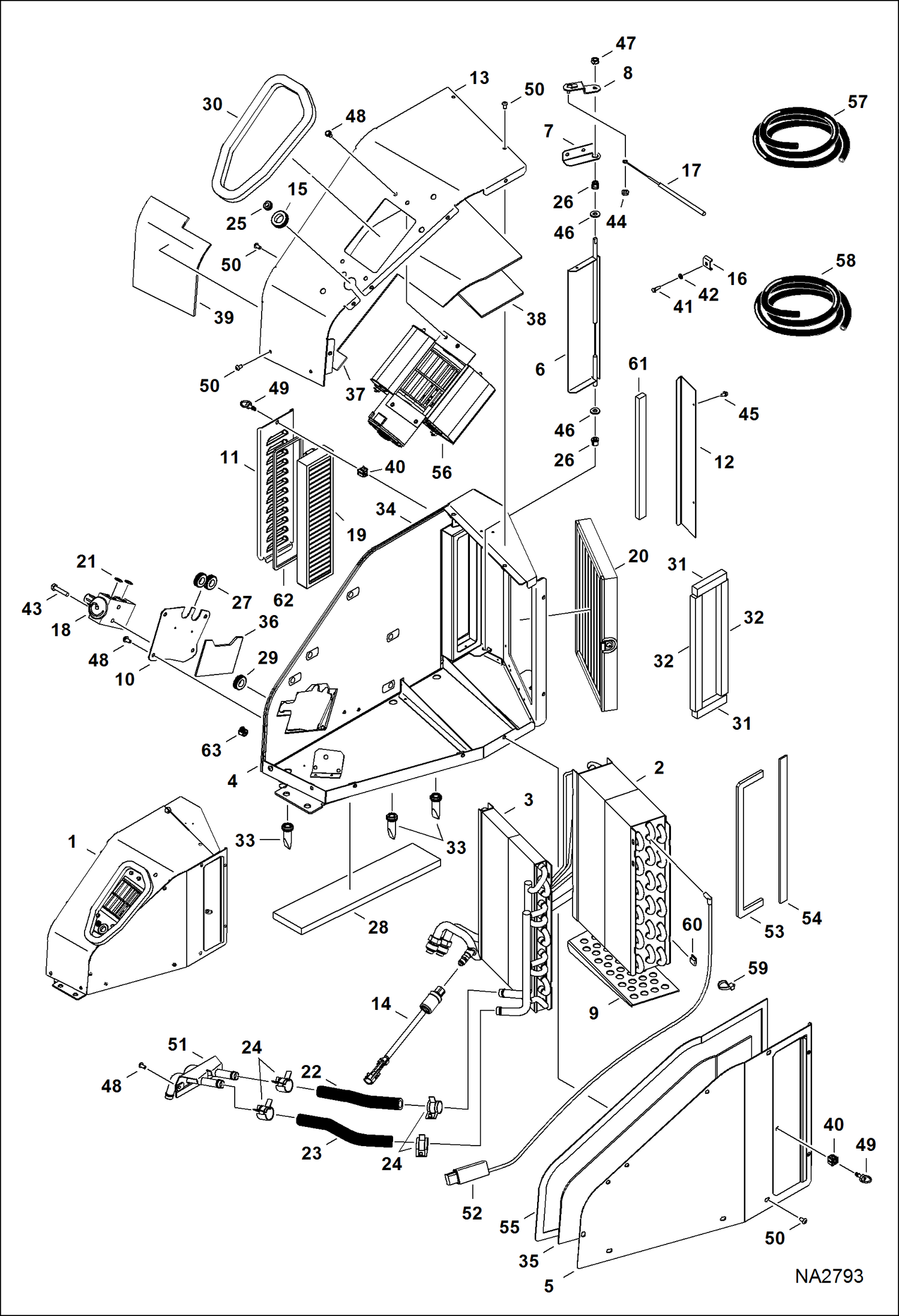

Запчасти Bobcat E26 HEATER & A/C (HVAC Assembly) (S/N AJRY11001 - ) ACCESSORIES & OPTIONS

1

7018005

HVAC ASSY Ref. 2-62

2

7017995

EVAPORATOR

3

7011125

COIL, HEATER

4

7017997

HOUSING, BASE Was 7019997 - D

5

7018000

COVER, ASSY

6

7011122

DOOR, CONTROL AIR

7

7011121

BRACKET

8

7011120

LEVER

9

7011119

PLATE, SUPPORT

10

7017996

BRACKET, VALVE

11

7011118

LOUVER

12

7011117

PLATE

13

7017998

COVER Was 7019998 - D

14

6679085

SWITCH LPCO - Was 6697954 - A

15

7011128

HARNESS, HVAC harness not shown - grommet included

16

7011112

CLAMP, CABLE

17

7011111

CABLE, A/C

18

7008034

BLOCK, VALVE A/C

19

7010331

FRESH AIR FILTER

20

7010332

FILTER RECIRCULATION

21

7009977

O-RING #8 - Was 6675538 - A

22

HOSE NLA - 5.9'' (150 mm) long - Order Ref. 57

23

HOSE NLA - 6.9'' (175 mm) long - Order Ref. 57

24

7003458

CLAMP, HOSE

25

6684947

GROMMET

26

7011110

BUSHING

27

7003459

GROMMET

28

7011109

FOAM

29

7003459

GROMMET

30

SEAL, FOAM NLA - 20'' (508 mm) long - Order Ref. 58

31

SEAL, FOAM NLA - 2.75'' (70 mm) long - Order Ref. 58

32

SEAL, FOAM NLA - 9.25'' (235 mm) long - Order Ref. 58

33

7018001

VALVE, DRAIN

34

7011108

INSULATION, HEATER

35

7011107

INSULATION, HEATER

36

7011106

INSULATION, HEATER

37

7011105

INSULATION, HEATER

38

7011104

INSULATION, HEATER

39

7011103

INSULATION, HEATER

40

6677555

RECEPTACLE

41

7011102

BOLT

42

6693223

WASHER

43

6691534

SCREW

44

6679675

NUT

45

6677119

SCREW

46

7011101

WASHER

47

7011100

NUT

48

6691532

SCREW Was 6677118 - A

49

7011099

STUD

50

6691532

SCREW Was 7011098

51

7018002

CONNECTOR

52

7008040

MODULE, DE-ICER ELECTRONIC

53

6696953

FOAM

54

7011096

FOAM

55

6693236

FOAM

56

7011131

BLOWER, HEATER & A/C

56

7023573

RESISTOR

57

6565977

HOSE bulk - sold per foot - Was 7003457 - A

58

7003460

SEAL, FOAM

59

6684948

STRAP TIE

60

6676539

CLIP

61

6693234

FOAM

62

7018003

SEAL, FOAM

63

7003511

PLUG
