Запчасти Bobcat E26 HEATER & A/C (HVAC Option) ACCESSORIES & OPTIONS

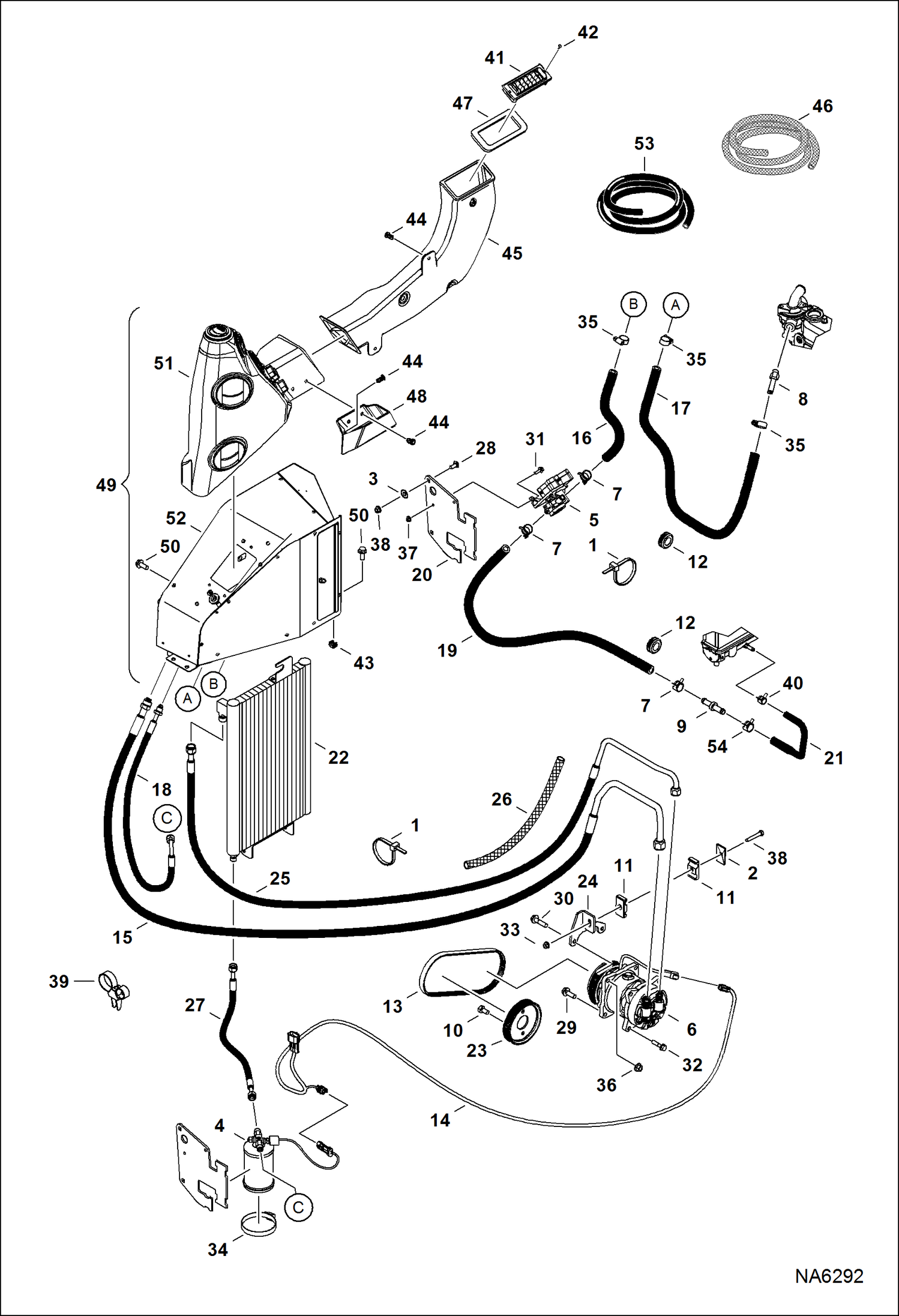

Схема запчастей Bobcat E26 - HEATER & A/C (HVAC Option) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6652521

PLATE

3

6675859

RETAINER

4

7025095

RECEIVER, DRIER A/C Was 6680311 - B

5

7003456

VALVE, MOTORIZED ASSY Was 6693147 - B

6

7023577

COMPRESSOR, A/C Was 6698358 - A

7

5HM20

CLAMP

8

6731085

ELBOW

9

6732023

CONNECTOR

10

6733378

SCREW

11

7021798

CLAMP, TUBELINE

12

7136776

GROMMET

13

7197814

BELT, COMPRESSOR A/C

14

7168895

HARNESS, AC CLUTCH

15

7215531

HOSE, A/C ASSY W/O charge port - Was 7209338 - A

15

7223760

HOSE, A/C ASSY W/ charge port

15

7009978

O-RING #10

16

HOSE, HEATER NLA - 450 mm (17.7'') long - Order Ref. 53

17

HOSE, HEATER NLA - 1845 mm (72.6'') long - Order Ref. 53

18

7174121

HOSE, A/C ASSY W/O charge port

18

7223761

HOSE, A/C ASSY W/ charge port

18

7009976

O-RING #6

19

HOSE, HEATER NLA - 1100 mm (43.3'') long - Order Ref. 53

20

7187716

HOLDER

21

7193565

HOSE HEATER

22

7194836

CONDENSER, A/C

23

7199269

PULLEY

24

7211188

BRACKET

25

7215532

HOSE, A/C ASSY Was 7209339 - A

25

7009977

O-RING #8

26

COVER, HOSE NLA - 320 mm (12.6'') long - Order Ref. 46

27

7215530

HOSE, A/C ASSY Was 7204294 - A

27

7009976

O-RING #6

28

28CM820

BOLT

29

29CM1030

BOLT

30

29CM1040

BOLT

31

29CM620

SCREW

32

29CM835

BOLT

33

53CM850

SCREW

34

42H48

CLAMP 5

35

42HL91

CLAMP, HOSE

36

43DM10

NUT

37

43DM6

NUT

38

43DM8

NUT

39

6678668

STRAP, DUAL TIE

40

5HM14

CLAMP

41

6676713

LOUVER

42

6814024

SCREW

43

7155411

NUT

44

7160383

RIVET, BIRD CAGE

45

7162750

DUCT, AIR

46

7187433

COVER, HOSE BULK/FT bulk - sold per foot

47

7171356

SEAL, DUCT

48

7174321

CONTAINER, STORAGE

49

HVAC ASSY NLA - Order Ref. 51 & 52

50

29CM1025

BOLT

51

DUCT See Illustration HEATER & A/C/ NA2794

52

7018005

HVAC ASSY See Illustration HEATER & A/C/ NA2793

52

7025145

HVAC ASSY See Illustration HEATER & A/C/ NA6844

53

6565977

HOSE bulk - sold per foot

54

5HM18

CLAMP

Выбрано товаров: 61
