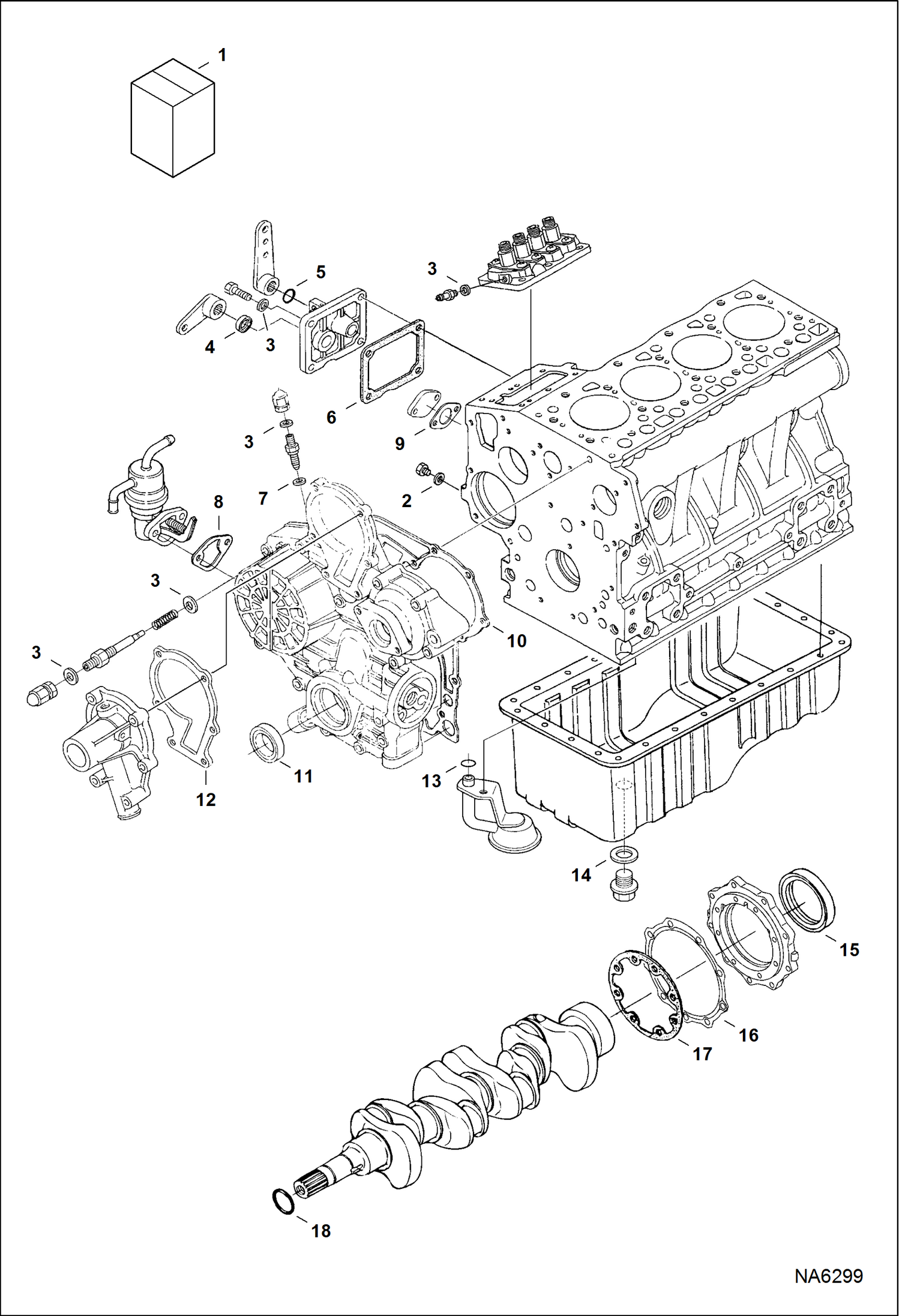

Запчасти Bobcat E26 LOWER GASKET KIT POWER UNIT

1

6698637

KIT, GASKET ENG LOWER Ref. 2-18

2

3974095

MET-GASK See Illustration CRANKCASE/ NA6260

3

3974972

GASKET See Illustration IDLE APPARATUS & STOP SOLENOID/ B26337 See Illustration SPEED CONTROL PLATE/ NA6267 See Illustration NOZZLE HOLDER & GLOW PLUG/ B26341

4

6598703

SEAL See Illustration SPEED CONTROL PLATE/ NA6267 - speed control shaft

5

6680277

O-RING See Illustration SPEED CONTROL PLATE/ NA6267 - speed control shaft

6

6657578

GASKET See Illustration SPEED CONTROL PLATE/ NA6267 - speed control plate

7

6687687

GASKET See Illustration IDLE APPARATUS & STOP SOLENOID/ B26337 - idle assy

8

7010133

GASKET, PUMP FUEL See Illustration INJECTION PUMP & FUEL PUMP/ NA6266

9

6657574

GASKET See Illustration GOVERNOR/ B26343 - governor plate

10

6657479

GASKET See Illustration GEARCASE/ NA6263 - gear case

11

6657603

SEAL See Illustration GEARCASE/ NA6263 - front oil

12

6657610

GASKET See Illustration WATER PUMP/ NA6111 - water pump

13

6680284

O-RING See Illustration OIL PAN/ NA6261 - oil screen

14

6691295

GASKET See Illustration OIL PAN/ NA6261 - drain plug

15

6657481

SEAL See Illustration PISTON & CRANKSHAFT/ B26335 - rear crankshaft

16

6698617

GASKET, COVER CASE See Illustration PISTON & CRANKSHAFT/ B26335

17

6657480

GASKET See Illustration PISTON & CRANKSHAFT/ B26335 - bearing case

18

6680268

O-RING See Illustration PISTON & CRANKSHAFT/ B26335 - crankshaft
