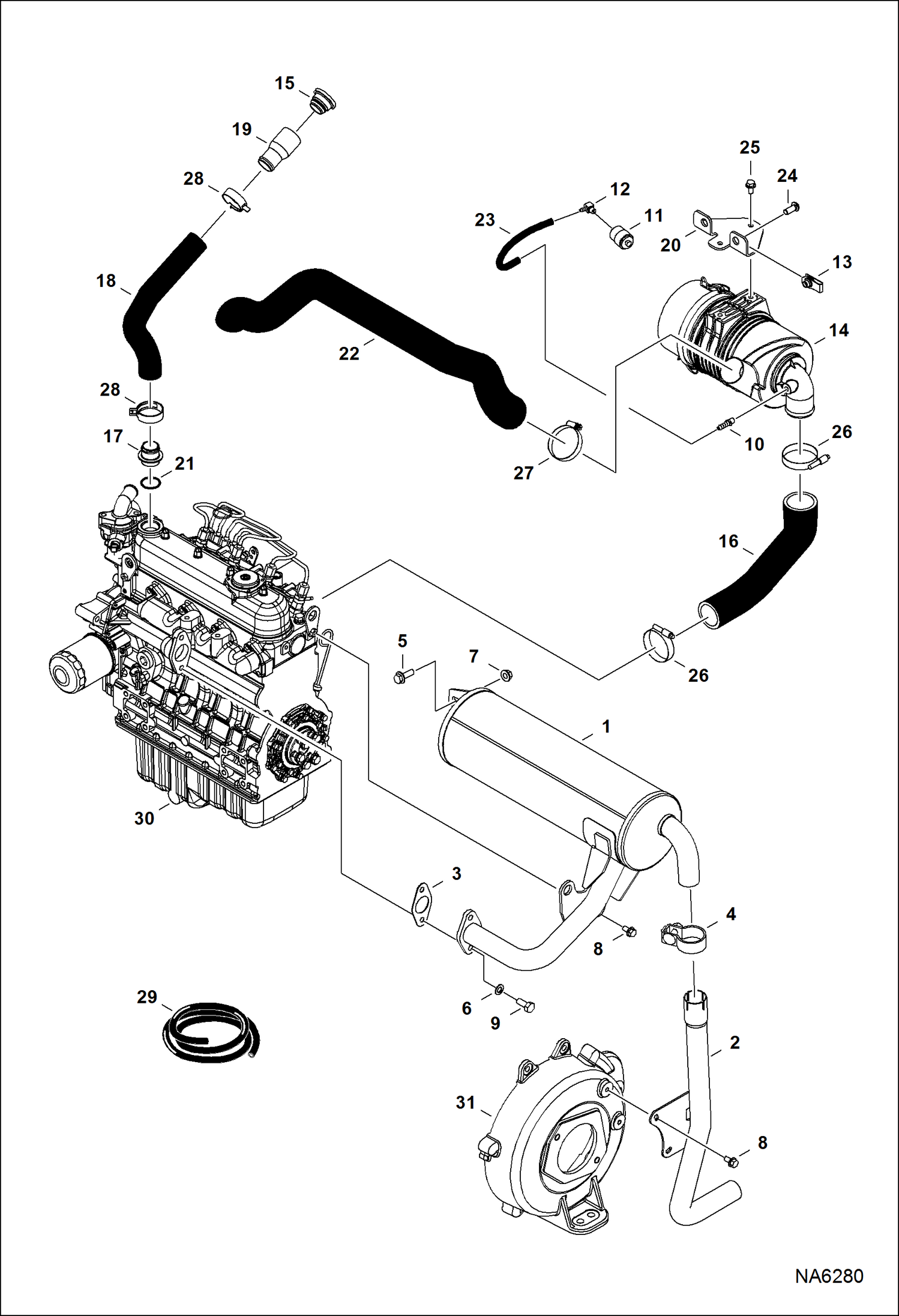

Запчасти Bobcat E26 ENGINE & ATTACHING PARTS (Air Cleaner, Muffler) POWER UNIT

1

7191061

MUFFLER, EXHAUST

1

6661062

PLUG

2

7212821

TUBE, EXHAUST Was 7191062 - A

3

7194159

GASKET

4

7200895

CLAMP, PIPE

5

29CM1030

BOLT

6

29E6

WASHER

7

51DM10

NUT

8

59CM816

BOLT

9

5CM1025

BOLT

10

6505813

CONNECTOR

11

6515007

GAUGE

12

6515156

CONNECTOR

13

6675722

NUT

14

6693337

FILTER, AIR See Illustration AIR CLEANER/ PE3875

15

6703736

CAP

16

7165619

HOSE, AIR INTAKE

17

7173947

CONNECTOR

18

7173948

HOSE, DRAIN OIL ENG

19

7173949

CONNECTOR

20

7191067

BRACKET, AIR CLEANER

21

7202857

O-RING

22

7203416

HOSE, AIR FORMED

23

HOSE, AIR NLA - 196 mm (7.72'') long - Order Ref. 29

24

27CM1025

BOLT

25

27CM816

SCREW

26

42HC250

CLAMP

27

42HL250

CLAMP

28

5HM42

HOSECLAMP Was 5HM43 - A

29

6557720

HOSE bulk - sold per foot

30

6696963

ENG, V1505 26.9 HP EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6288

31

HOUSING See Illustration ENGINE & ATTACHING PARTS/ NA6281
