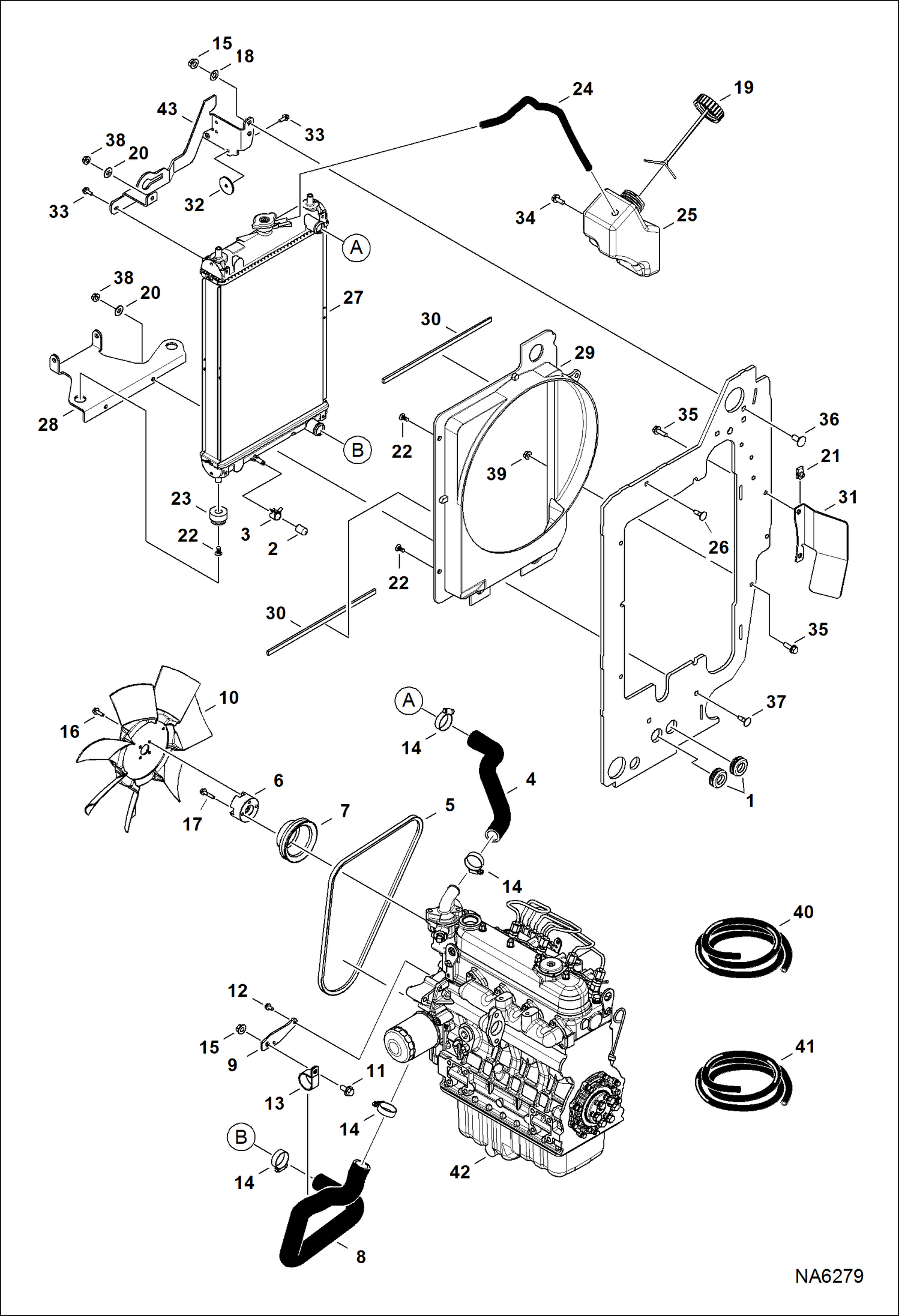

Запчасти Bobcat E26 ENGINE & ATTACHING PARTS (Radiator Water Exchanger) POWER UNIT

1

6810133

GROMMET

2

7197401

PLUG, RADIATOR

3

5HM16

CLAMP

4

7159514

HOSE, WATER UPPER

5

7198463

BELT, ALT

6

7223697

SPACER Was 7194498 - A

7

6657585

PULLEY

7

6691342

PULLEY HVAC

8

7201735

HOSE, WATER LOWER

9

7201736

PLATE, HOLDER

10

7203445

FAN

11

29CM1020

BOLT

12

29CM612

BOLT, FLANGED

13

30H60

CLIP

14

42HL150

CLAMP, HOSE

15

43DM10

NUT

16

59CM620

SCREW

17

59CM630

SCREW

18

6674264

RETAINER NUT

19

7218789

CAP, OVERFLOW COOLANT Was 6675551

20

6675859

RETAINER

21

6676169

NUT

22

7012810

PLUG

23

7139574

MOUNT RUBBER

24

HOSE NLA - 440 mm (17.32'') long - Order Ref. 40

25

7188966

TANK, WATER COOLANT

26

7189004

MOUNT, RADIATOR

27

7194799

EXCHANGER, WATER RADIATOR

27

7022636

CAP, RADIATOR

28

7194800

MOUNT, RADIATOR

29

7195526

SHROUD, FAN

30

SEAL NLA - 329 mm (12.95'') long - Order Ref. 41

31

7199713

GUARD, FAN

32

7200226

SPACER

33

29CM616

BOLT

34

29CM820

SCREW

35

29CM825

BOLT

36

33CM1025

BOLT

37

33CM825

BOLT

38

43DM8

NUT

39

51DM8

NUT

40

6577822

HOSE bulk - sold per foot

41

7135394

SEAL BULK bulk - sold per foot

42

6696963

ENG, V1505 26.9 HP EPA IT4 / EU STG IIIB See Illustration ENGINE & GASKET KITS/ NA6288

43

7189004

MOUNT, RADIATOR
