Запчасти Bobcat E26 ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

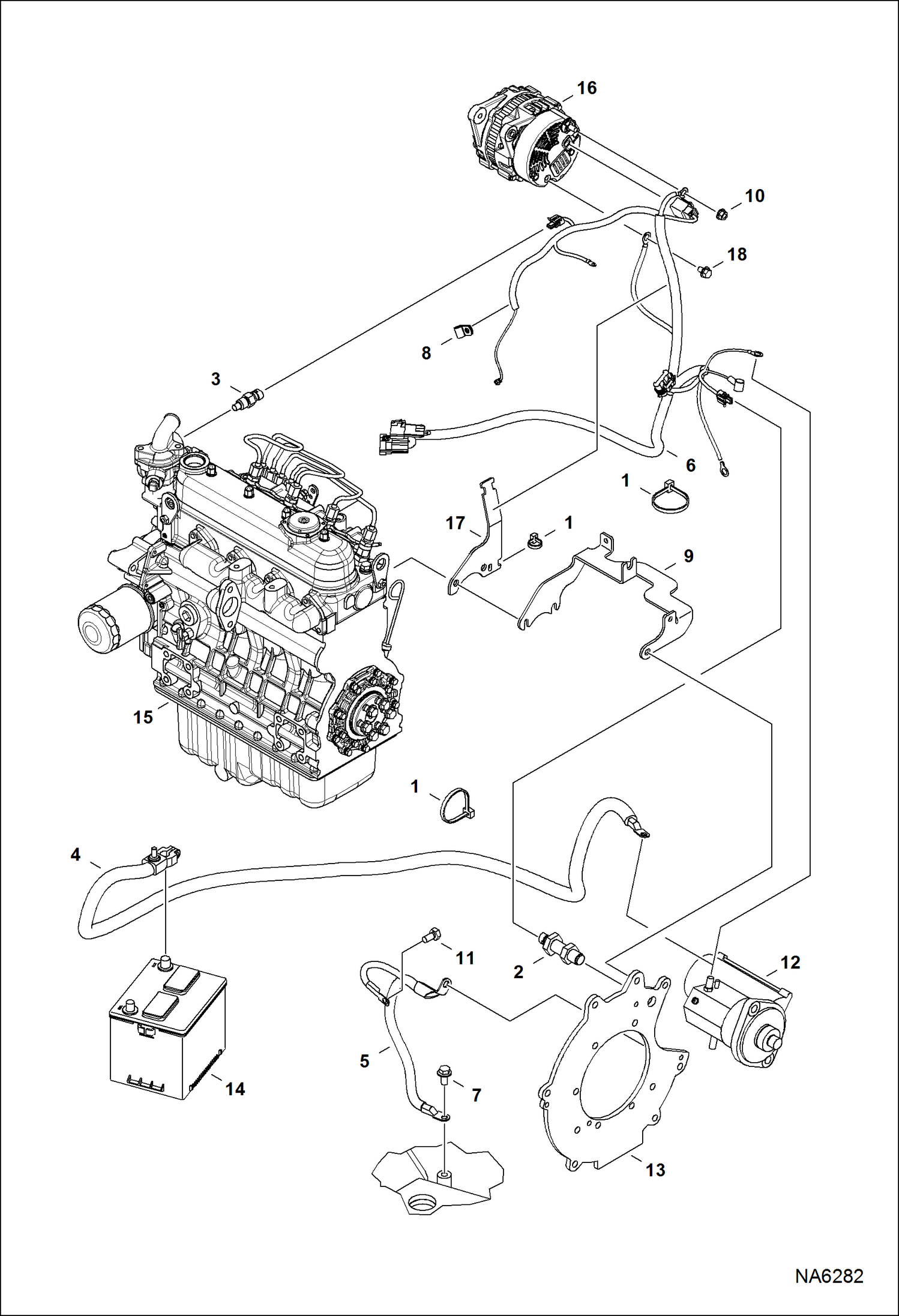

Схема запчастей Bobcat E26 - ENGINE ELECTRICAL CIRCUITRY ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6693921

SENSOR, RPM

3

6718414

SENDER, TEMP ENG

4

7192700

CABLE, POSITIVE

5

7161922

CABLE, NEGATIVE

6

7195839

HARNESS, ENG

7

29CM1020

BOLT

8

30H22

CLIP

9

BRACKET See Illustration THROTTLE CONTROL/ NA6275

10

43DM8

NUT

11

5CM1020

SCREW

12

STARTER See Illustration STARTER/ D2437

13

PLATE, FLYWHEEL See Illustration ENGINE & ATTACHING PARTS/ NA6281

14

BATTERY See Illustration CONTROLS ELECTRICAL/ NA6283

15

ENGINE See Illustration ENGINE & GASKET KITS/ NA6288

16

7008772

ALTERNATOR, 90 AMP See Illustration ALTERNATOR/ NA2234

17

7201737

BRACKET, HARNESS

18

29CM812

BOLT

Выбрано товаров: 18
