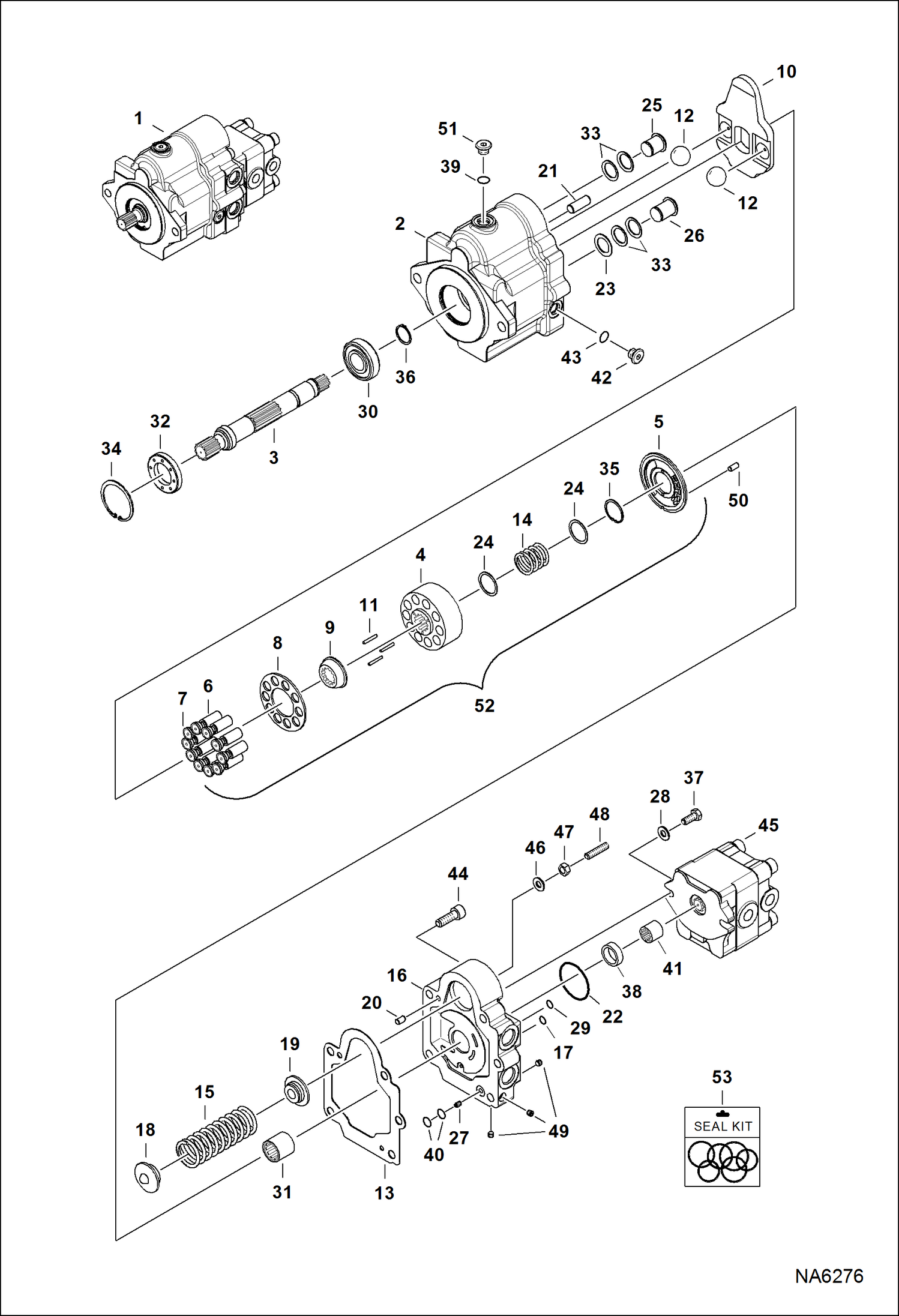

Запчасти Bobcat E26 HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

1

7209326

PUMP, HYD PISTON Ref. 2-51

2

HOUSING NSS

3

SHAFT NSS

4

BARREL, CYLINDER NSS

5

PLATE, VALVE NSS

6

PISTON NSS

7

SHOE NSS

8

HOLDER, SHOE NSS

9

HOLDER, BARREL NSS

10

SWASHPLATE NSS

11

NEEDLE NSS

12

BALL NSS

13

GASKET NSS

14

SPRING NSS

15

SPRING NSS

16

HOUSING NSS

17

O-RING NSS

18

HOLDER, SPRING NSS

19

GUIDE, SPRING NSS

20

PIN NSS

21

PIN NSS

22

O-RING NSS

23

WASHER NSS

24

RETAINER NSS

25

PIN, STOPPER NSS

26

PIN, STOPPER NSS

27

PIN NSS

28

WASHER NSS

29

O-RING NSS

30

BEARING, BALL NSS

31

BEARING, NEEDLE NSS

32

SEAL, OIL NSS

33

SPRING, DISH NSS

34

RING, SNAP NSS

35

RING, SNAP NSS

36

RING, SNAP NSS

37

SCREW NSS

38

COLLAR NSS

39

O-RING NSS

40

O-RING NSS

41

COUPLING NSS

42

PLUG NSS

43

O-RING NSS

44

SCREW NSS

45

7023324

PUMP, GEAR

46

WASHER NSS

47

NUT NSS

48

SCREW NSS

49

PLUG NSS

50

PIN, SPRING NSS

51

PLUG NSS

52

7023323

KIT, ROTARY GROUP

53

6688091

KIT Ref. 13, 17, 22, 29, 32, 39, 40, 43, 46
