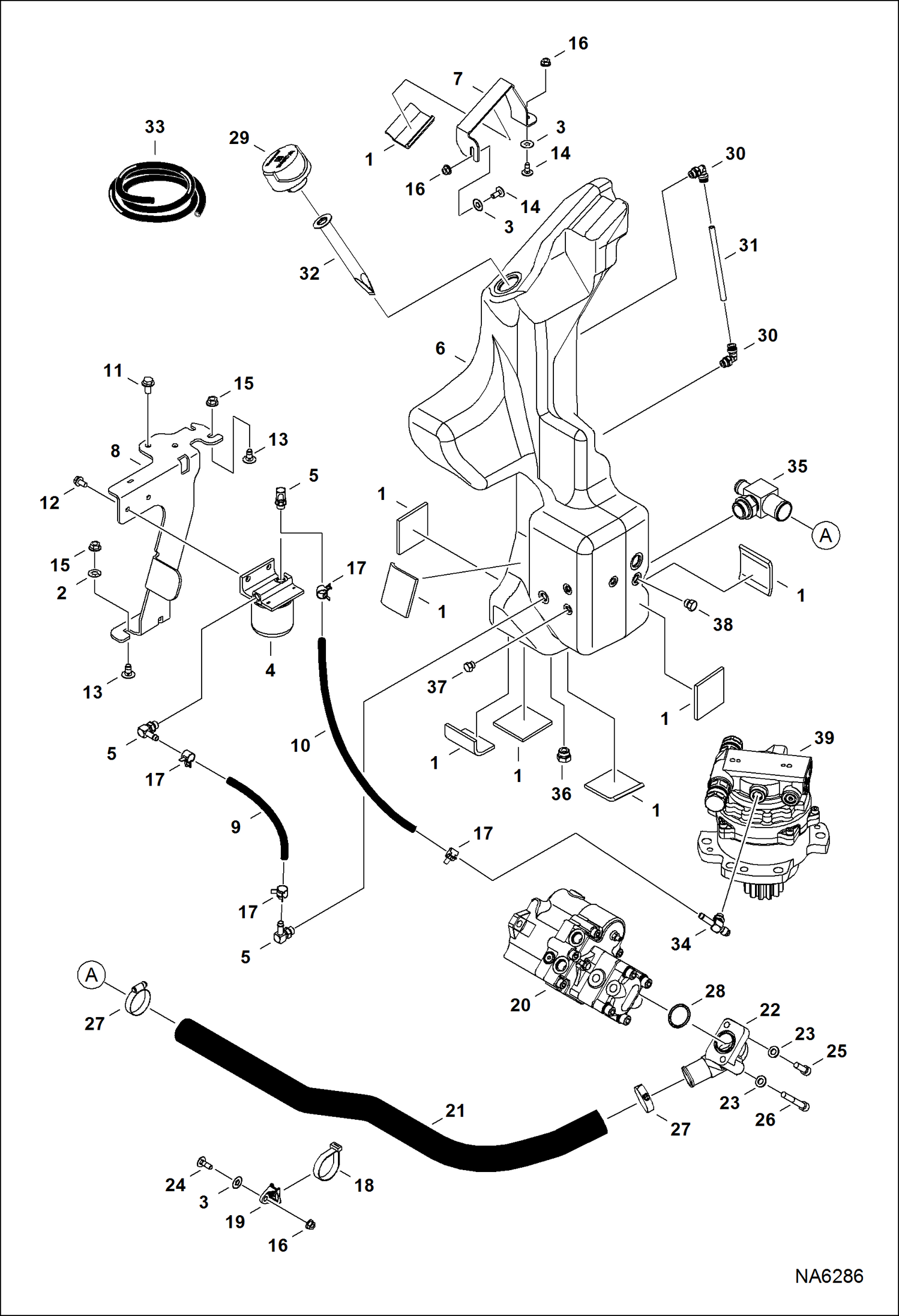

Запчасти Bobcat E26 HYDRAULIC CIRCUITRY (Tank & Pump) HYDRAULIC SYSTEM

1

6578278

PAD

2

6674264

RETAINER NUT

3

6675859

RETAINER

4

7008929

FILTER, OIL HYD ASSY

4

7009365

FILTER, OIL HYD replacement filter

5

7174807

ELBOW

5

79K6

O RING 10

6

TANK, HYD NLA - Order 7225836 - Was 7191278

6

7235836

TANK, HYD

7

7191283

HOLDER

8

7191284

BRACKET, FILTER

9

HOSE, DRAIN NLA - 210 mm (8.27'') long - Order Ref. 33

10

HOSE, DRAIN NLA - 593 mm (23.35'') long - Order Ref. 33

11

29CM1020

BOLT

12

29CM816

SCREW

13

33CM1020

BOLT

14

33CM820

BOLT

15

43DM10

NUT

16

43DM8

NUT

17

5HM16

CLAMP

18

6678669

STRAP

19

6678818

MOUNT

20

7209326

PUMP, HYD PISTON See Illustration HYDRAULIC PISTON PUMP/ NA6276

21

7175673

HOSE, HYD FORMED

22

7188917

INLET, PUMP

23

1EM100

WASHER

24

33CM825

BOLT

25

3GM1030

SCREW

26

3GM1070

BOLT

27

42HL200

CLAMP, HOSE

28

58K222

O-RING

29

6692836

CAP, HYDRAULIC TANK

29

79K20

O RING 10

30

7013179

FITTING

30

79K6

O RING 10

31

7013180

TUBE

32

7128723

SCREEN

33

6586251

HOSE bulk - sold per foot

34

7174613

TEE

35

7191282

FITTING, HYD TEE See Illustration HYDRAULIC CIRCUITRY/ NA6285

35

79K16

O RING 10

36

24K6

FITTING

36

79K8

O RING 10

37

24K3

PLUG

37

79K4

O RING 10

38

24K5

PLUG

38

79K6

O RING 10

39

7008800

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA6100 W/ timer valve

39

7219299

MOTOR, HYD SLEW See Illustration SLEW MOTOR/ NA6828 W/O timer valve
