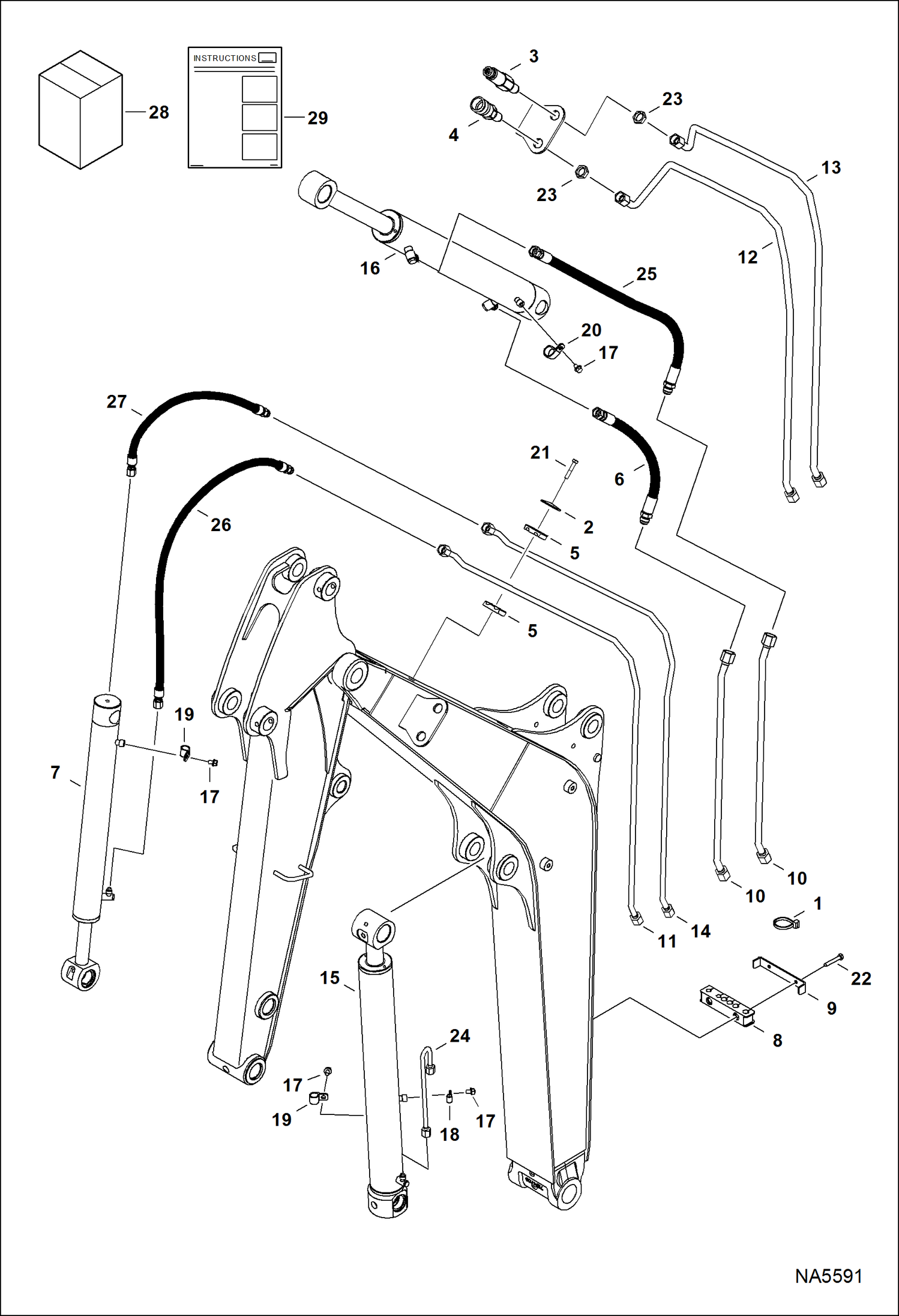

Запчасти Bobcat E26 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6652521

PLATE

3

6676444

COUPLER, FF MALE

4

6676446

COUPLER, FF FEMALE

5

6701892

CLAMP

6

7158560

HOSE, HYD

7

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ NA6021

8

7160715

CLAMP, TUBELINE

9

7160716

BRACKET

10

7160717

TUBELINE, HYD

11

7162356

TUBELINE, HYD

12

7207341

TUBELINE, HYD

13

7207342

TUBELINE, HYD

14

7162364

TUBELINE, HYD

15

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA6019

16

CYLINDER, ARM See Illustration ARM CYLINDER/ NA6017

17

29CM812

BOLT

18

30H22

CLIP

19

30H42

CLAMP

20

30H50

CLIP

21

53CM845

BOLT

22

53CM850

SCREW

23

86F7

LOCK NUT

24

7160290

TUBELINE, HYD

25

7165083

HOSE

26

7160713

HOSE, HYD 1020 mm (40.16'') long - for std arm

26

7165082

HOSE, HYD 1300 mm (51.18'') long - for long arm

27

7160714

HOSE, HYD 600 mm (23.63'') long - for std arm

27

7193555

HOSE, HYD 875 mm (34.45'') long - for long arm
