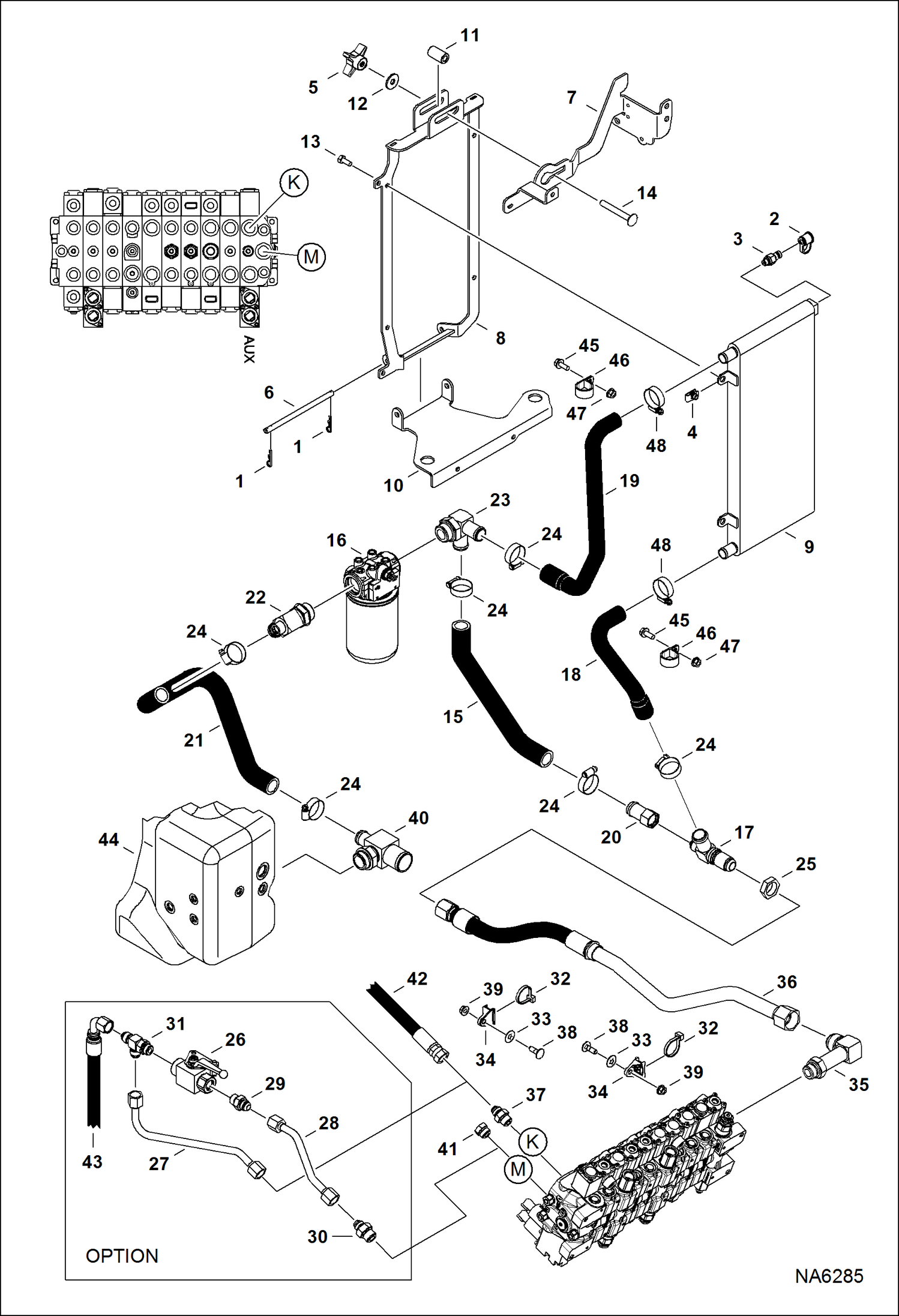

Запчасти Bobcat E26 HYDRAULIC CIRCUITRY (Cooler/Filter) HYDRAULIC SYSTEM

1

1306637

CLIP

2

6630367

CAP

3

6658103

COUPLER

4

6676169

NUT

5

7167576

NUT, WING

6

7174835

PIN

7

7189004

MOUNT, RADIATOR

8

7190947

MOUNT

9

7193014

EXCHANGER, OIL COOLER

10

7194800

MOUNT, RADIATOR

11

7204016

SPACER

12

17EM100

WASHER

13

1CM820

BOLT

14

33CM1080

BOLT

15

7211827

HOSE, HYD FORMED Was 7188827 - C

16

7188836

FILTER, OIL HYD ASSY See Illustration HYDRAULIC OIL FILTER/ NA6101

17

7188877

FITTING, HYD CONNECTOR

18

7211825

HOSE, HYD FORMED Was 7206963 - C

19

7211826

HOSE, HYD FORMED Was 7189019 - C

20

7189205

VALVE, BUILDUP

21

7191285

HOSE, HYD FORMED

22

7193576

FITTING

22

79K16

O RING 10

23

7193577

FITTING, HYD TEE

23

79K16

O RING 10

24

42HL150

CLAMP, HOSE

25

86F8

NUT 5

26

6693507

VALVE, BALL See Illustration SELECTOR VALVE ASSY/ NA2306

27

7189256

TUBELINE, HYD

28

7189258

TUBELINE, HYD

29

15KB0808

FITTING, HYD CONNECTOR

29

79K8

O RING 10

30

15KB0808

FITTING, HYD CONNECTOR

30

79K8

O RING 10

31

21KB0808

FTG HYD STRAIGHT TEE

31

79K8

O RING 10

32

6624289

STRAP, TIE

33

6675859

RETAINER

34

6678818

MOUNT

35

7194438

FITTING, HYD ELBOW

35

79K20

O RING 10

36

7194441

TUBELINE, HYD

37

15KB0808

FITTING, HYD CONNECTOR

37

79K8

O RING 10

38

33CM825

BOLT

39

43DM8

NUT

40

7191282

FITTING, HYD TEE See Illustration HYDRAULIC CIRCUITRY/ NA6286

40

79K16

O RING 10

41

24K6

FITTING

41

79K8

O RING 10

42

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA5590

43

HOSE, HYD See Illustration HYDRAULIC CIRCUITRY/ NA5590

44

TANK, HYD See Illustration HYDRAULIC CIRCUITRY/ NA6286

45

29CM820

SCREW

46

30H57

CLAMP

47

51DM8

NUT

48

7225831

CLAMP, HOSE Was 42HL150 - A
