Запчасти Bobcat E26 INSULATION MAIN FRAME

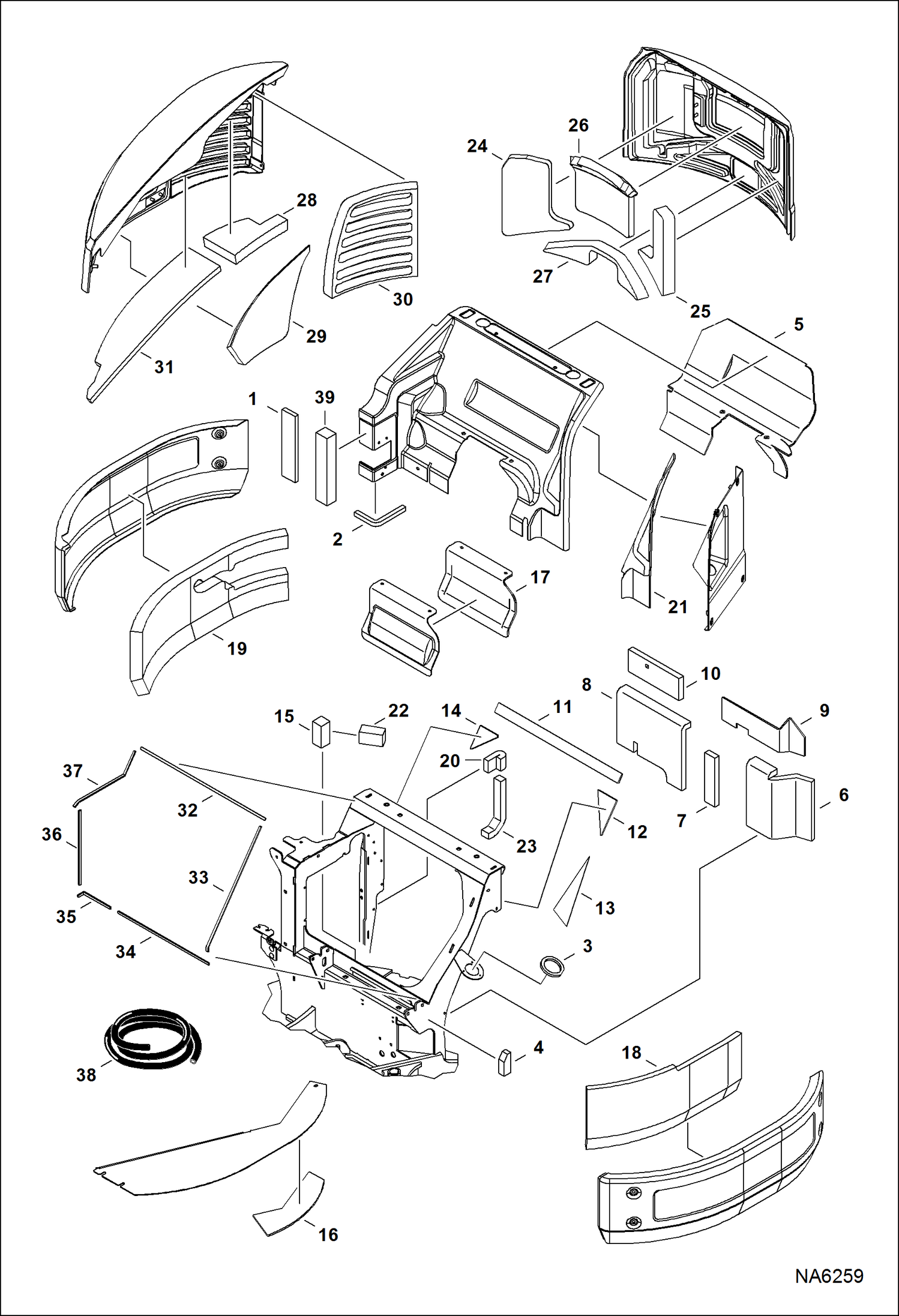

Схема запчастей Bobcat E26 - INSULATION MAIN FRAME

Артикул

Название

Примечание

Количество

1

7156375

SEAL, RH PANEL

2

7175504

SEAL, ENG

3

7176171

INSULATION, PANEL LH

4

7180569

INSULATION, PANEL ENG

5

7180570

INSULATION, ENG

6

7180571

INSULATION, UPPERSTRUCTURE

7

7180572

INSULATION, UPPERSTRUCTURE

8

7180573

INSULATION, UPPERSTRUCTURE

9

7180574

INSULATION, UPPERSTRUCTURE

10

7180575

INSULATION, UPPERSTRUCTURE

11

7180576

INSULATION, UPPERSTRUCTURE

12

7180577

INSULATION, UPPERSTRUCTURE

13

7180578

INSULATION, UPPERSTRUCTURE

14

7180579

INSULATION, UPPERSTRUCTURE

15

7181884

INSULATION, BLOCK if equipped

16

7185878

INSULATION, FLOOR

17

7185879

INSULATION, PANEL ENG

18

7185881

INSULATION, SIDE

19

7206586

INSULATION, SIDE

20

7185883

INSULATION, RADIATOR

21

7196872

INSULATION, PANEL ENG

22

7196875

INSULATION, COUNTERWEIGHT

23

7196876

INSULATION, UPPERSTRUCTURE

24

7200417

INSULATION, DOOR REAR

25

7200418

INSULATION, DOOR REAR

26

7200419

INSULATION, DOOR REAR

27

7200420

INSULATION, DOOR REAR

28

7200421

INSULATION, COVER RH

29

7200422

INSULATION, COVER RH

30

7200423

INSULATION, COVER RH

31

7200518

INSULATION, COVER RH

32

SEAL, COVER NLA - 717 mm (28.22'') long - Order Ref. 38

33

SEAL, COVER NLA - 564,5 mm (22.22'') long - Order Ref. 38

34

SEAL, COVER NLA - 525 mm (20.67'') long - Order Ref. 38

35

SEAL, COVER NLA - 191,9 mm (7.56'') long - Order Ref. 38

36

SEAL, COVER NLA - 373,1 mm (14.69'') long - Order Ref. 38

37

SEAL, COVER NLA - 403,2 mm (15.87'') long - Order Ref. 38

38

7135394

SEAL BULK bulk - sold per foot

Выбрано товаров: 38
