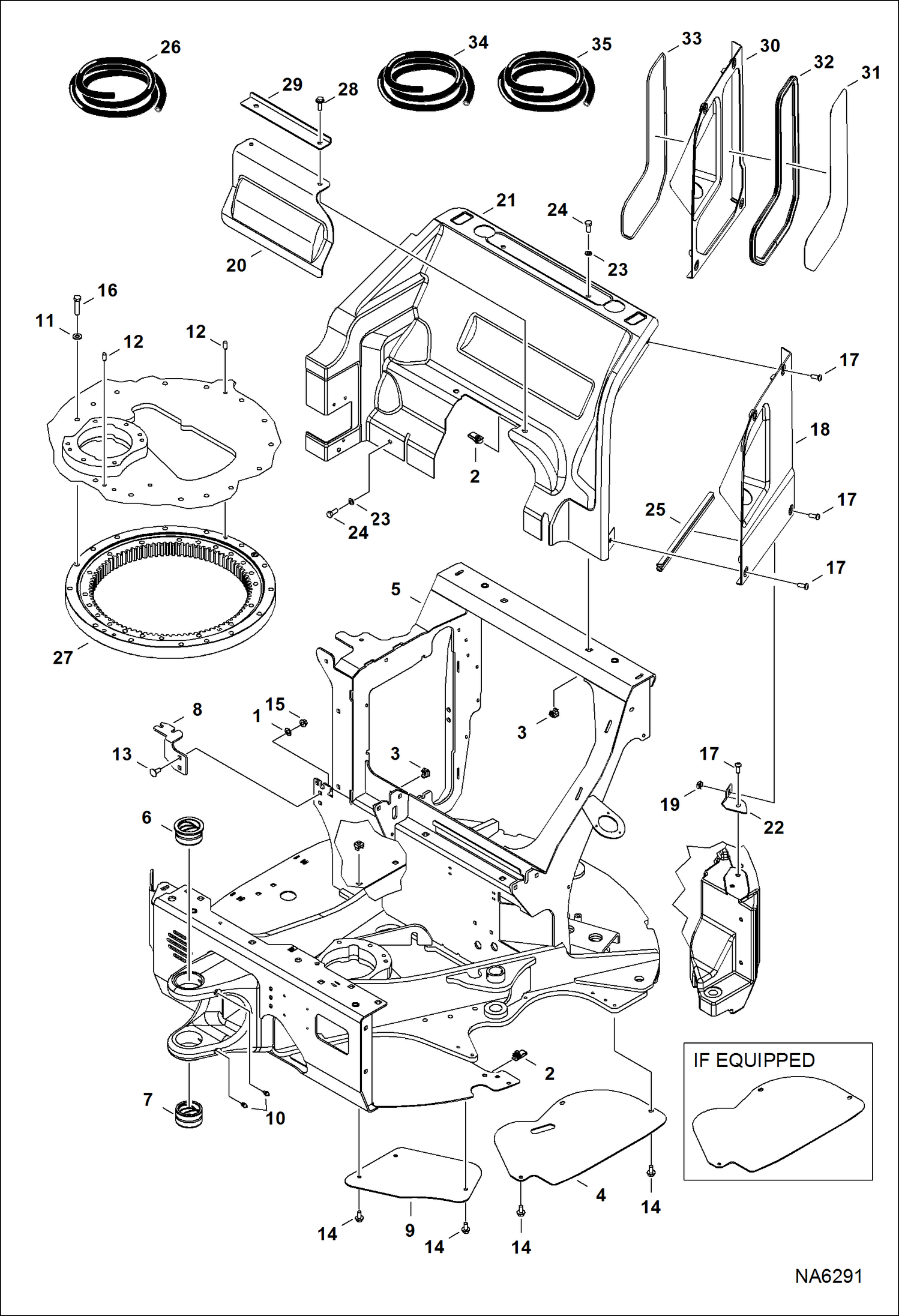

Запчасти Bobcat E26 UPPERSTRUCTURE MAIN FRAME

1

6674264

RETAINER NUT

2

6675722

NUT

3

7155413

NUT

4

7158972

COVER

5

UPPERSTRUCTURE See Illustration HYDRAULIC CIRCUITRY/ NA5588 NLA - Order 7165353 & (1) each of 7208574, 7208563 and 7208577 hoses due to slew motor position change

5

7165353

UPPERSTRUCTURE

6

7183441

BUSHING, PIVOT

7

7191805

BUSHING, PIVOT

8

7193426

MOUNT, FILTER

9

7199851

COVER

10

10H25

FITTING, GREASE 5

11

18EM1224

WASHER

12

23JM1024

PIN HARDENED PARALLE

13

33CM1025

BOLT

14

29CM1020

BOLT

15

43DM10

NUT

16

55CM1250

SCREW

17

6817769

BOLT

18

7148574

COVER, LH W/O screen

19

7155411

NUT

20

7158979

PANEL, ACCESS

21

7179422

PANEL, ENG

22

7189449

BRACKET, COVER

23

15EM100

WASHER

24

1CM1025

BOLT

25

SEAL NLA - 320 mm (12.6'') long - Order Ref. 26

26

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

27

RING, SLEW See Illustration UNDERCARRIAGE/ NA6065

28

29CM1030

BOLT

29

7198650

PLATE, BRACE

30

7203701

COVER, HVAC W/ screen for HVAC

31

7204208

SCREEN

32

CHANNEL, LOCKING NLA - 1525 mm (60'') long - Order Ref. 34

33

STRIP, FILLER NLA - 1525 mm (60'') long - Order Ref. 35

34

6691059

CORD, BULK CHANNEL LOCKING /FT bulk - sold per foot

35

6691060

CORD, BULK STRIP FILLER /FT bulk - sold per foot
